File Detail parts/4197.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/4197.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

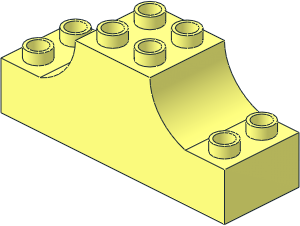

Duplo Brick 2 x 6 x 2 with Raised Central 2 x 2 Section with Curved Sides

File Header:

0 Duplo Brick  2 x  6 x  2 with Raised Central  2 x  2 Section with Curved Sides
0 Name: 4197.dat
0 Author: Tim Lampmann [L4mpi]
0 !LDRAW_ORG Part UPDATE 2023-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Brick

0 !HISTORY 2021-03-13 [RainbowDolphin] Made outer curved surfaces hi-res
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4197s01.dat

1 16 100 0 -40 -60 0 0 0 0 51.7 0 1 0 48\3-16ndis.dat
1 16 -100 0 -40 60 0 0 0 0 51.7 0 1 0 48\3-16ndis.dat
4 16 40 51.7 -40 40 0 -40 -40 0 -40 -40 51.7 -40
4 16 120 96 -40 40 51.7 -40 -40 51.7 -40 -120 96 -40
4 16 -77.038 47.76563 -40 -78 48 -40 -120 96 -40 -40 51.7 -40
3 16 -78 48 -40 -120 48 -40 -120 96 -40
3 16 78 48 -40 120 96 -40 120 48 -40
4 16 120 96 -40 78 48 -40 77.038 47.76563 -40 40 51.7 -40

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Tim Lampmann [L4mpi]

initially submitted the part.

2020-01-08 16:25:01

Steffen [Steffen]

posted a vote of Hold.

2020-01-23 12:50:02

the origin needs to be at the top surface

Tim Lampmann [L4mpi]

submitted a new version of the part.

2020-01-23 21:25:01

My bad...

Existing certification-votes were deleted.

Tim Lampmann [L4mpi]

submitted a new version of the part.

2020-10-18 18:35:01

Takeshi Takahashi [RainbowDolphin]

made the following comment.

2020-10-25 13:45:01

Could you make a subfile "without front face" for creating patterns?

Tim Lampmann [L4mpi]

submitted a new version of the part.

2020-10-25 17:20:01

Sure

Existing certification-votes were deleted.

Takeshi Takahashi [RainbowDolphin]

submitted a new version of the part.

2021-03-13 13:55:02

The concave curves are changed to hi-res corresponding with subpart

Magnus Forsberg [MagFors]

posted a vote of Certify.

2021-03-30 16:05:01

Do we need to describe how they are Curved? Concave?
Is there a similar part with a convex curved surface?
Is there a difference between Rounded and Curved?

Gerald Lasser [GeraldLasser]

posted a vote of Certify.

2021-07-07 08:20:01

DEscription could be polished as Magnus mentioned

Chris Dee [cwdee]

made the following comment.

2021-07-08 06:15:01

Definitely not 'curved ends'. How about 'Duplo Brick 2 x 6 x 2 with Raised Central 2 x 2 Section with Curved Sides'?

Magnus Forsberg [MagFors]

posted a vote of Certify.

2021-07-08 15:35:01

Works for me.

Takeshi Takahashi [RainbowDolphin]

made the following comment.

2021-07-08 15:45:02

Thanks Chris.
Please change the part name as you suggested.

Takeshi Takahashi [RainbowDolphin]

made the following comment.

2022-03-05 13:00:01

@Admin: Please add this history line to comply with CC-BY regulations
0 !HISTORY 2021-03-13 [RainbowDolphin] Made outer curved surfaces hi-res

[PTadmin]

edited the part header.

2022-03-05 13:40:01

Orion Pobursky [OrionP]

edited the part header.

2023-08-15 21:17:07

Header Edits

description:
Duplo Brick 2 x 6 x 2 with Raised Central 2 x 2 Section with Curved Sides
to
Duplo Brick 2 x 6 x 2 with Raised Central 2 x 2 Section with Curved Sides

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2023-08-15 21:18:05

Orion Pobursky [OrionP]

2023-08-25 01:30:51

Release 2023-04

Creative Commons Attribution License information

This part is copyright © Tim Lampmann
Licensed under CC BY 4.0

Edits:
LDraw.org Parts Tracker, Takeshi Takahashi, Orion Pobursky,
