Official File parts/42205.dat
Part Attributes:
File Header:

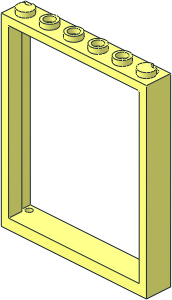

0 Door 1 x 6 x 6 Frame
0 Name: 42205.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2025-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-01-10 [GeraldLasser] added oriented corner studs
0 !HISTORY 2025-01-20 [OrionP] Official Update 2025-01
Show contents
0 // Doorstep / Sill
1 16 0 140 0 1 0 0 0 -1 0 0 0 1 stug3-1x5.dat
4 16 -60 144 -10 -56 144 -6 56 144 -6 60 144 -10
4 16 -60 144 10 60 144 10 49.5 144 7.5 -49.5 144 7.5
4 16 49.7192 144 6 -49.7192 144 6 -49.5 144 7.5 49.5 144 7.5
1 16 0 142 6 49.7192 0 0 0 0 -2 0 1 0 rect2p.dat
0 BFC INVERTNEXT
1 16 0 142 6 0 0 -56 -2 0 0 0 -12 0 box3u2p.dat
1 16 52 136 0 1 0 0 0 1 0 0 0 1 s\42205s02.dat
1 16 -52 136 0 -1 0 0 0 1 0 0 0 1 s\42205s02.dat
4 16 -49.5 140 2.5 49.5 140 2.5 56 140 -6 -56 140 -6
4 16 -49.5 140 2.5 -49.5 140 5 49.4999 140 5 49.5 140 2.5
4 16 49.6903 140 5.9568 49.4999 140 5 -49.5 140 5 -49.6903 140 5.9567
4 16 -49.7192 140 6 49.7192 140 6 49.6903 140 5.9568 -49.6903 140 5.9567
2 24 -60 144 10 60 144 10
2 24 60 144 -10 -60 144 -10
4 16 -56 136 10 56 136 10 60 144 10 -60 144 10
4 16 54 136 -10 -54 136 -10 -60 144 -10 60 144 -10
4 16 54 136 1 49.5 136 2.5 -49.5 136 2.5 -54 136 1
4 16 -56 136 10 -49.5 136 7.5 49.5 136 7.5 56 136 10
4 16 -49.5 136 2.5 49.5 136 2.5 49.5 136 5 -49.5 136 5
4 16 -49.5 136 7.5 -49.5 136 5 49.5 136 5 49.5 136 7.5
4 16 -54 136 -10 54 136 -10 54 136 1 -54 136 1
2 24 -54 136 -10 54 136 -10
0 // Side Left
1 16 -54 71 -4.5 0 -1 0 0 0 65 -5.5 0 0 rect.dat
4 16 -56 4 1 -54 6 1 -54 136 1 -56 136 1
1 16 -56 70 5.5 0 -1 0 0 0 66 -4.5 0 0 rect.dat
4 16 -60 144 -10 -54 136 -10 -54 6 -10 -60 0 -10
4 16 -60 0 10 -56 4 10 -56 136 10 -60 144 10
1 16 -60 72 0 0 1 0 0 0 72 -10 0 0 rect.dat
0 // Side Right
1 16 54 71 -4.5 0 1 0 0 0 65 -5.5 0 0 rect.dat
4 16 54 136 1 54 6 1 56 4 1 56 136 1
1 16 56 70 5.5 0 1 0 0 0 66 -4.5 0 0 rect.dat
4 16 54 6 -10 54 136 -10 60 144 -10 60 0 -10
4 16 56 136 10 56 4 10 60 0 10 60 144 10
1 16 60 72 0 0 -1 0 0 0 72 -10 0 0 rect.dat
0 // Top
1 16 0 6 -4.5 -54 0 0 0 -1 0 0 0 5.5 rect2p.dat
4 16 56 4 1 54 6 1 -54 6 1 -56 4 1
2 24 -56 4 1 56 4 1
4 16 56 4 10 49.5 4 7.5 -49.5 4 7.5 -56 4 10
4 16 -49.5 4 2.5 49.5 4 2.5 56 4 1 -56 4 1
4 16 49.5 4 2.5 -49.5 4 2.5 -49.5 4 5 49.5 4 5
4 16 49.5 4 7.5 49.5 4 5 -49.5 4 5 -49.5 4 7.5
2 24 56 4 10 -56 4 10
1 16 50 0 0 1 0 0 0 1 0 0 0 1 s\42205s01.dat
1 16 -50 0 0 -1 0 0 0 1 0 0 0 1 s\42205s01.dat
4 16 56 4 10 -56 4 10 -60 0 10 60 0 10
4 16 54 6 -10 60 0 -10 -60 0 -10 -54 6 -10
2 24 60 0 -10 -60 0 -10
2 24 -60 0 10 60 0 10
4 16 -49.5 0 7.5 -44 0 6 44 0 6 49.5 0 7.5
4 16 -44 0 0 44 0 0 44 0 6 -44 0 6
4 16 44 0 0 -44 0 0 -44 0 -6 44 0 -6
4 16 60 0 -10 44 0 -6 -44 0 -6 -60 0 -10
4 16 -49.5 0 7.5 49.5 0 7.5 60 0 10 -60 0 10
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug2-1x4.dat
2 24 56 136 10 -56 136 10
1 16 50 0 0 1 0 0 0 1 0 0 0 1 studhr.dat
1 16 -50 0 0 1 0 0 0 1 0 0 0 1 studhl.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2019-07-15 19:40:01
missed a line
2019-07-31 12:50:01
Missing an edge line, and one triangle could be moved to the subfile
2 4 2 0 1 4 0 1
3 4 -1.7678 8 6.7678 -2.2808 8 6 -2.5 8 7.5
2 4 2 0 1 4 0 1
3 4 -1.7678 8 6.7678 -2.2808 8 6 -2.5 8 7.5
2019-08-04 09:30:01
Sorry,
Line 39: Incorrect use of command for comment lines. 0 //Side Left
Looks like a Space is missing
Line 39: Incorrect use of command for comment lines. 0 //Side Left
Looks like a Space is missing
corrected comment
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2019-08-18 16:30:01
2020-09-01 06:50:02
2021-10-08 10:40:01
Could use box3u2p primitive.
2022-12-19 22:55:01
2023-06-23 22:50:26
added orientd corner studs
2025-01-11 11:03:37
2025-01-11 11:05:55
* Could use a box for:
4 16 -54 136 -10 54 136 -10 54 136 1 -54 136 1
4 16 -54 136 1 -54 6 1 -54 6 -10 -54 136 -10
4 16 54 136 1 54 6 1 54 6 -10 54 136 -10
4 16 54 6 1 54 6 -10 -54 6 -10 -54 6 1
4 16 -54 136 -10 54 136 -10 54 136 1 -54 136 1
4 16 -54 136 1 -54 6 1 -54 6 -10 -54 136 -10
4 16 54 136 1 54 6 1 54 6 -10 54 136 -10
4 16 54 6 1 54 6 -10 -54 6 -10 -54 6 1
2025-01-12 17:31:11
2025-01-18 23:03:48
2025-01-20 03:34:50
Release 2025-01
