Official File parts/43221.dat
Part Attributes:
File Header:

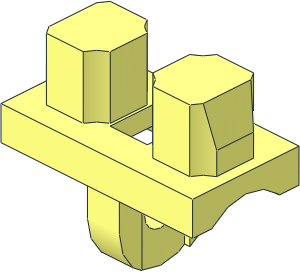

0 Minifig Hips with Spring Holes
0 Name: 43221.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS basketball, NBA
0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10
Show contents
