Official File parts/73261.dat
Part Attributes:
External Sites:
External site data provided by Rebrickable.com View on Rebrickable View on BrickLink View on BrickOwl

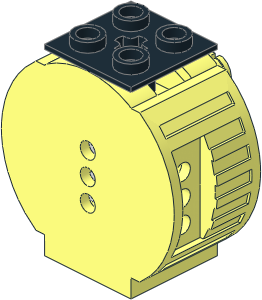

Electric 4.5V 3 C-Cell Battery Box Polarity Switch 2 x 4
File Header:
0 Electric 4.5V 3 C-Cell Battery Box Polarity Switch 2 x 4 0 Name: 73261.dat 0 Author: Rene Rechthaler [Blechtaler] 0 !LDRAW_ORG Shortcut UPDATE 2024-10 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 !HELP PLACE front plugs (normally 70423, other ones fit too) 0 !HELP 1 16 32 -38 -8 0 0 1 1 0 0 0 1 0 70423.dat 0 !HELP 1 16 -32 -38 -8 0 0 -1 1 0 0 0 1 0 70423.dat 0 !HELP 1 16 0 -38 -20 0 1 0 1 0 0 0 0 -1 70423.dat 0 !HELP PLACE plugs 70423 (for the back connector you need 70423) 0 !HELP 1 16 0 -45.5 29.5 1 0 0 0 0 1 0 -1 0 70423.dat 0 !HELP 1 16 0 -30.5 29.5 1 0 0 0 0 -1 0 -1 0 70423.dat 0 BFC CERTIFY CCW 0 !KEYWORDS 4.5V, BrickLink 4352, Rebrickable 4352, Set 1032, Set 1034, Set 740 0 !KEYWORDS Set 8050, Set 8054, Set 8055, Set 8700, Set 9605 0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 4352c01.dat 1 0 0 -38 0 1 0 0 0 1 0 0 0 1 4354.dat
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Rene Rechthaler [Blechtaler]
Part Header Editor
initially submitted the part.
2022-12-31 20:20:02
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2022-12-31 22:00:01
Why subfiles?
If I'm reading this correct these are four separate parts in an assembly.
Max Martin Richter [MMR1988]
Senior Part Reviewer
posted a vote of Hold.
2022-12-31 23:50:01
Correct. This must be a shortcut.
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2023-01-01 10:45:02
No, this only comes as one glued part. (Im not 100% sure about the number though, 4350 and 4351 are clearly marked)
Do we need -f1/-f2 versions with the Lever moved? At the top of the s01 there are all versions to check if they fit.
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2023-01-01 11:10:01
Glued or not, impossible to take apart, doesn't matter. This is an assembly of many parts. All current subparts are parts, with a own design.
Please ask Admin for a set of u-numbers and renumbering.
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2023-01-30 22:10:01
Still no response from the admins regarding the u-numbers...
Rene Rechthaler [Blechtaler]
Part Header Editor
submitted a new version of the part.
2023-03-21 20:40:09
fixed the links to the renumbered parts
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Hold.
2023-03-21 21:12:16
Please revert this part to use the old subfile and I will rename them accordingly.
Orion Pobursky [OrionP]
Part Library Admin
renamed the part.
2023-03-22 00:19:10
"4352.dat" to "73261.dat"
Orion Pobursky [OrionP]
Part Library Admin
submitted a new version of the part.
2023-03-22 00:39:34
Update to correct parts
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2023-03-25 13:33:52
Wrong part type, this too is a shortcut.

I would prefer an assembly shortcut of the body, without the lever, making inlining and animation easier.

And I think they should all be c01, and then use the -f1 to -f3 suffix, like the pneu valves do.
But better, do we really need the lever left/right assemblies?
How many degrees is the lever rotated?
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2023-03-25 20:47:39
this has been a c01 but Orion renamed it
Orion Pobursky [OrionP]
Part Library Admin
made the following comment.
2023-03-25 21:05:17
This is not a c01, this is the 73261 is the number for the assembly. As far as f1 etc. I'm not sure I agree but there is precedence.
Rene Rechthaler [Blechtaler]
Part Header Editor
submitted a new version of the part.
2023-03-27 08:51:45
changed parttype to shortcut
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2023-04-06 15:28:43
The "help" info is not correct. Wrong partnumber.
It would be better as Help info, than comments in the code.

And as I already, I would prefer a body assembly, with an added lever.
73261 is 4352c01 (body assembled) + 4354 (lever).
Rene Rechthaler [Blechtaler]
Part Header Editor
submitted a new version of the part.
2023-06-20 19:17:10
with the case shortcut
Rene Rechthaler [Blechtaler]
Part Header Editor
submitted a new version of the part.
2023-10-15 14:29:13
added the !HELP for the rear plugs
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify.
2024-03-30 15:25:15
Willy Tschager [Holly-Wood]
Senior Part Reviewer
edited the part header.
2024-05-27 06:05:46
Header Edits

description:
Electric 4.5V 3 C-Cell Battery Box Polarity Switch 2 x 4
to
Electric 4.5V 3 C-Cell Battery Box Polarity Switch 2 x 4

Comment:
Added blanks to description
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify.
2024-05-27 06:15:22
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2024-11-27 20:20:45
Orion Pobursky [OrionP]
Part Library Admin
2024-12-01 00:36:14
Release 2024-10
