0 Constraction Rahkshi Kraata Holder
0 Name: 44139.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP ball socket connection:
0 !HELP 1 38 0 -40 -60 -1 0 0 0 1 0 0 0 -1 32174.dat
0 !HELP back stud connection:
0 !HELP 1 4 0 -10 20 1 0 0 0 1 0 0 0 1 6141.dat
0 BFC CERTIFY CCW
0 !CATEGORY Constraction
0 !KEYWORDS Armor, Armour, bionicle
0 !HISTORY 2023-03-12 [SwampKryakwa] Fixed balljoint size
0 !HISTORY 2025-05-03 [notmaster] corrected origin fixed balljoint sized t juncs edgelines etcShow file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\44139s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\44139s01.dat
0 // Balljoint
1 16 0 -40 -40 0 12.81 0 0 0 12.81 12.81 0 0 8-8sphe.dat
4 16 5.2208 -42.7789 -30.5 5.2208 -42.7789 -9 -5.2208 -42.7789 -9 -5.2208 -42.7789 -30.5
0 // Vertical Wall and Pinhole Connector
4 16 5.2208 -42.7789 -9 8 -42.7789 -3.5 -8 -42.7789 -3.5 -5.2208 -42.7789 -9
2 24 8 -42.7789 -3.5 -8 -42.7789 -3.5
3 16 25 -19.15 -9 0 -34 -9 -25 -19.15 -9
1 16 0 -16.575 -9 0 0 25 2.575 0 0 0 1 0 rect2p.dat
4 16 10 -10 -9 25 -14 -9 -25 -14 -9 -10 -10 -9
4 16 -8 -42.7789 -3.5 8 -42.7789 -3.5 9.5675 -42.2475 -3.5 -9.5675 -42.2475 -3.5
4 16 9.5675 -42.2475 -3.5 6 -38 -3.5 -6 -38 -3.5 -9.5675 -42.2475 -3.5
4 16 -6 -38 -3.5 6 -38 -3.5 6.5 -32 -3.5 -6.5 -32 -3.5
4 16 -6.5 -32 -3.5 6.5 -32 -3.5 5.5 -14 -3.5 -5.5 -14 -3.5
0 BFC INVERTNEXT
1 16 0 -14 2 0 0 -5.5 0 4 0 5.5 0 0 box5-4a.dat
3 16 5.5 -14 8.5 0 -14 14 -5.56 -14 8.5
4 16 5.5 -14 7.5 5.5 -14 8.5 -5.56 -14 8.5 -5.5 -14 7.5
3 16 -10 -14 29.5 0 -14 26 10 -14 29.5
2 24 -5.5 -14 7.5 5.5 -14 7.5
0 BFC INVERTNEXT
1 16 0 -10 20 0 0 6 0 -4 0 6 0 0 4-4cylo.dat
1 16 0 -14 20 0 0 6 0 1 0 6 0 0 4-4ndis.dat
1 16 0 -10 20 0 0 6 0 -1 0 6 0 0 4-4ndis.dat
3 16 10 -10 9 -10 -10 9 0 -10 14
3 16 10 -10 29.5 0 -10 26 -10 -10 29.5
0 // Peghole
1 16 0 0 0 0 1 0 0 0 1 1 0 0 connhole.dat
1 16 -10 0 0 0 20 0 0 0 9 9 0 0 2-4cylo.dat
1 16 10 0 0 0 -1 0 0 0 -9 9 0 0 2-4ndis.dat
1 16 -10 0 0 0 1 0 0 0 -9 9 0 0 2-4ndis.dat
1 16 0 -4.5 -9 0 0 10 4.5 0 0 0 1 0 rect2p.dat
1 16 0 -4.5 9 0 0 -10 4.5 0 0 0 -1 0 rect2p.dat
1 16 0 -10 0 0 0 -10 0 1 0 9 0 0 box4o8a.dat
1 16 0 -10 0 10 0 0 0 1 0 0 0 9 recte3.dat
0 // Rounded Area
0 BFC INVERTNEXT
1 16 10 60 29.5 0 -20 0 -70 0 0 0 0 70 48\1-8cyli.dat
1 16 10 60 29.5 0 -20 0 -74 0 0 0 0 74 48\5-48cyli.dat
1 16 0 10.503 80.4112 10 0 0 0 -1 0 0 0 -1.4142 rect3.dat
1 16 0 6.43305 81.8254 -10 0 0 0 0 -4.06995 0 -1 0 rect.dat
4 16 14 -.2984 78.7938 10 2.3631 81.8254 -10 2.3631 81.8254 -14 -.2984 78.7938
1 16 0 -.2984 77.2813 14 0 0 0 1 0 0 0 1.5125 rect2p.dat
4 16 -14 -.2984 75.7688 -10 1.2884 74.5512 10 1.2884 74.5512 14 -.2984 75.7688
2 24 10 1.2884 74.5512 -10 1.2884 74.5512Status
Errors Found (CHN)
Current Votes:
Chris Böhnke [KnightOfTarenta]
Peter Blomberg [WUIt]
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Gerald Lasser [GeraldLasser]
initially submitted the part.
2020-12-08 11:25:02
My first Bionlicle part, origin is at the ball joint, alright?
Gerald Lasser [GeraldLasser]
submitted a new version of the part (all votes reset).
2020-12-08 11:25:02
Magnus Forsberg [MagFors]
posted a vote of Hold
2020-12-08 22:05:01
Or you could have it in the connhole prim.
The radius of the ball is allways 12.81 ldu. Don't ask me why.
Why is part of this surface placed in the subfile?
1 16 10 100 69.5 0 -20 0 -74 0 0 0 0 74 48\5-48cyli.dat
The radius of the ball is allways 12.81 ldu. Don't ask me why.
Why is part of this surface placed in the subfile?
1 16 10 100 69.5 0 -20 0 -74 0 0 0 0 74 48\5-48cyli.dat
Gerald Lasser [GeraldLasser]
made the following comment.
2020-12-08 23:35:01
I though as well about the connhole, but may be for positioning the ball joint is better.
concerning this:
1 16 10 100 69.5 0 -20 0 -74 0 0 0 0 74 48\5-48cyli.dat
I think you mean the two strips to the side of it, that's right can be in the main file, it is an editing artefact
concerning this:
1 16 10 100 69.5 0 -20 0 -74 0 0 0 0 74 48\5-48cyli.dat
I think you mean the two strips to the side of it, that's right can be in the main file, it is an editing artefact
Max Murtazin [SwampKryakwa]
submitted a new version of the part (all votes reset).
2023-03-12 00:27:14
Fixed balljoint size
Max Murtazin [SwampKryakwa]
posted a vote of Hold
2023-05-24 13:53:48
Missing outlines between ball joint and stem connecting it to rest of the part
Jeff Jones [notmaster]
made the following comment.
2024-07-02 09:57:15
i think origin should be at pin at bottom
Jeff Jones [notmaster]
made the following comment.
2024-07-02 12:41:53
also i ran tjunctionfinder on this and it found 97 t junctions
Jeff Jones [notmaster]
made the following comment.
2025-04-09 17:06:56
is the ball actually oval on the real part?
Jeff Jones [notmaster]
made the following comment.
2025-04-09 17:20:29
looking at pics it doesnt look oval
maybe swamp based it on a deformed version
maybe swamp based it on a deformed version
Jeff Jones [notmaster]
made the following comment.
2025-04-09 17:21:34
Jeff Jones [notmaster]
made the following comment.
2025-04-09 18:40:40
did a overhaul
https://justpaste.it/hqsxs
https://justpaste.it/77yi6
before i upload to pt just for some feedback :)
https://justpaste.it/hqsxs
https://justpaste.it/77yi6
before i upload to pt just for some feedback :)
Gerald Lasser [GeraldLasser]
made the following comment.
2025-04-10 08:58:09
what did you change?
The diameter of the sphere
position, anything else?
The diameter of the sphere
position, anything else?
Chris Böhnke [KnightOfTarenta]
edited the part header.
2025-04-10 08:58:36
Header Edits
keywords:
Armour, bionicle, Gukko, Guurahk, Jaller, Kurahk, Lerahk, Makuta, Panrahk, Shoudler Cover, Takanuva, Turahk, Vorahk
to
Armour, Gukko, Guurahk, Jaller, Kurahk, Lerahk, Makuta, Panrahk, Shoulder Cover, Takanuva, Turahk, Vorahk, bionicle
Jeff Jones [notmaster]
made the following comment.
2025-04-10 09:43:13
a t junc that cyli you said needed work anyways some edges thats it i think?
Rene Rechthaler [Blechtaler]
made the following comment.
2025-05-02 21:59:23
1 16 0 0 0 0 12.81 0 0 0 12 12.81 0 0 8-8sphe.dat
should be 12.81 in all directions
(and origin should be in the connhole, but add a !Help for the head and back hole)
should be 12.81 in all directions
(and origin should be in the connhole, but add a !Help for the head and back hole)
Jeff Jones [notmaster]
made the following comment.
2025-05-02 23:54:15
try to submit my changes but
it error saying meta thing
checked lines are history and help and keywords
it error saying meta thing
checked lines are history and help and keywords
Jeff Jones [notmaster]
made the following comment.
2025-05-03 09:24:39
44139.dat: Line 8, invalid META command or comment without //
44139.dat: Line 9, invalid META command or comment without //
44139.dat: Line 13, invalid META command or comment without //
44139.dat: Line 15, invalid META command or comment without //
44139.dat: Line 16, invalid META command or comment without //
maybe something wrong with the tracker :p
44139.dat: Line 9, invalid META command or comment without //
44139.dat: Line 13, invalid META command or comment without //
44139.dat: Line 15, invalid META command or comment without //
44139.dat: Line 16, invalid META command or comment without //
maybe something wrong with the tracker :p
Jeff Jones [notmaster]
submitted a new version of the part (all votes reset).
2025-05-03 09:45:55
had to remove the keywords history lines and help lines so that it would be uploaded
here what it was
0 // ball socket and back stud connection
0 !HELP 1 38 0 -40 -60 -1 0 0 0 1 0 0 0 -1 32174.dat
0 !HELP 1 4 0 -10 20 1 0 0 0 1 0 0 0 1 6141.dat
0 !KEYWORDS Armour, bionicle, Armor
0 !HISTORY 2023-03-12 [SwampKryakwa] Fixed balljoint size
0 !HISTORY 2025-05-03 [notmaster] corrected origin fixed balljoint sized t juncs edgelines etc
here what it was
0 // ball socket and back stud connection
0 !HELP 1 38 0 -40 -60 -1 0 0 0 1 0 0 0 -1 32174.dat
0 !HELP 1 4 0 -10 20 1 0 0 0 1 0 0 0 1 6141.dat
0 !KEYWORDS Armour, bionicle, Armor
0 !HISTORY 2023-03-12 [SwampKryakwa] Fixed balljoint size
0 !HISTORY 2025-05-03 [notmaster] corrected origin fixed balljoint sized t juncs edgelines etc
Jeff Jones [notmaster]
submitted a new version of the part (all votes reset).
2025-05-03 09:57:11
Jeff Jones [notmaster]
made the following comment.
2025-05-03 09:57:35
oh wait it was the helplines that tracker didnt like
Magnus Forsberg [MagFors]
made the following comment.
2025-05-03 12:08:05
You can't have a comment before the Help info.
Everything else should work.
Everything else should work.
Peter Blomberg [WUIt]
made the following comment.
2025-10-18 19:11:59
Please put back the help lines with this change to the "comment line":
0 !HELP Place ball socket and back stud connectors with e.g.
0 !HELP Place ball socket and back stud connectors with e.g.
Chris Böhnke [KnightOfTarenta]
edited the part header.
2025-10-18 19:20:10
Header Edits
help:
0 !HELP
to
0 !HELP ball socket connection:
0 !HELP 1 38 0 -40 -60 -1 0 0 0 1 0 0 0 -1 32174.dat
0 !HELP back stud connection:
0 !HELP 1 4 0 -10 20 1 0 0 0 1 0 0 0 1 6141.dat
hope that solves it.
Peter Blomberg [WUIt]
posted a vote of Certify
2025-10-18 20:03:42
Chris Böhnke [KnightOfTarenta]
posted a vote of Hold
2026-05-01 19:29:26
Missing the support rib for the ball joint:

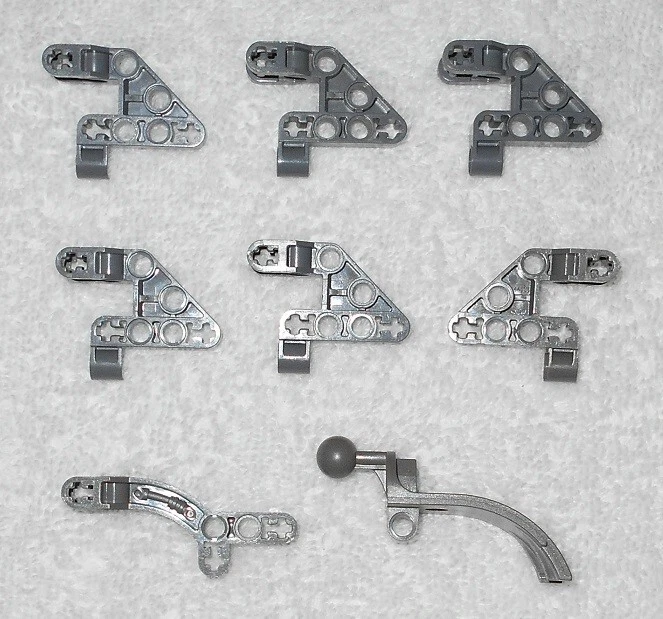

https://www.ebay.co.uk/itm/305481240107
