Official File parts/44148.dat
Part Attributes:
File Header:

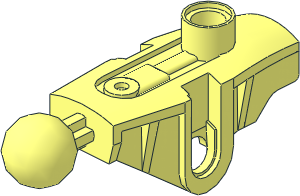

0 Technic Bionicle Rahkshi Upper Leg Section
0 Name: 44148.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-06-19 [GeraldLasser] Complete Rework, original by Michael Heidemann
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\44148s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\44148s01.dat
5 24 0 -6 110 0 -7.94 101.3198 -3.7584 -7.682 101.3198 3.7584 -7.682 101.3198
5 24 0 -7.94 101.3198 0 -9.4544 92.1512 -4.1484 -9.1792 92.1512 4.1484 -9.1792 92.1512
5 24 0 -9.4544 92.1512 0 -9.6355 89 -4.1484 -9.1792 92.1512 4.1484 -9.1792 92.1512
5 24 0 -10 20 0 -10 30 6.3639 -9.5216 20 -6.3639 -9.5216 20
1 16 0 -10 80 1 0 0 0 1 0 0 0 1 connhole.dat
0 // inside
2 24 0 -5.5 90 0 -3 107
3 16 -10 -4 23.5 0 -4 71 10 -4 23.5
1 16 0 -.75 107 0 0 -10 -.75 0 0 0 1 0 rect2p.dat
3 16 0 -3 107 -10 -1.5 107 10 -1.5 107
1 16 0 0 108.5 0 0 10 0 -1 0 1.5 0 0 rect.dat
3 16 -10 0 110 0 -6 110 10 0 110
1 16 0 2 23.5 0 0 10 -6 0 0 0 -1 0 rect.dat
4 16 -13 8 20 -10 8 23.5 10 8 23.5 13 8 20
2 24 13 8 20 -13 8 20
3 16 -13 8 20 13 8 20 0 -10 20
0 // Ball Joint
1 16 0 0 0 12.81 0 0 0 12.81 0 0 0 12.81 8-8sphe.dat
1 16 0 0 0 0 0 1 -1 0 0 0 -1 0 axlesphe.dat
1 16 0 0 12.8 0 0 -1 -1 0 0 0 7.2 0 axlehol8.dat
1 16 0 0 20 0 0 1 -1 0 0 0 -1 0 axlehol2.dat
1 16 0 0 20 0 0 1 -1 0 0 0 -1 0 axlehol9.dat
0 // Decorative Relief
4 16 1.8 -8.6 71.8 -1.8 -8.6 71.8 -1.8 -8.6 56 1.8 -8.6 56
2 24 -1.8 -8.6 71.3579 0 -8.6 71
2 24 0 -8.6 71 1.8 -8.6 71.3579
2 24 1.8 -8.6 56 -1.8 -8.6 56
4 16 -4 -8.8 56 4 -8.8 56 5.8 -7 56 -5.8 -7 56
2 24 -4 -8.8 56 4 -8.8 56
3 16 0 -8.8 45 4 -8.8 43 4 -8.8 56
4 16 4 -8.8 56 -4 -8.8 56 -4 -8.8 43 0 -8.8 45
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2008-12-28 00:34:09
Orientation mismatches with 32173.dat. As it is the only official part of this kind, its orientation should be preserved in other parts.
2009-12-12 16:04:06
rotated 90 degrees to match orientation of
32170.dat, 32173.dat.
However, sadly, the ball joints parts are not oriented systematically :-(((, for example:
- the very similar 47300.dat and 41670.dat are positioned opposingly.
- 32173.dat has correct orientation, but a weird origin
The current placement of this file is IMHO the best compromise.
It places the origin at the ball joint, so it can be easily used and rotated around it. The other ball joint parts do the same, except for 32173.dat. Orientation is like the majority of existing official parts.
Here is a test assembly:
1 46 0 0 0 1 0 0 0 1 0 0 0 1 47300.dat
1 46 0 0 0 1 0 0 0 1 0 0 0 1 41670.dat
1 35 0 0 0 1 0 0 0 1 0 0 0 1 32170.dat
1 36 0 0 0 1 0 0 0 1 0 0 0 1 32173.dat
1 15 0 0 0 1 0 0 0 1 0 0 0 1 44148.dat
Existing certification-votes were deleted.
32170.dat, 32173.dat.
However, sadly, the ball joints parts are not oriented systematically :-(((, for example:
- the very similar 47300.dat and 41670.dat are positioned opposingly.
- 32173.dat has correct orientation, but a weird origin
The current placement of this file is IMHO the best compromise.
It places the origin at the ball joint, so it can be easily used and rotated around it. The other ball joint parts do the same, except for 32173.dat. Orientation is like the majority of existing official parts.
Here is a test assembly:
1 46 0 0 0 1 0 0 0 1 0 0 0 1 47300.dat
1 46 0 0 0 1 0 0 0 1 0 0 0 1 41670.dat
1 35 0 0 0 1 0 0 0 1 0 0 0 1 32170.dat
1 36 0 0 0 1 0 0 0 1 0 0 0 1 32173.dat
1 15 0 0 0 1 0 0 0 1 0 0 0 1 44148.dat
Existing certification-votes were deleted.
- inlined s02 subpart which was only used 1 time
- adjusted to 90 degrees rotation of subpart s01
- adjusted to 90 degrees rotation of subpart s01
2012-04-30 13:15:05
this part probably needs renaming.
currently official files are named this way:
47300 = Technic Bionicle Leg 3 x 3 with 2 Ball Joints
41670 = Technic Bionicle Leg 4 x 4 with 2 Ball Joints
32170 = Technic Gear Rack Double with Ball Joint
32173 = Technic Liftarm 2 x 7 with 2 Ball Joints
currently official files are named this way:
47300 = Technic Bionicle Leg 3 x 3 with 2 Ball Joints
41670 = Technic Bionicle Leg 4 x 4 with 2 Ball Joints
32170 = Technic Gear Rack Double with Ball Joint
32173 = Technic Liftarm 2 x 7 with 2 Ball Joints
2012-04-30 13:15:05
there are 2 small edges missing at where the top connector
connects with the top surface.
connects with the top surface.
2019-05-01 02:15:01
2024-04-30 12:04:59
This needs reworking, some missing edges... and I am still looking for this part in my collection
2024-06-03 21:40:45
missing condlines too...
(i have that part)
(i have that part)
2024-06-10 11:42:39
I found the part again, will rework it
complete rework of our oldest one :-)
2024-06-20 19:36:34
2024-06-21 02:58:52
2024-06-21 22:06:26
2024-06-30 00:13:19
Release 2024-05
