Official File parts/44773.dat
Part Attributes:
File Header:

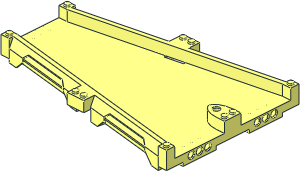

0 Car Track 24 x 16 x 2 V-Branching
0 Name: 44773.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\44773s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\44773s01.dat
0 // Central Connector at Split
1 16 220 12 0 0 20 0 0 0 -12 -20 0 0 box4-5a.dat
1 16 200 10 0 1 0 0 0 1 0 0 0 1 connhol3.dat
1 16 200 0 0 0 0 9 0 1 0 9 0 0 2-4ndis.dat
3 16 220 0 20 209 0 0 220 0 -20
1 16 200 18 0 0 0 3 0 -1 0 3 0 0 4-4ring2.dat
1 16 200 18 0 0 0 9 0 -14 0 9 0 0 4-4cylo.dat
1 16 220 16 0 0 1 0 0 0 -12 -16 0 0 rect3.dat
3 16 220 4 16 220 4 -16 209 4 0
3 16 -220 24 -60 182.5 24 0 -220 24 60
4 16 -220 24 -60 -220 24 60 -240 24 60 -240 24 -60
2 24 -240 24 60 -240 24 -60
1 16 230 0 0 -1 0 0 0 1 0 0 0 -1 stug-2x1.dat
1 16 230 0 150 -1 0 0 0 1 0 0 0 -1 stud.dat
1 16 230 0 -150 -1 0 0 0 1 0 0 0 -1 stud.dat
1 16 0 0 130 -1 0 0 0 1 0 0 0 -1 stug-1x2.dat
1 16 0 0 -130 -1 0 0 0 1 0 0 0 -1 stug-1x2.dat
1 16 -230 0 70 -1 0 0 0 1 0 0 0 -1 stud.dat
1 16 -230 0 -70 -1 0 0 0 1 0 0 0 -1 stud.dat
0 // Bottom
1 16 -240 0 0 1 0 0 0 1 0 0 0 1 s\42938s01.dat
3 16 -220 28 -60 -220 28 60 186 28 0
2 24 -220 28 60 -220 28 7.5
2 24 -220 28 -7.5 -220 28 -60
1 16 0 28 0 1 0 0 0 -5 0 0 0 1 stud4.dat
0 BFC INVERTNEXT
1 16 0 48 0 16 0 0 0 -20 0 0 0 16 box4.dat
4 16 20 48 20 16 48 16 -16 48 16 -20 48 20
4 16 -20 48 20 -16 48 16 -16 48 -16 -20 48 -20
4 16 -20 48 -20 -16 48 -16 16 48 -16 20 48 -20
4 16 20 48 -20 16 48 -16 16 48 16 20 48 20
1 16 0 48 0 20 0 0 0 -20 0 0 0 20 box4.dat
4 16 236 40 4 236 40 -4 236 28 -16 236 28 16
4 16 224 40 -16 224 40 16 224 28 16 224 28 -16
2 24 236 40 -4 236 40 4
2 24 224 40 16 224 40 -16
2 24 240 40 -40 240 40 40
2 24 220 40 40 220 40 -40
0 BFC INVERTNEXT
1 16 230 28 0 6 0 0 0 -24 0 0 0 16 box5-4a.dat
1 16 230 4 0 1 0 0 0 -9 0 0 0 1 stud3.dat
4 16 220 40 -40 220 28 -16 220 28 16 220 40 40
4 16 220 40 40 224 40 16 224 40 -16 220 40 -40
4 16 240 40 -40 236 40 -4 236 40 4 240 40 40
4 16 240 24 20 240 24 -20 240 40 -40 240 40 40
0 // Bottom Ridge
1 16 -120 28 0 -100 0 0 0 1 0 0 0 -7.5 box3u2p.dat
2 24 186 28 0 186 4 0
1 16 0 28 0 0 0 -16 0 1 0 7.5 0 0 box4-2p.dat
1 16 0 29 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 29 0 8 0 0 0 1 0 0 0 8 3-16edge.dat
1 16 0 29 0 8 0 0 0 1 0 0 0 -8 3-16edge.dat
1 16 0 29 0 -8 0 0 0 1 0 0 0 8 3-16edge.dat
1 16 0 29 0 -8 0 0 0 1 0 0 0 -8 3-16edge.dat
2 24 2.5145 29 7.5 2.5145 28 7.5
2 24 -2.5145 29 7.5 -2.5145 28 7.5
2 24 3.0616 29 7.3912 2.5145 29 7.5
2 24 -3.0616 29 7.3912 -2.5145 29 7.5
2 24 2.5145 29 -7.5 2.5145 28 -7.5
2 24 -2.5145 29 -7.5 -2.5145 28 -7.5
2 24 3.0616 29 -7.3912 2.5145 29 -7.5
2 24 -3.0616 29 -7.3912 -2.5145 29 -7.5
1 16 83.754701 28 0 63.7547 0 0 0 1 0 0 0 7.5 box3u5p.dat
4 16 147.509402 29 7.5 151.509402 29 7.5 151.509402 29 -7.5 147.509402 29 -7.5
3 16 151.509402 29 7.5 163.884112 29 0 151.509402 29 -7.5
3 16 -220 26.6088 -23.0616 -220 26 -20 -220 26.6088 -16.9384
3 16 -220 26.6088 -3.0616 -220 26 0 -220 26.6088 3.0616
3 16 -220 26 20 -220 26.6088 23.0616 -220 26.6088 16.9384
4 16 -220 26.6088 16.9384 -220 26.6088 23.0616 -220 28 25.1433 -220 28 14.8567
4 16 -220 26.6088 -3.0616 -220 26.6088 3.0616 -220 28.3432 5.6568 -220 28.3432 -5.6568
4 16 -220 29 -6.0957 -220 28.3432 -5.6568 -220 28.3432 5.6568 -220 29 6.0957
4 16 -220 26.6088 -23.0616 -220 26.6088 -16.9384 -220 28 -14.8567 -220 28 -25.1433
2 24 -224 40 -40 -220 40 -40
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
I authored this with the -new- s\42938s01.dat in mind (reduced by one line)
2020-10-11 10:20:01
2020-10-11 11:30:01
One edge line between the subfiles should be a condline.
In the Y there's some small bfc inverse primitives.
In the Y there's some small bfc inverse primitives.
corrected prims,
angle at hole corrected to better justify the edge line.
Closed con hole gaps at the ends
Existing certification-votes were deleted.
angle at hole corrected to better justify the edge line.
Closed con hole gaps at the ends
Existing certification-votes were deleted.
Missing edge:
2 4 -224 40 -40 -220 40 -40
the problem is IMHO in the subfiles, namely 42938s01.dat where it is present on one side but missing on the other
2 4 -224 40 -40 -220 40 -40
the problem is IMHO in the subfiles, namely 42938s01.dat where it is present on one side but missing on the other
2020-10-19 19:45:01
Yes, that's due to the modified subfile, I need to add it
added missing line
Existing certification-votes were deleted.
Existing certification-votes were deleted.
[PTadmin]
edited the part header.
2020-11-01 15:40:01
Line 68: Incorrect use of command for comment lines. 0 1 16 -120 28 0 0 0 -100 0 1 0 7.5 0 0 box4-2p.dat
removed comment line
Existing certification-votes were deleted.
Existing certification-votes were deleted.
moved two small mirrored lines into the subfile
2024-10-02 10:15:06
will the "5313c01 Track System Energizer Track 16 x 15 x 2" (BL name) also get done sometimes? thats the last missing track part...
2024-10-02 11:21:39
@Rene, I have this part and the corresponding car-base disassembled with me since a while.
It is on my to-do list, but not very high up.
It is on my to-do list, but not very high up.
2024-10-02 11:25:13
its ok, already built the single set that uses them with proxies...
2024-10-20 13:52:21
2024-10-27 01:48:33
Release 2024-09
