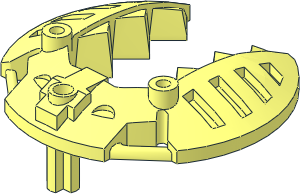

Constraction Shield 5 x 5 with Wrench with Teeth

File Header:

0 Constraction Shield  5 x  5 with Wrench with Teeth
0 Name: 44936.dat
0 Author: Santeri Piippo [arezey]
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Constraction Accessory
0 !KEYWORDS bionicle

0 !HISTORY 2024-05-17 [Holly-Wood] Added edges, sanded mesh, closed gaps, fixed overlap, unificator, regenerated conds, fixed T-junk
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
