Official File parts/4543.dat
Part Attributes:
File Header:

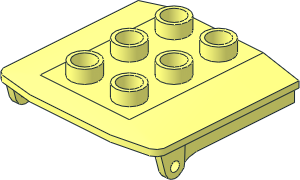

0 Duplo Train Cabin Roof
0 Name: 4543.dat
0 Author: Takeshi Takahashi [RainbowDolphin]
0 !LDRAW_ORG Part UPDATE 2025-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Pivot point Y=0 Z=0
0 !HELP Position relative the 4544 - Duplo Train Cabin 3.2 x 3 x 3 with Narrow Front Windows
0 !HELP 1 16 0 0 0 1 0 0 0 1 0 0 0 1 4544.dat
0 !HELP 1 47 0 -101.5 -49.1 1 0 0 0 1 0 0 0 1 4543.dat
0 BFC CERTIFY CCW
0 !CATEGORY Train
0 !HISTORY 2021-03-18 {LEGO/Unity Microgame} Original part shape
0 !HISTORY 2021-08-13 [RainbowDolphin] File preparation for LDraw Parts Tracker
0 !HISTORY 2025-04-27 [OrionP] Official Update 2025-04
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4543s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\4543s01.dat
1 16 20 -26.5 49.125 0 0 -1 0 2.75 0 1 0 0 stug7-1x3.dat
1 16 -20 -26.5 49.125 0 0 -1 0 2.75 0 1 0 0 stug7-1x3.dat
4 16 36 -13.75 -23.875 36 -19 -23.875 -36 -19 -23.875 -36 -13.75 -23.875
4 16 40 -22.5 105.125 40 -22.5 100.125 -40 -22.5 100.125 -40 -22.5 105.125
4 16 36 -13.75 -19.375 -36 -13.75 -19.375 -36 -16.5 -19.375 36 -16.5 -19.375
4 16 36 -13.75 -23.875 -36 -13.75 -23.875 -36 -13.75 -19.375 36 -13.75 -19.375
4 16 40 -26.5 -10.875 40 -26.5 109.125 -40 -26.5 109.125 -40 -26.5 -10.875
4 16 40 -26.5 -10.875 -40 -26.5 -10.875 -36 -19 -23.875 36 -19 -23.875
4 16 -64 -13.75 109.125 -40 -26.5 109.125 40 -26.5 109.125 64 -13.75 109.125
4 16 64 -13.75 105.125 -64 -13.75 105.125 -64 -13.75 109.125 64 -13.75 109.125
4 16 -64 -13.75 105.125 64 -13.75 105.125 40 -22.5 105.125 -40 -22.5 105.125
4 16 -40 -22.5 -8.875 -40 -22.5 96.125 40 -22.5 96.125 40 -22.5 -8.875
4 16 -36 -16.5 -19.375 -40 -22.5 -8.875 40 -22.5 -8.875 36 -16.5 -19.375
4 16 -54.625 -13.75 96.25 54.625 -13.75 96.25 40 -22.5 96.125 -40 -22.5 96.125
4 16 -54.625 -13.75 96.25 -64 -13.75 100.125 64 -13.75 100.125 54.625 -13.75 96.25
4 16 -64 -13.75 100.125 -40 -22.5 100.125 40 -22.5 100.125 64 -13.75 100.125
2 24 64 -13.75 109.125 -64 -13.75 109.125
5 24 54.625 -13.75 96.25 40 -22.5 96.125 -40 -22.5 96.125 54.625 -18.875 96.125
2 24 36 -13.75 -19.375 -36 -13.75 -19.375
5 24 -36 -13.75 -23.875 -36 -19 -23.875 -66 -19 -18.625 36 -13.75 -23.875
2 24 -36 -16.5 -19.375 36 -16.5 -19.375
2 24 36 -19 -23.875 -36 -19 -23.875
2 24 -64 -13.75 105.125 64 -13.75 105.125
5 24 36 -16.5 -19.375 36 -13.75 -19.375 57.483 -16.597 -16.891 -36 -13.75 -19.375
5 24 40 -22.5 105.125 40 -22.5 100.125 64 -16.75 100.125 -40 -22.5 100.125
2 24 40 -22.5 96.125 40 -22.5 -8.875
5 24 36 -19 -23.875 40 -26.5 -10.875 66 -19 -18.625 -40 -26.5 -10.875
2 24 -64 -13.75 109.125 -64 -13.75 105.125
2 24 40 -26.5 109.125 -40 -26.5 109.125
5 24 -40 -22.5 105.125 -40 -22.5 100.125 -64 -16.75 100.125 40 -22.5 105.125
5 24 40 -22.5 -8.875 36 -16.5 -19.375 -36 -16.5 -19.375 51.75 -19.5 -12.375
2 24 -64 -13.75 100.125 64 -13.75 100.125
2 24 40 -26.5 -10.875 40 -26.5 109.125
2 24 -40 -26.5 -10.875 40 -26.5 -10.875
5 24 36 -13.75 -23.875 36 -19 -23.875 -36 -19 -23.875 66 -19 -18.625
2 24 64 -13.75 109.125 64 -13.75 105.125
2 24 -40 -22.5 96.125 40 -22.5 96.125
2 24 -40 -22.5 105.125 40 -22.5 105.125
2 24 -36 -13.75 -23.875 36 -13.75 -23.875
5 24 -36 -16.5 -19.375 -36 -13.75 -19.375 -57.483 -16.597 -16.891 36 -16.5 -19.375
5 24 -40 -22.5 -8.875 -36 -16.5 -19.375 40 -22.5 -8.875 -51.75 -19.5 -12.375
5 24 -54.625 -13.75 96.25 -40 -22.5 96.125 54.625 -13.75 96.25 -54.625 -18.875 96.125
2 24 40 -22.5 100.125 -40 -22.5 100.125
2 24 40 -22.5 -8.875 -40 -22.5 -8.875
2 24 54.625 -13.75 96.25 -54.625 -13.75 96.25
5 24 -36 -19 -23.875 -40 -26.5 -10.875 36 -19 -23.875 -66 -19 -18.625
2 24 -40 -22.5 96.125 -40 -22.5 -8.875
2 24 -40 -26.5 -10.875 -40 -26.5 109.125
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Can more primitives be used??
Yes, the holes in the hinges should be made using cylo primitives.
The whole hinges look very strange with broken, concave surfaces.
Why so many edge lines on the inside of the hinges? The surface looks flat.
Maybe you could make a subfile? It looks left/right symetric.
The whole hinges look very strange with broken, concave surfaces.
Why so many edge lines on the inside of the hinges? The surface looks flat.
Maybe you could make a subfile? It looks left/right symetric.
I'm not sure of the pivot point for the real part
2023-07-01 15:52:16
2023-07-07 15:17:04
I've bought this part and made fit check with the counterpart 92453 (in my daughter's brickbox).
Precise measurements will be reflected later.
Should the part origin at the hinge center?
Precise measurements will be reflected later.
Should the part origin at the hinge center?
2023-07-07 15:23:08
Yes, all new hinge parts should have the origin at the hinge unless some other place can be justified.
Thanks.
I'll hold this until the part origin, the position of top studs, and the fit with 92453/4543 are confirmed.
I'll hold this until the part origin, the position of top studs, and the fit with 92453/4543 are confirmed.
2023-07-07 15:32:22
The part origin will be moved to the hinge center.
2025-02-14 10:12:43
Bump
is the orientation also correct? the hinge should be either at the front or rear, but not at the side...
(I would tend to the hinge at the front)
(I would tend to the hinge at the front)
2025-02-14 11:23:35
Orientation should be along 4468 or 10715p02
this needs a counterpart, do we have any of the possible counterparts in the library?
this needs a counterpart, do we have any of the possible counterparts in the library?
2025-02-14 11:32:13
this part is used both ways (flippable to front or rear), but mostly the hinge is at the front.
and the counterparts (92453 and the older 4544) arent here.
(also, why are no train bases here? we have tracks but nothing to drive)
and the counterparts (92453 and the older 4544) arent here.
(also, why are no train bases here? we have tracks but nothing to drive)
2025-02-14 13:56:44
...we definately should have the Duplo trainbases!
My reference parts a unfortunately a bit far away at the moment
My reference parts a unfortunately a bit far away at the moment
2025-02-14 14:58:30
Do you need other parts for reference?
are you at the next BB-Meet?
are you at the next BB-Meet?
2025-02-24 18:29:05
please rotate the hinge to the front and move the origin to the center of the hinge
Moved the origin to the hinge and matched the orientation with 4544
2025-02-27 18:03:31
Header Edits
help:
0 !HELP Pivot point Y=0 Z=0
to
0 !HELP Pivot point Y=0 Z=0
0 !HELP Position relative the 4544 - Duplo Train Cabin 3.2 x 3 x 3 with Narrow Front Windows
0 !HELP 1 16 0 0 0 1 0 0 0 1 0 0 0 1 4544.dat
0 !HELP 1 47 0 -101.5 -49.1 1 0 0 0 1 0 0 0 1 4543.dat
Added HELP
2025-04-02 09:45:44
2025-04-02 15:30:13
2025-04-15 15:14:15
2025-04-27 06:57:29
Release 2025-04
