Official File parts/45706.dat
Part Attributes:
External Sites:
View on Rebrickable
File Header:

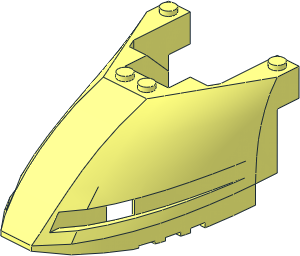

0 Train Front 6 x 10 x 3.667 Triple Curved Wedge
0 Name: 45706.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2023-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-08-16 [MagFors] Removed duplicated surfaces
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\45706s01.dat
