Official File parts/46335.dat
Part Attributes:
File Header:

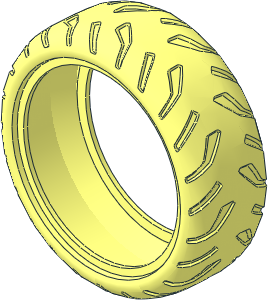

0 Tyre 38/ 26 x 75
0 Name: 46335.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS 94.3 x 38, Fat Boy, Harley Davidson, Set 10269
0 !HISTORY 2024-06-02 {LEGO Instructions App} Original part shape
0 !HISTORY 2024-08-14 [GeraldLasser] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
Show contents
0 BFC INVERTNEXT
1 16 0 0 19.25 113.4279 0 0 0 0 -113.4279 0 -38.5 0 48\4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 0 -37.25 -87 0 0 0 0 -87 0 4.5 0 48\4-4cylo.dat
1 16 0 0 -32.75 -9.66667 0 0 0 0 9.66667 0 -1 0 48\4-4ring9.dat
1 16 0 0 -32.75 -96.6667 0 0 0 0 96.6667 0 1 0 48\4-4edge.dat
1 16 0 0 -37.25 -7.90909 0 0 0 0 7.90909 0 1 0 48\4-4ring11.dat
1 16 0 0 -39.25 -2.35772 0 0 0 0 2.35772 0 6.5 0 48\4-4con41.dat
1 16 0 0 -39.25 -4.95122 0 0 0 0 4.95122 0 -1 0 48\4-4ring20.dat
0 BFC INVERTNEXT
1 16 0 0 -19.25 -9.45233 0 0 0 0 9.45233 0 -20 0 48\4-4con11.dat
0 BFC INVERTNEXT
1 16 0 0 37.25 -87 0 0 0 0 -87 0 -4.5 0 48\4-4cylo.dat
1 16 0 0 32.75 -9.66667 0 0 0 0 9.66667 0 1 0 48\4-4ring9.dat
1 16 0 0 32.75 -96.6667 0 0 0 0 96.6667 0 -1 0 48\4-4edge.dat
1 16 0 0 37.25 -7.90909 0 0 0 0 7.90909 0 -1 0 48\4-4ring11.dat
1 16 0 0 39.25 -2.35772 0 0 0 0 2.35772 0 -6.5 0 48\4-4con41.dat
1 16 0 0 39.25 -4.95122 0 0 0 0 4.95122 0 1 0 48\4-4ring20.dat
0 BFC INVERTNEXT
1 16 0 0 19.25 -9.45233 0 0 0 0 9.45233 0 20 0 48\4-4con11.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\46335s01.dat
1 16 0 0 0 0 1 0 1 0 0 0 0 -1 s\46335s01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 -1 s\46335s01.dat
1 16 0 0 0 0 -1 0 -1 0 0 0 0 -1 s\46335s01.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2019-07-14 09:50:02
Nice nonetheless... So you intend to make the rim?
2019-07-14 12:50:02
@Philo, yes, the rim is already uploaded, I need some more measurements for the little spoke things and pics from the other side.
2021-10-07 19:10:01
Any process here?
Misses the 'needs work' comment.
Misses the 'needs work' comment.
Update ring primitives via script. This will not reset the vote status of the part.
2024-04-30 18:31:29
2024-06-01 13:13:43
you made the rim thinner, does this still fit?
2024-07-30 15:36:13
could rework it using ldd data
2024-07-30 22:16:24
I will finish it
2024-07-30 22:19:56
neat
2024-08-14 08:32:23
* Big gap on both sides:
2 226 -43.5 -75.342 32.75 -43.500015 -75.34202598 32.25
2 226 -43.5 -75.342 -32.75 -43.500015 -75.34202598 -32.25
* Missing edges:
2 226 -43.5 -75.342 32.75 -43.500015 -75.34202598 32.25
2 226 -43.5 -75.342 -32.75 -43.500015 -75.34202598 -32.25
* Missing conds:
2 19 -80.204910516 -80.204910516 -19.25 -89.993743464 -69.054942048 -19.25
2 19 -80.204910516 -80.204910516 19.25 -89.993743464 -69.054942048 19.25
2 226 -43.5 -75.342 32.75 -43.500015 -75.34202598 32.25
2 226 -43.5 -75.342 -32.75 -43.500015 -75.34202598 -32.25
* Missing edges:
2 226 -43.5 -75.342 32.75 -43.500015 -75.34202598 32.25
2 226 -43.5 -75.342 -32.75 -43.500015 -75.34202598 -32.25
* Missing conds:
2 19 -80.204910516 -80.204910516 -19.25 -89.993743464 -69.054942048 -19.25
2 19 -80.204910516 -80.204910516 19.25 -89.993743464 -69.054942048 19.25
- closed gap
- Dthe missing edge is the same line as the gaps
- No tyres have inside conds between the cones
- Dthe missing edge is the same line as the gaps
- No tyres have inside conds between the cones
2024-08-17 08:28:41
Is the tread to deep?
* Closing one gap you opened a new one:
2 61 93.370191668 25.017295376 32.25 93.37036553 25.01734196 32.75
2 61 93.370191668 25.017295376 32.25 93.37036553 25.01734196 32.75
gaps are now closed...
2024-08-18 16:56:36
2024-08-27 18:51:26
2024-09-16 18:31:46
2024-09-16 19:00:31
this tire looks kinda backwards compared to the official 88516.dat
2024-09-16 20:51:51
hm yes the tread is backwards compared to all the other motorcycle tires...
should that be done here or should the subfiles get flipped?
should that be done here or should the subfiles get flipped?
Good catch Rene
2024-09-16 21:05:15
should get fixed in the s02 subfile
Rotated tyre, tread should be ok now
now
much better
2024-09-16 22:15:06
2024-09-16 22:37:44
2024-09-16 22:45:31
Thansk for spotting it!
2024-09-16 22:52:42
does this tire also fit two of the spoked rims?
these are wider and dont allow 3L pins get clicked in between them...
these are wider and dont allow 3L pins get clicked in between them...
2024-09-16 22:54:54
(can someone check the real parts?)
2024-09-16 22:57:04
part is also used in 42155 Batcycle
2024-09-30 03:56:59
Release 2024-08
