File Detail parts/4638848f.dat

Download Download zip file View sticker sheet parts

Official File parts/4638848f.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

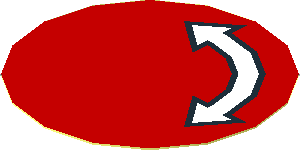

Sticker 1.8 x 1.8 Round with White Curved Double Arrow with Black Outline on Red Background

File Header:

0 Sticker  1.8 x  1.8 Round with White Curved Double Arrow with Black Outline on Red Background
0 Name: 4638848f.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Bricklink 3677stk01, Brickowl 55958, Rebrickable 97811
0 !KEYWORDS Red Cargo Train, Set 3677

0 !HISTORY 2022-06-17 [Blechtaler] origin 4586574c, changed yellow background to red
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-05-08 [GeraldLasser] Sub-Filed
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05

Show contents

1 16 0 0 0 17.5 0 0 0 -.25 0 0 0 17.5 4-4cylc3.dat

1 4 0 0 0 1 0 0 0 1 0 0 0 1 s\4638848fs01.dat
1 0 0 0 0 1 0 0 0 1 0 0 0 1 s\4638848fs02.dat
1 15 0 0 0 1 0 0 0 1 0 0 0 1 s\4638848fs03.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Rene Rechthaler [Blechtaler]

initially submitted the part.

2022-06-17 16:50:01

changed background color from yellow to red (original part 4586574c)

Max Martin Richter [MMR1988]

made the following comment.

2022-12-05 19:05:01

I would appreciate, if you would create a subpart of the topside and use it here and in an updated version 4586574c.
Subpart: white arrow with black borders and main coloured area around.

Rene Rechthaler [Blechtaler]

made the following comment.

2024-03-14 21:53:48

I think about subparting all 3 colours to cover all variants of this sticker...
there are also some which are just two-coloured, should the rim then be coloured like the arrow or the outside?
or should these use another template?

Orion Pobursky [OrionP]

submitted a new version of the part.

2024-03-23 00:59:38

Update ring primitives via script. This will not reset the vote status of the part.

Willy Tschager [Holly-Wood]

edited the part header.

2024-04-24 12:32:56

Header Edits

keywords:
railway, Set 3677, Train
to
Bricklink 3677stk01, Brickowl 55958, Rebrickable 97811, Red Cargo Train, Set 3677

Comment:
Added keywords

Willy Tschager [Holly-Wood]

made the following comment.

2024-04-24 12:34:46

Should be subfiled. Please list all stickers which could use a related sub.

Rene Rechthaler [Blechtaler]

made the following comment.

2024-04-24 15:42:58

this sticker is this part (sticker on part): https://www.bricklink.com/v2/catalog/catalogitem.page?P=4150pb083#T=C&C=5
the origin was this: https://www.bricklink.com/v2/catalog/catalogitem.page?P=4150pb043#T=C&C=3
the other parts are:
https://www.bricklink.com/v2/catalog/catalogitem.page?P=4150pb085#T=C&C=5
https://www.bricklink.com/v2/catalog/catalogitem.page?P=4150pb116#T=C&C=5
https://www.bricklink.com/v2/catalog/catalogitem.page?P=4150pb138#T=C&C=86
https://www.bricklink.com/v2/catalog/catalogitem.page?P=4150pb125#T=C&C=86
https://www.bricklink.com/v2/catalog/catalogitem.page?P=4150pb142#T=C&C=1
(but some have no rim, hence the question if it should be colored like the inside or outside)

Willy Tschager [Holly-Wood]

made the following comment.

2024-04-24 16:28:05

You'll need three subs:

s01 - Sticker surface with no arrow
s02 - Arrow with border
s03 - Arrow without border

looking a the pics I'd say that the size of the arrow without border is the size of the arrow+border. No arrow with border has been printed after 2011 so I'd say it is safe to model s02 with a black border.

Willy Tschager [Holly-Wood]

made the following comment.

2024-04-24 16:28:56

Obviously you'll need a s04 for the sticker without the pattern.

Rene Rechthaler [Blechtaler]

made the following comment.

2024-04-24 16:34:16

sticker without pattern? the base is just 4-4cylc3.dat...
what about the numbers? should these be prims then?

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2024-05-08 14:12:04

subfiled

Gerald Lasser [GeraldLasser]

made the following comment.

2024-05-08 14:15:36

oh, just saw that the comments were from last month, sorry for barging in...

Rene Rechthaler [Blechtaler]

made the following comment.

2024-05-08 15:42:29

thanks for doing that, Gerald (almost forgot it)
do you also want to do the one subfile without border?

Gerald Lasser [GeraldLasser]

made the following comment.

2024-05-08 17:26:38

No, let's use the existing files, just combine the border and the inside of the arrow with the same colour, this should be good for 4150pb142. Sizewise is it ok?

Rene Rechthaler [Blechtaler]

made the following comment.

2024-05-08 17:49:34

does it matter that this are then additional internal vertices in the same color?

Gerald Lasser [GeraldLasser]

made the following comment.

2024-05-08 20:19:08

For me, it doesn't, the files are flexible in this way, and just a few more vertices.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2024-05-31 10:00:20

Takeshi Takahashi [RainbowDolphin]
