Official File parts/46834.dat
Part Attributes:
File Header:

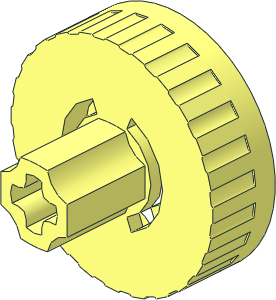

0 Technic Clutch with Axle Connector Outer Side
0 Name: 46834.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Torque limiter
0 !HISTORY 2021-12-25 [MagFors] Adapted axlehole blocker
0 !HISTORY 2024-01-29 [OrionP] Official Update 2024-01
Show contents
1 16 0 0 -30 1 0 0 0 0 -1 0 23 0 axlehole.dat
1 16 0 0 -30 1 0 0 0 0 -1 0 1 0 axlehol2.dat
1 16 0 0 -7 1 0 0 0 0 -1 0 1 0 axlehol2.dat
1 16 8.5 0 -20 0 -1 0 -3.44415 0 0 0 0 -10 rect.dat
1 16 0 4.447 -30 3.44399 0 -17.3142 -12.9464 0 -2.57519 0 20 0 48\1-16cylo.dat
1 16 -8.5 0 -20 0 1 0 3.44415 0 0 0 0 -10 rect.dat
1 16 0 -4.447 -30 -3.44399 0 17.3142 12.9464 0 2.57519 0 20 0 48\1-16cylo.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\46834s01.dat
1 16 0 0 0 0.96593 -0.25882 0 0.25882 0.96593 0 0 0 1 s\46834s01.dat
1 16 0 0 0 0.86603 -0.5 0 0.5 0.86603 0 0 0 1 s\46834s01.dat
1 16 0 0 0 0.70711 -0.70711 0 0.70711 0.70711 0 0 0 1 s\46834s01.dat
1 16 0 0 0 0.5 -0.86603 0 0.86603 0.5 0 0 0 1 s\46834s01.dat
1 16 0 0 0 0.25882 -0.96593 0 0.96593 0.25882 0 0 0 1 s\46834s01.dat
1 16 0 0 0 0 -1 0 1 0 0 0 0 1 s\46834s01.dat
1 16 0 0 0 -0.25882 -0.96593 0 0.96593 -0.25882 0 0 0 1 s\46834s01.dat
1 16 0 0 0 -0.5 -0.86603 0 0.86603 -0.5 0 0 0 1 s\46834s01.dat
1 16 0 0 0 -0.70711 -0.70711 0 0.70711 -0.70711 0 0 0 1 s\46834s01.dat
1 16 0 0 0 -0.86603 -0.5 0 0.5 -0.86603 0 0 0 1 s\46834s01.dat
1 16 0 0 0 -0.96593 -0.25882 0 0.25882 -0.96593 0 0 0 1 s\46834s01.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\46834s01.dat
1 16 0 0 0 -0.96593 0.25882 0 -0.25882 -0.96593 0 0 0 1 s\46834s01.dat
1 16 0 0 0 -0.86603 0.5 0 -0.5 -0.86603 0 0 0 1 s\46834s01.dat
1 16 0 0 0 -0.70711 0.70711 0 -0.70711 -0.70711 0 0 0 1 s\46834s01.dat
1 16 0 0 0 -0.5 0.86603 0 -0.86603 -0.5 0 0 0 1 s\46834s01.dat
1 16 0 0 0 -0.25882 0.96593 0 -0.96593 -0.25882 0 0 0 1 s\46834s01.dat
1 16 0 0 0 0 1 0 -1 0 0 0 0 1 s\46834s01.dat
1 16 0 0 0 0.25882 0.96593 0 -0.96593 0.25882 0 0 0 1 s\46834s01.dat
1 16 0 0 0 0.5 0.86603 0 -0.86603 0.5 0 0 0 1 s\46834s01.dat
1 16 0 0 0 0.70711 0.70711 0 -0.70711 0.70711 0 0 0 1 s\46834s01.dat
1 16 0 0 0 0.86603 0.5 0 -0.5 0.86603 0 0 0 1 s\46834s01.dat
1 16 0 0 0 0.96593 0.25882 0 -0.25882 0.96593 0 0 0 1 s\46834s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\46834s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\46834s02.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\46834s02.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\46834s02.dat
4 16 2.1406 25.4263 -10 1.1544 8.7244 -10 -1.1549 8.7241 -10 -2.1406 25.4263 -10
4 16 2.1406 -25.4263 -10 -2.1406 -25.4263 -10 -1.1544 -8.7244 -10 1.1544 -8.7244 -10
3 16 -25.4263 -2.1406 -10 -25.4263 2.1406 -10 -13 0 -10
3 16 25.4263 -2.1406 -10 13 0 -10 25.4263 2.1406 -10
3 16 2.1085 21.5142 -7 -2.1085 21.5142 -7 0 6 -7
3 16 0 -6 -7 -2.1085 -21.5142 -7 2.1085 -21.5142 -7
3 16 15.6 0 -7 21.5142 -2.1085 -7 21.5142 2.1085 -7
3 16 -21.5142 2.1085 -7 -21.5142 -2.1085 -7 -15.6 0 -7
3 16 0 6 -30 -3.444 8.5 -30 3.4434 8.4995 -30
3 16 8.4996 -3.4436 -30 6 0 -30 8.4996 3.4436 -30
3 16 -3.4442 -8.4997 -30 0 -6 -30 3.4434 -8.4995 -30
3 16 -6 0 -30 -8.5 -3.4442 -30 -8.5 3.444 -30
1 16 0 4.447 -30 3.44399 0 -17.3142 -12.9464 0 -2.57519 0 1 0 48\1-16chrd.dat
1 16 0 -4.447 -30 -3.44399 0 17.3142 12.9464 0 2.57519 0 1 0 48\1-16chrd.dat
1 16 0 5.602 -8.6 -2.1327 0 0 0 -2 0 0 0 1.4 box3u4a.dat
2 24 -2 5.602 -7.2 0 6 -7.2
2 24 2 5.602 -7.2 0 6 -7.2
3 16 2 5.602 -7.2 0 6 -7.2 -2 5.602 -7.2
2 24 -2 5.602 -10 0 6 -10
2 24 2 5.602 -10 0 6 -10
3 16 0 6 -10 2 5.602 -10 -2 5.602 -10
1 16 0 -5.602 -8.6 -2.1327 0 0 0 2 0 0 0 1.4 box3u10p.dat
2 24 -2 -5.602 -7.2 0 -6 -7.2
2 24 2 -5.602 -7.2 0 -6 -7.2
3 16 0 -6 -7.2 2 -5.602 -7.2 -2 -5.602 -7.2
2 24 -2 -5.602 -10 0 -6 -10
2 24 2 -5.602 -10 0 -6 -10
3 16 2 -5.602 -10 0 -6 -10 -2 -5.602 -10
2 24 -2.1327 -3.602 -10 -2 -4 -10
2 24 -2 -4 -10 -2 -5.602 -10
2 24 2 -4 -10 2 -5.602 -10
2 24 2 -4 -10 2.1327 -3.602 -10
2 24 -2 -4 -7.2 -2.1327 -3.602 -7.2
2 24 -2 -5.602 -7.2 -2 -4 -7.2
2 24 2 -4 -7.2 2 -5.602 -7.2
2 24 2 -4 -7.2 2.1327 -3.602 -7.2
2 24 -2.1327 -3.602 -10 -2.1327 -3.602 -7.2
2 24 2.1327 -3.602 -10 2.1327 -3.602 -7.2
2 24 -2.1327 3.602 -10 -2 4 -10
2 24 -2 4 -10 -2 5.602 -10
2 24 2 4 -10 2 5.602 -10
2 24 2 4 -10 2.1327 3.602 -10
2 24 -2 4 -7.2 -2.1327 3.602 -7.2
2 24 -2 5.602 -7.2 -2 4 -7.2
2 24 2 4 -7.2 2 5.602 -7.2
2 24 2 4 -7.2 2.1327 3.602 -7.2
2 24 -2.1327 3.602 -10 -2.1327 3.602 -7.2
2 24 2.1327 3.602 -10 2.1327 3.602 -7.2
