Official File parts/47297.dat
Part Attributes:
File Header:

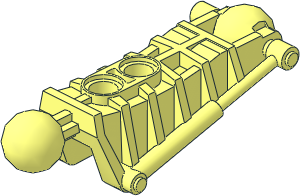

0 Constraction Limb 7 Straight with Two Ball Joints
0 Name: 47297.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Part UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS bionicle, leg, Lower, Metru, Technic, Toa
0 !HISTORY 2008-12-16 [mikeheide] Original design
0 !HISTORY 2015-11-03 {LEGO Digital Designer} Original part shape
0 !HISTORY 2023-08-22 [MagFors] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
0 !HISTORY 2025-07-27 [OrionP] Minor header edits
0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07
Show contents
1 16 0 -10 40 9 0 0 0 6 0 0 0 -9 2-4cyli.dat
1 16 0 -10 60 -9 0 0 0 6 0 0 0 9 2-4cyli.dat
1 16 0 0 40 -1 0 0 0 1 0 0 0 -1 connhole.dat
1 16 0 0 60 -1 0 0 0 1 0 0 0 -1 connhole.dat
1 16 0 -10 60 -9 0 0 0 1 0 0 0 9 2-4edge.dat
1 16 0 10 40 9 0 0 0 1 0 0 0 -9 4-4edge.dat
1 16 0 10 40 9 0 0 0 -11 0 0 0 -9 4-4cyli.dat
1 16 0 10 60 9 0 0 0 -11 0 0 0 -9 4-4cylo.dat
1 16 0 -10 50 1 0 0 0 6 0 0 0 1 npeghol2.dat
1 16 0 -10 40 9 0 0 0 1 0 0 0 -9 2-4edge.dat
1 16 0 0 0 12.81 0 0 0 12.81 0 0 0 12.81 8-8sphe.dat
1 16 0 0 12.81 0 0 -1 -1 0 0 0 10 0 axlehol8.dat
1 16 0 0 0 0 0 1 -1 0 0 0 -1 0 axlesphe.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\47297s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\47297s01.dat
0 // middle
1 16 0 -8.55 27.8685 .0028 0 1.8806 0 1 0 -3.5055 0 0 rect1.dat
1 16 0 -.0712 88.06545 10 0 0 0 0 3.8832 0 -1 .00655 rect2p.dat
1 16 0 2.2365 84.324 -10 0 0 0 0 5.3235 0 1 0 rect2p.dat
4 16 10 7.56 84.324 -10 7.56 84.324 -10 3.812 88.072 10 3.812 88.072
4 16 1.875 -9.3 81.347 -1.875 -9.3 81.347 -1.875 -9.3 70.072 1.875 -9.3 70.072
4 16 -1.875 -2.516 81.347 1.875 -2.516 81.347 1.875 -1 70.072 -1.875 -1 70.072
4 16 -1.875 -9.3 85.117 1.875 -9.3 85.117 1.875 -9.3 96.426 -1.875 -9.3 96.426
4 16 1.875 -2.516 81.347 -1.875 -2.516 81.347 -10 -3.087 84.324 10 -3.087 84.324
3 16 0 -2.25 31 10 -2.934 27.201 -10 -2.934 27.201
1 16 0 2.558 27.201 -10 0 0 0 0 -5.492 0 -1 0 rect2p.dat
1 16 0 -6.2255 98.70325 -10 0 0 0 -1 -1.2745 0 0 1.31775 rect2p.dat
1 16 0 -4.951 94.86775 0 0 -10 0 -1 0 -2.51775 0 0 rect1.dat
4 16 -10 -7.5 100.021 -14.438 -9.3 100.021 14.438 -9.3 100.021 10 -7.5 100.021
3 16 0 -1 69 -1.875 -1 70.072 1.875 -1 70.072
4 16 16.404 0 20.1 14.438 -9.3 20.1 -14.438 -9.3 20.1 -16.404 0 20.1
1 16 0 8.05 25.011 0 0 -10 0 -1 0 -2.19 0 0 rect1.dat
3 16 0 -5.715 31 -13.938 -7.106 24.363 13.938 -7.106 24.363
4 16 -1.875 -9.3 81.347 1.875 -9.3 81.347 1.875 -9.3 85.117 -1.875 -9.3 85.117
1 16 0 -9.3 22.2315 14.438 0 0 0 1 0 0 0 2.1315 rect2p.dat
4 16 -10 8.05 22.821 10 8.05 22.821 16.404 0 20.1 -16.404 0 20.1
4 16 10 -3.9544 88.0589 -10 -3.9544 88.0589 -10 -4.951 92.35 10 -4.951 92.35
4 16 1.875 -9.3 96.426 14.438 -9.3 100.021 -14.438 -9.3 100.021 -1.875 -9.3 96.426
4 16 13.938 -7.106 24.363 -13.938 -7.106 24.363 -14.438 -9.3 24.363 14.438 -9.3 24.363
3 16 1.875 -9.3 70.072 -1.875 -9.3 70.072 0 -9.297 69
2 24 -14.438 -9.3 100.021 14.438 -9.3 100.021
2 24 -13.938 -7.106 24.363 13.938 -7.106 24.363
2 24 -16.404 0 20.1 16.404 0 20.1
5 24 1.875 -1 70.072 -1.875 -1 70.072 -1.875 -2.516 81.347 0 -1 69
5 24 -1.875 -9.3 70.072 1.875 -9.3 70.072 1.875 -9.3 81.347 0 -9.297 69
5 24 1.875 -2.516 81.347 -1.875 -2.516 81.347 -10 -3.087 84.324 1.875 -1 70.072
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2008-12-16 17:11:26
Very nice part!
contains identical lines
Deleted double line.
Existing certification-votes were deleted.
Existing certification-votes were deleted.
Near the bit where the axle meets the main part, in where there's that cutout at the slope, the cutout doesn't 'instanty' go inwards but rather goes a tad towards the pinholes and then closes into the inner surface.
The same area is missing two edgelines (hold reason)
Also IMHO the ballholder should be inlined. Each limb piece has its own one... and IMHO the "w. Two Ball Joints" can be removed from the title.
The same area is missing two edgelines (hold reason)
Also IMHO the ballholder should be inlined. Each limb piece has its own one... and IMHO the "w. Two Ball Joints" can be removed from the title.
Orientation mismatches with 32173.dat. As it is the only official part of this kind, its orientation should be preserved in other parts.
2010-04-02 19:00:18
As I do not understand what you are claiming please correct this part but leave the "ballholder" like it is, as it can be reused!
2010-04-26 06:25:02
Agreed, Orientation has to change and two edgelines missing. Will do that.
Orientation should be changed 180 degrees on the Z axis.
What comes to those missing edgelines, that bit should be extruded a little bit towards the pinholes.
What comes to those missing edgelines, that bit should be extruded a little bit towards the pinholes.
2010-04-26 15:20:03
180 degree z-axis???
I wanted to rotate 90 degree y-axis.
I wanted to rotate 90 degree y-axis.
2010-04-26 15:25:09
If we would go with your suggestion, then IMHO the origin itself has to be at the pinhole. I don't like that idea.
2010-04-26 15:40:04
The missing edgeline and the slightly wrong contour has been changed in subpart.
2010-04-26 15:40:04
Regarding the orientation we have to care also about
http://www.ldraw.org/cgi-bin/ptdetail.cgi?f=parts/44148.dat
http://www.ldraw.org/cgi-bin/ptdetail.cgi?f=parts/45749.dat
as they similar to this file.
http://www.ldraw.org/cgi-bin/ptdetail.cgi?f=parts/44148.dat
http://www.ldraw.org/cgi-bin/ptdetail.cgi?f=parts/45749.dat
as they similar to this file.
2010-04-26 20:45:05
oops yeah, meant 180 degrees around Y axis.
2010-04-26 20:50:03
180 degree??? I think 90 degree would be ok?!
2010-04-26 20:55:02
but then we need to update all other Bionicle limbs and that would be a certify massacre.
I have now rotated by 90 degree y axis. I am quite sure that is what you are looking for.
Existing certification-votes were deleted.
Existing certification-votes were deleted.
Removed "empty" comment lines.
replaced "w." by "with" in title
2022-09-28 08:45:02
* Part not broken by npeghole overhaul.
* Has a lot of issues
* Has a lot of issues
Reworked using ldd data.
Also reused 1 subfile, but replaced the content, the half ball with cutouts, used in both parts.
Also reused 1 subfile, but replaced the content, the half ball with cutouts, used in both parts.
2023-09-10 16:46:05
Some missing conds:
5 24 -1.875 -9.3 70.072 1.875 -9.3 70.072 1.875 -9.3 81.347 0 -9.297 69
5 24 1.875 -2.516 81.347 -1.875 -2.516 81.347 -10 -3.087 84.324 1.875 -0.926 70.072
One of them could be added in the subpart:
5 24 1.875 -9.3 81.347 1.875 -9.3 85.117 -1.875 -9.3 81.347 14.438 -8.567 85.117
5 24 -1.875 -9.3 85.117 -1.875 -9.3 81.347 1.875 -9.3 81.347 -14.438 -8.567 85.117
5 24 -1.875 -9.3 70.072 1.875 -9.3 70.072 1.875 -9.3 81.347 0 -9.297 69
5 24 1.875 -2.516 81.347 -1.875 -2.516 81.347 -10 -3.087 84.324 1.875 -0.926 70.072
One of them could be added in the subpart:
5 24 1.875 -9.3 81.347 1.875 -9.3 85.117 -1.875 -9.3 81.347 14.438 -8.567 85.117
5 24 -1.875 -9.3 85.117 -1.875 -9.3 81.347 1.875 -9.3 81.347 -14.438 -8.567 85.117
2024-01-15 18:17:20
2024-01-26 14:33:03
2024-01-29 07:29:45
2024-02-15 03:35:44
2024-03-24 17:23:57
Release 2024-02
