Official File parts/48156.dat
Part Attributes:

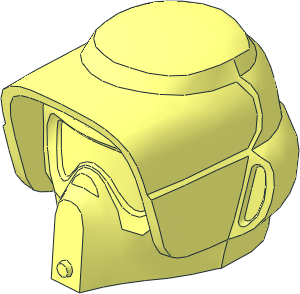

Minifig Helmet SW Scout Trooper
File Header:
0 Minifig Helmet SW Scout Trooper 0 Name: 48156.dat 0 Author: Fredrik Hareide [fhareide] 0 !LDRAW_ORG Part UPDATE 2023-04 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !CATEGORY Minifig Headwear 0 !KEYWORDS Star Wars 0 !HISTORY 2022-02-17 {LEGO Instructions App} Original part shape 0 !HISTORY 2022-02-17 [fhareide] File preparation for LDraw Parts Tracker 0 !HISTORY 2022-09-18 [MagFors] Adjusted subfiles 0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\48156s01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\48156s01.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\48156s02.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\48156s02.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\48156s04.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\48156s04.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\48156s05.dat
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Fredrik Hareide [fhareide]
Part Header Editor
initially submitted the part.
2022-02-19 11:55:02
Max Martin Richter [MMR1988]
Senior Part Reviewer
posted a vote of Hold.
2022-03-13 17:05:01
Misses the inner stud edge. The stud prim can't be used here, as it creates 4 unwanted edges at the inner area.
Some edges around the stud are missing.
The disc used for the inside of the stud is too big.

The subparts s01 and s03 don't match and create a second edgeline at the bottom.
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2022-03-13 17:30:01
Yes, but I think I should maybe change the stud prim and remove the unwanted edges.
Fredrik Hareide [fhareide]
Part Header Editor
submitted a new version of the part.
2022-03-18 07:35:02
Fixed a lot of mismatches in geometry

Existing certification-votes were deleted.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Hold.
2022-03-18 15:00:01
All edges and conds in the patternable subfiles have to moved to s01.

Doing so you'll see that for example:

2 24 3.0792 -2.2031 -15.7346 3.4623 -2.3083 -15.6194
2 24 3.146 -4.8596 -15.26 3.4916 -4.7258 -15.2278
2 24 3.146 -4.8596 -15.26 2.7368 -4.7016 -15.4014
2 24 2.5414 -2.7367 -15.9146 2.7321 -2.3543 -15.8114
2 24 3.6904 -4.4133 -15.1921 3.4916 -4.7258 -15.2278
2 24 3.6987 -2.7309 -15.4734 3.4623 -2.3083 -15.6194
2 24 2.5437 -4.2773 -15.4619 2.7368 -4.7016 -15.4014
2 24 2.5414 -2.7367 -15.9146 2.5437 -4.2773 -15.4619
2 24 2.7321 -2.3543 -15.8114 3.0792 -2.2031 -15.7346
2 24 3.6987 -2.7309 -15.4734 3.6904 -4.4133 -15.1921

in s03 are also present in s01.
Fredrik Hareide [fhareide]
Part Header Editor
submitted a new version of the part.
2022-05-13 20:15:02
Fixed overlapping edge lines and missing condlines

Existing certification-votes were deleted.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Hold.
2022-05-14 12:00:01
Missing conds.

5 24 0 -4.8574 -15.6003 0 -4.3568 -15.7104 -.4231 -4.6714 -15.5668 .4231 -4.6714 -15.5668
5 24 0 -2.603 -16.096 0 -2.189 -16.187 .3744 -2.3453 -16.1066 -.3744 -2.3453 -16.1066
5 24 0 -4.3568 -15.7104 0 -2.603 -16.096 .5672 -2.6159 -16.0086 -.5672 -2.6159 -16.0086
5 24 0 6.0328 -17.6467 0 8.192 -18.041 1.5229 8.4594 -17.9935 -1.5229 8.4594 -17.9935

should probably be moved to s01
Fredrik Hareide [fhareide]
Part Header Editor
submitted a new version of the part.
2022-05-15 11:10:01
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify.
2022-05-16 13:20:01
Fredrik Hareide [fhareide]
Part Header Editor
submitted a new version of the part.
2022-05-25 17:25:02
Fixed rounding error

Existing certification-votes were deleted.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify.
2022-05-26 10:50:02
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2022-05-26 11:20:01
The dividing line between inner and outer parts, white/black sections, is still missing.
Fredrik Hareide [fhareide]
Part Header Editor
submitted a new version of the part.
2022-05-27 18:10:02
Added line between moulds

Existing certification-votes were deleted.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Hold.
2022-05-28 17:15:01
Misses suddenly a lot of conds between s02 and s03.
Max Martin Richter [MMR1988]
Senior Part Reviewer
posted a vote of Hold.
2022-06-19 20:15:02
Confirmed
Magnus Forsberg [MagFors]
Part Library Admin
submitted a new version of the part.
2022-09-20 20:50:02
Re-arranged subfiles structure.
Adjusted some of the pattern.
Removed edge lines between the pattern subfiles.

Existing certification-votes were deleted.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Hold.
2022-09-22 07:20:01
Edger complains about these conds.

5 24 1.326 20.630125 -21.7232 3.005 17.868 -21.51 .9691 21.607925 -21.799 .9701 19.705 -21.652
5 24 -3.005 23.565 -21.95 -1.72 23.372 -19.81 1.72 23.372 -19.81 -3.428 23.119 -16.851
5 24 -1.326 20.630125 -21.7232 -3.005 17.868 -21.51 -.9691 21.607925 -21.799 -.9701 19.705 -21.652
5 24 1.72 23.372 -19.81 3.005 23.565 -21.95 0 23.565 -21.95 3.428 23.119 -16.851

Flatness of s02 should be checked.
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2022-09-22 15:40:01
Fixed in the subfiles.
Can't do much about s02 and s04. They are as flat as they can be.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify.
2022-09-23 07:25:01
Max Martin Richter [MMR1988]
Senior Part Reviewer
posted a vote of Certify.
2022-11-04 20:15:01
Franklin W. Cain [fwcain]
Part Reviewer
posted a vote of Certify.
2022-11-05 04:05:01
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2023-08-16 16:57:32
Orion Pobursky [OrionP]
Part Library Admin
2023-08-25 01:30:51
Release 2023-04
