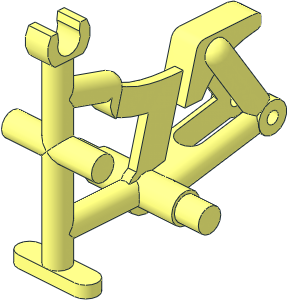

0 Tricycle Frame
0 Name: 50015.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP place rear wheel at
0 !HELP 1 16 0 48 68 0 0 1 0 1 0 -1 0 0 92851.dat
0 BFC CERTIFY CCW
0 !CATEGORY Vehicle
0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02
