Official File parts/50018f.dat
Part Attributes:
File Header:

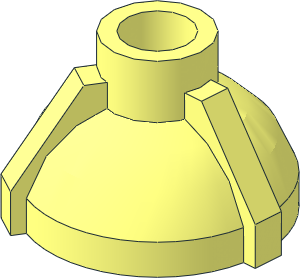

0 Minifig Tool Hemisphere with 3 Ribs and Hollow Stud
0 Name: 50018f.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Accessory
0 !KEYWORDS Minifig Accessory Pack #11, Rebrickable 50018b, Reflector
0 !HISTORY 2023-10-31 [OrionP] Official Update 2023-05
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\50018fs01.dat
1 16 0 0 0 -.5 0 .86603 0 1 0 -.86603 0 -.5 s\50018fs01.dat
1 16 0 0 0 -.5 0 -.86603 0 1 0 .86603 0 -.5 s\50018fs01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 0 0 0 6 0 0 0 3 0 0 0 6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 0 0 4 0 0 0 5 0 0 0 4 4-4cyli.dat
1 16 0 3 0 6 0 0 0 1 0 0 0 6 48\4-4aring.dat
1 16 0 3 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 5 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
0 // Bottom Rim
1 16 0 16 0 1 0 0 0 -1 0 0 0 1 4-4ring12.dat
1 16 0 16 0 13 0 0 0 -1 0 0 0 13 48\4-4aring.dat
1 16 0 16 0 1 0 0 0 -1 0 0 0 1 48\4-4ring13.dat
0 // Inner Surface
0 BFC INVERTNEXT
1 16 0 6.5 0 4 0 0 0 -1.5 0 0 0 4 4-4con1.dat
0 BFC INVERTNEXT
1 16 0 8.5 0 2 0 0 0 -2 0 0 0 2 4-4con4.dat
0 BFC INVERTNEXT
1 16 0 12 0 2 0 0 0 -3.5 0 0 0 2 4-4con5.dat
0 BFC INVERTNEXT
1 16 0 16 0 12 0 0 0 -4 0 0 0 12 4-4cylo.dat
5 24 -8 6.5 0 -7.3912 6.5 3.0616 -10 8.5 0 -4 5 0
5 24 -7.3912 6.5 3.0616 -5.6568 6.5 5.6568 -9.239 8.5 3.827 -3.6956 5 1.5308
5 24 -5.6568 6.5 5.6568 -3.0616 6.5 7.3912 -2.8284 5 2.8284 -7.071 8.5 7.071
5 24 -3.0616 6.5 7.3912 0 6.5 8 -1.5308 5 3.6956 -3.827 8.5 9.239
5 24 -10 8.5 0 -9.239 8.5 3.827 -8 6.5 0 -12 12 0
5 24 -9.239 8.5 3.827 -7.071 8.5 7.071 -11.0868 12 4.5924 -7.3912 6.5 3.0616
5 24 -7.071 8.5 7.071 -3.827 8.5 9.239 -5.6568 6.5 5.6568 -8.4852 12 8.4852
5 24 -3.827 8.5 9.239 0 8.5 10 -4.5924 12 11.0868 -3.0616 6.5 7.3912
5 24 0 6.5 8 3.0616 6.5 7.3912 0 8.5 10 0 5 4
5 24 3.0616 6.5 7.3912 5.6568 6.5 5.6568 3.827 8.5 9.239 1.5308 5 3.6956
5 24 5.6568 6.5 5.6568 7.3912 6.5 3.0616 2.8284 5 2.8284 7.071 8.5 7.071
5 24 7.3912 6.5 3.0616 8 6.5 0 3.6956 5 1.5308 9.239 8.5 3.827
5 24 0 8.5 10 3.827 8.5 9.239 0 6.5 8 0 12 12
5 24 3.827 8.5 9.239 7.071 8.5 7.071 4.5924 12 11.0868 3.0616 6.5 7.3912
5 24 7.071 8.5 7.071 9.239 8.5 3.827 5.6568 6.5 5.6568 8.4852 12 8.4852
5 24 9.239 8.5 3.827 10 8.5 0 11.0868 12 4.5924 7.3912 6.5 3.0616
5 24 8 6.5 0 7.3912 6.5 -3.0616 10 8.5 0 4 5 0
5 24 7.3912 6.5 -3.0616 5.6568 6.5 -5.6568 9.239 8.5 -3.827 3.6956 5 -1.5308
5 24 5.6568 6.5 -5.6568 3.0616 6.5 -7.3912 2.8284 5 -2.8284 7.071 8.5 -7.071
5 24 3.0616 6.5 -7.3912 0 6.5 -8 1.5308 5 -3.6956 3.827 8.5 -9.239
5 24 10 8.5 0 9.239 8.5 -3.827 8 6.5 0 12 12 0
5 24 9.239 8.5 -3.827 7.071 8.5 -7.071 11.0868 12 -4.5924 7.3912 6.5 -3.0616
5 24 7.071 8.5 -7.071 3.827 8.5 -9.239 5.6568 6.5 -5.6568 8.4852 12 -8.4852
5 24 3.827 8.5 -9.239 0 8.5 -10 4.5924 12 -11.0868 3.0616 6.5 -7.3912
5 24 0 6.5 -8 -3.0616 6.5 -7.3912 0 8.5 -10 0 5 -4
5 24 -3.0616 6.5 -7.3912 -5.6568 6.5 -5.6568 -3.827 8.5 -9.239 -1.5308 5 -3.6956
5 24 -5.6568 6.5 -5.6568 -7.3912 6.5 -3.0616 -2.8284 5 -2.8284 -7.071 8.5 -7.071
5 24 -7.3912 6.5 -3.0616 -8 6.5 0 -3.6956 5 -1.5308 -9.239 8.5 -3.827
5 24 0 8.5 -10 -3.827 8.5 -9.239 0 6.5 -8 0 12 -12
5 24 -3.827 8.5 -9.239 -7.071 8.5 -7.071 -4.5924 12 -11.0868 -3.0616 6.5 -7.3912
5 24 -7.071 8.5 -7.071 -9.239 8.5 -3.827 -5.6568 6.5 -5.6568 -8.4852 12 -8.4852
5 24 -9.239 8.5 -3.827 -10 8.5 0 -11.0868 12 -4.5924 -7.3912 6.5 -3.0616
0 // Adaptors to Ribs at 90°
2 24 5.7024 3 -1.827 6.8185 3.5295 -1.827
2 24 5.7024 3 1.827 6.8185 3.5295 1.827
2 24 5.6367 0 1.827 5.6367 3 1.827
2 24 5.6367 3 1.827 5.7025 3 1.827
2 24 6 0 0 5.6367 0 1.827
2 24 5.6367 0 1.827 8 0 1.827
3 16 5.6367 0 1.827 5.7024 3 1.827 5.6367 3 1.827
4 16 5.7024 3 1.827 5.6367 0 1.827 8 0 1.827 6.8185 3.5295 1.827
3 16 8 0 1.827 5.6367 0 1.827 6 0 0
2 24 5.6367 0 -1.827 5.6367 3 -1.827
2 24 5.6367 3 -1.827 5.7025 3 -1.827
2 24 6 0 0 5.6367 0 -1.827
2 24 5.6367 0 -1.827 8 0 -1.827
3 16 5.7024 3 -1.827 5.6367 0 -1.827 5.6367 3 -1.827
4 16 8 0 -1.827 5.6367 0 -1.827 5.7024 3 -1.827 6.8185 3.5295 -1.827
3 16 5.6367 0 -1.827 8 0 -1.827 6 0 0
3 16 8 0 1.827 6 0 0 8 0 -1.827
0 // Adaptors to Ribs at 210°
2 24 -4.9916 3.5297 -4.9917 -4.4335 3 -4.0251
2 24 -4.4124 0 -3.9885 -4.4124 3 -3.9885
2 24 -4.4124 3 -3.9885 -4.4335 3 -4.0251
2 24 -1.8271 3.5297 -6.8187 -1.2689 3 -5.8518
2 24 -1.215 3 -5.7584 -1.215 0 -5.7584
2 24 -1.2689 3 -5.8518 -1.215 3 -5.7584
3 16 -1.2689 3 -5.8518 -1.215 3 -5.7584 -1.215 0 -5.7584
4 16 -2.4178 0 -7.8417 -1.8271 3.5297 -6.8187 -1.2689 3 -5.8518 -1.215 0 -5.7584
4 16 -4.4335 3 -4.0251 -4.9916 3.5297 -4.9917 -5.5822 0 -6.0147 -4.4124 0 -3.9885
3 16 -4.4124 0 -3.9885 -4.4124 3 -3.9885 -4.4335 3 -4.0251
3 16 -4.2426 0 -4.2426 -4.4124 0 -3.9885 -5.5822 0 -6.0147
3 16 -2.2962 0 -5.5434 -2.4178 0 -7.8417 -1.215 0 -5.7584
4 16 -5.5822 0 -6.0147 -2.4178 0 -7.8417 -2.2962 0 -5.5434 -4.2426 0 -4.2426
2 24 -2.4178 0 -7.8417 -1.215 0 -5.7584
2 24 -5.5822 0 -6.0147 -4.4124 0 -3.9885
2 24 -2.2962 0 -5.5434 -4.2426 0 -4.2426
2 24 -2.2962 0 -5.5434 -1.215 0 -5.7584
2 24 -4.4124 0 -3.9885 -4.2426 0 -4.2426
0 // Adaptors to Ribs at 330°
2 24 -4.9916 3.5297 4.9917 -4.4335 3 4.0251
2 24 -4.4124 0 3.9885 -4.4124 3 3.9885
2 24 -4.4124 3 3.9885 -4.4335 3 4.0251
2 24 -1.8271 3.5297 6.8187 -1.2689 3 5.8518
2 24 -1.215 3 5.7584 -1.215 0 5.7584
2 24 -1.2689 3 5.8518 -1.215 3 5.7584
3 16 -1.215 3 5.7584 -1.2689 3 5.8518 -1.215 0 5.7584
4 16 -1.2689 3 5.8518 -1.8271 3.5297 6.8187 -2.4178 0 7.8417 -1.215 0 5.7584
4 16 -5.5822 0 6.0147 -4.9916 3.5297 4.9917 -4.4335 3 4.0251 -4.4124 0 3.9885
3 16 -4.4124 3 3.9885 -4.4124 0 3.9885 -4.4335 3 4.0251
3 16 -4.4124 0 3.9885 -4.2426 0 4.2426 -5.5822 0 6.0147
3 16 -2.4178 0 7.8417 -2.2962 0 5.5434 -1.215 0 5.7584
4 16 -2.2962 0 5.5434 -2.4178 0 7.8417 -5.5822 0 6.0147 -4.2426 0 4.2426
2 24 -2.4178 0 7.8417 -1.215 0 5.7584
2 24 -5.5822 0 6.0147 -4.4124 0 3.9885
2 24 -2.2962 0 5.5434 -4.2426 0 4.2426
2 24 -2.2962 0 5.5434 -1.215 0 5.7584
2 24 -4.4124 0 3.9885 -4.2426 0 4.2426
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2020-02-15 18:00:02
2020-02-23 09:50:01
2020-03-04 13:55:01
I would somehow like to see this part upside down, to match orientation of 902.dat (Electric Light Reflector Round 2 x 2 x 0.667)
2020-10-06 12:30:02
[PTadmin]
edited the part header.
2021-06-13 23:30:01
I agree with Philo
But that would mean that the top stud, is on the bottom side. And it is a top stud, not a bottom stud.
This part has no bottom stud attachment points. It only snaps to the bottom of a part, or a bar.
This part has no bottom stud attachment points. It only snaps to the bottom of a part, or a bar.
Ok. I guess that's reasonable.
2023-10-31 03:34:34
Release 2023-05
Update ring primitives via script. Do not hold.
2024-03-23 00:58:46
2024-03-24 17:26:39
Release 2024-02
