Official File parts/50820.dat
Part Attributes:
File Header:

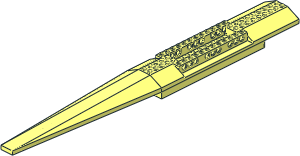

0 Boat Hull 48 x 6 x 5 Top
0 Name: 50820.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\50820s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\50820s01.dat
0 // Centre Portion
1 16 0 24 60 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 0 28 60 6 0 0 0 -1 0 0 0 6 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 24 60 6 0 0 0 4 0 0 0 6 4-4cylo.dat
1 16 0 28 -60 6 0 0 0 -1 0 0 0 6 4-4ndis.dat
1 16 0 24 -60 6 0 0 0 1 0 0 0 6 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 24 -60 6 0 0 0 4 0 0 0 6 4-4cylo.dat
3 16 0 28 66 -24 28 104 24 28 104
4 16 -8 22 104 8 22 104 24 28 104 -24 28 104
4 16 8 22 104 -8 22 104 -8 4 104 8 4 104
4 16 16 4 112 8 4 104 -8 4 104 -16 4 112
3 16 0 28 -66 24 28 -104 -24 28 -104
4 16 24 28 -104 8 22 -104 -8 22 -104 -24 28 -104
4 16 -8 22 -104 8 22 -104 8 4 -104 -8 4 -104
4 16 -8 4 -104 8 4 -104 16 4 -112 -16 4 -112
4 16 19.0557 4 117 16 4 112 -16 4 112 -19.0557 4 117
4 16 16 4 -112 19.0557 4 -117 -19.0557 4 -117 -16 4 -112
4 16 19.0557 4 -117 19.0557 4 -199.8336 -19.0557 4 -199.8336 -19.0557 4 -117
2 24 24 28 -104 -24 28 -104
2 24 -8 4 104 8 4 104
2 24 24 28 104 -24 28 104
2 24 24 17.3912 -96.9384 24 28 -104
2 24 -8 4 -104 8 4 -104
4 16 -37 30 1 -24 28 1 24 28 1 37 30 1
4 16 37 30 -1 24 28 -1 -24 28 -1 -37 30 -1
1 16 0 30 0 0 0 -37 0 -1 0 -1 0 0 rect.dat
2 24 -24 28 1 24 28 1
2 24 24 28 -1 -24 28 -1
4 16 -19.0557 4 121 19.0557 4 121 36 12.4721 121 -36 12.4721 121
4 16 19.0557 4 119 -19.0557 4 119 -36 12.4721 119 36 12.4721 119
4 16 36 28 119 36 12.4721 119 -36 12.4721 119 -36 28 119
4 16 36 28 119 -36 28 119 -37 30 119 37 30 119
4 16 -36 28 121 -36 12.4721 121 36 12.4721 121 36 28 121
4 16 -36 28 121 36 28 121 37 30 121 -37 30 121
1 16 0 30 120 -37 0 0 0 -1 0 0 0 1 rect.dat
2 24 -19.0557 4 121 19.0557 4 121
2 24 19.0557 4 119 -19.0557 4 119
4 16 36 12.4721 -121 19.0557 4 -121 -19.0557 4 -121 -36 12.4721 -121
4 16 -36 12.4721 -119 -19.0557 4 -119 19.0557 4 -119 36 12.4721 -119
4 16 -36 12.4721 -119 36 12.4721 -119 36 28 -119 -36 28 -119
4 16 -37 30 -119 -36 28 -119 36 28 -119 37 30 -119
4 16 36 12.4721 -121 -36 12.4721 -121 -36 28 -121 36 28 -121
4 16 37 30 -121 36 28 -121 -36 28 -121 -37 30 -121
1 16 0 30 -120 -37 0 0 0 -1 0 0 0 -1 rect.dat
2 24 19.0557 4 -121 -19.0557 4 -121
2 24 -19.0557 4 -119 19.0557 4 -119
4 16 37 12.9721 177 19.0557 4 177 -19.0557 4 177 -37 12.9721 177
1 16 0 40.48605 177 -37 0 0 0 0 27.51395 0 1 0 rect3.dat
2 24 19.0557 4 177 -19.0557 4 177
4 16 19.0557 4 180 40 14.4721 180 -40 14.4721 180 -19.0557 4 180
1 16 0 41.23605 180 40 0 0 0 0 26.76395 0 -1 0 rect3.dat
2 24 -19.0557 4 180 19.0557 4 180
4 16 -40 68 180 40 68 180 37 68 177 -37 68 177
4 16 -19.0557 4 -177 19.0557 4 -177 37 12.9721 -177 -37 12.9721 -177
1 16 0 40.48605 -177 -37 0 0 0 0 27.51395 0 -1 0 rect3.dat
2 24 -19.0557 4 -177 19.0557 4 -177
4 16 -40 14.4721 -180 40 14.4721 -180 19.0557 4 -180 -19.0557 4 -180
1 16 0 41.23605 -180 40 0 0 0 0 26.76395 0 1 0 rect3.dat
2 24 19.0557 4 -180 -19.0557 4 -180
4 16 37 68 -177 40 68 -180 -40 68 -180 -37 68 -177
0 // Aft Section
4 16 19.0557 4 117 -19.0557 4 117 -19.0557 4 276 19.0557 4 276
2 24 19.0557 4 276 -19.0557 4 276
4 16 56 22.4721 239 -56 22.4721 239 -56 30 239 56 30 239
4 16 56 22.4721 239 19.0557 4 239 -19.0557 4 239 -56 22.4721 239
2 24 -19.0557 4 239 19.0557 4 239
2 24 -56 30 239 56 30 239
4 16 -56 30 239 -1 30 241 1 30 241 56 30 239
1 16 0 4 258.5 0 0 1 0 26 0 17.5 0 0 box3u4p.dat
2 24 -1 30 276 1 30 276
4 16 56 22.4721 276 19.0557 4 276 -19.0557 4 276 -56 22.4721 276
1 16 0 27.23605 276 -56 0 0 0 0 4.76395 0 1 0 rect3.dat
4 16 60 32 280 56 32 276 -56 32 276 -60 32 280
1 16 0 26 280 60 0 0 0 0 6 0 -1 0 rect3.dat
4 16 -20 0 280 20 0 280 60 20 280 -60 20 280
0 // Top
1 16 0 0 200 20 0 0 0 1 0 0 0 80 rect3.dat
4 16 -20 0 120 -12 0 100 12 0 100 20 0 120
4 16 12 18 100 -12 18 100 -20 24 100 20 24 100
4 16 -12 0 100 -12 18 100 12 18 100 12 0 100
3 16 -20 24 100 0 24 66 20 24 100
3 16 20 24 -100 0 24 -66 -20 24 -100
4 16 20 0 -120 12 0 -100 -12 0 -100 -20 0 -120
4 16 -12 18 -100 -12 0 -100 12 0 -100 12 18 -100
4 16 -20 24 -100 -12 18 -100 12 18 -100 20 24 -100
1 16 0 0 -160 -20 0 0 0 1 0 0 0 -40 rect3.dat
2 24 -12 0 100 12 0 100
2 24 -12 0 -100 12 0 -100
2 24 20 24 -100 -20 24 -100
2 24 -20 24 100 20 24 100
1 16 -10 24 0 0 0 -1 0 1 0 1 0 0 stug-1x10.dat
1 16 10 24 0 0 0 -1 0 1 0 1 0 0 stug-1x10.dat
1 16 -10 0 190 0 0 -1 0 1 0 1 0 0 stug-1x9.dat
1 16 10 0 190 0 0 -1 0 1 0 1 0 0 stug-1x9.dat
1 16 -10 0 -150 0 0 -1 0 1 0 1 0 0 stug-1x5.dat
1 16 10 0 -150 0 0 -1 0 1 0 1 0 0 stug-1x5.dat
1 16 -30 0 0 0 0 -1 0 1 0 1 0 0 stug2-1x12.dat
1 16 30 0 0 0 0 -1 0 1 0 1 0 0 stug2-1x12.dat
1 16 0 10 -440 0 0 20 10 1 0 -240 0 0 rect2p.dat
1 16 0 26 -680 0 0 -20 -6 0 0 0 1 0 rect.dat
0 // Bow Section
4 16 -19.0557 4 -199.8336 19.0557 4 -199.8336 19.3313 22.4721 -643.248 -19.3313 22.4721 -643.248
4 16 -16.6228 23.8368 -676 -19.3313 22.4721 -643.248 19.3313 22.4721 -643.248 16.6228 23.8368 -676
1 16 0 27.9184 -676 0 0 -16.6228 4.0816 0 0 0 -1 0 rect.dat
4 16 -16.6228 32 -676 16.6228 32 -676 20 32 -680 -20 32 -680
2 24 19.0557 4 -199.8336 -19.0557 4 -199.8336
4 16 55.9035 22.4721 -201 19.0564 4.0486 -201 -19.0564 4.0486 -201 -55.9035 22.4721 -201
4 16 55.9035 22.4721 -201 -55.9035 22.4721 -201 -55.9035 30 -201 55.9035 30 -201
4 16 -56 30 -199.8336 56 30 -199.8336 55.9035 30 -201 -55.9035 30 -201
4 16 56 30 -199.8336 -56 30 -199.8336 -56 30 -199 56 30 -199
4 16 -56 22.4721 -199 56 22.4721 -199 56 30 -199 -56 30 -199
4 16 -56 22.4721 -199 -19.0557 4 -199 19.0557 4 -199 56 22.4721 -199
2 24 19.0557 4 -199 -19.0557 4 -199
2 24 56 30 -199 -56 30 -199
2 24 -55.9035 30 -201 55.9035 30 -201
2 24 19.0564 4.0486 -201 -19.0564 4.0486 -201
4 16 -42.8375 22.4721 -359 42.8375 22.4721 -359 42.8375 30 -359 -42.8375 30 -359
4 16 -42.8375 22.4721 -359 -19.1546 10.6307 -359 19.1546 10.6307 -359 42.8375 22.4721 -359
4 16 -42.8375 30 -359 42.8375 30 -359 42.6721 30 -361 -42.6721 30 -361
4 16 -42.6721 22.4721 -361 -42.6721 30 -361 42.6721 30 -361 42.6721 22.4721 -361
4 16 42.6721 22.4721 -361 19.1559 10.714 -361 -19.1559 10.714 -361 -42.6721 22.4721 -361
2 24 -19.1559 10.714 -361 19.1559 10.714 -361
2 24 42.6721 30 -361 -42.6721 30 -361
2 24 -42.8375 30 -359 42.8375 30 -359
2 24 19.1546 10.6307 -359 -19.1546 10.6307 -359
4 16 -1 30 -676 -1 30 -521 1 30 -521 1 30 -676
4 16 1 30 -521 -1 30 -521 -29.6061 30 -519 29.6061 30 -519
4 16 -29.6061 22.4721 -519 29.6061 22.4721 -519 29.6061 30 -519 -29.6061 30 -519
4 16 -29.6061 22.4721 -519 -19.2541 17.2961 -519 19.2541 17.2961 -519 29.6061 22.4721 -519
2 24 -1 30 -676 1 30 -676
2 24 -19.2541 17.2961 -519 19.2541 17.2961 -519
2 24 29.6061 30 -519 -29.6061 30 -519
