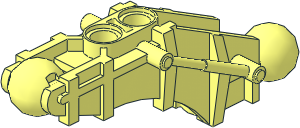

0 Constraction Limb  8 x  3 with  3 Pinholes
0 Name: 50920.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2023-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS bionicle, Hordika, leg, Lower, Technic, Toa

0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04

Show contents

0 // Subparts

1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\50920s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\50920s01.dat
0 // Primitives
1 16 0 0 0 12.81 0 0 0 12.81 0 0 0 12.81 8-8sphe.dat
1 16 0 0 0 1 0 0 0 0 1 0 1 0 axlesphe.dat
1 16 0 0 -20 1 0 0 0 0 1 0 7.19 0 axlehol8.dat
1 16 0 0 -20 1 0 0 0 0 1 0 1 0 axlehol9.dat
1 16 0 0 -20 1 0 0 0 0 1 0 1 0 axlehol2.dat
0 BFC INVERTNEXT
1 16 0 10 -26 6.36 0 0 0 -16 0 0 0 4 box4-4a.dat
1 16 0 -10 -35 10 0 0 0 1 0 0 0 15 recte4.dat
1 16 0 0 -40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 0 10 -30 1 0 0 0 -16 0 0 0 -1 npeghol7.dat
1 16 0 10 -50 1 0 0 0 -16 0 0 0 1 npeghol7.dat
1 16 0 -10 -40 9 0 0 0 1 0 0 0 9 4-4ndis.dat
1 16 0 -40 -80 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 0 -40 -100 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 0 -50 -90 1 0 0 0 4 0 0 0 1 npeghol2.dat
1 16 0 -30 -80 -9 0 0 0 -8 0 0 0 -9 2-4cylo.dat
1 16 0 -30 -100 -9 0 0 0 -8 0 0 0 9 2-4cylo.dat
1 16 0 -38 -80 9 0 0 0 -1 0 0 0 -9 2-4ndis.dat
1 16 0 -50 -80 9 0 0 0 2 0 0 0 9 2-4cyli.dat
1 16 0 -50 -80 9 0 0 0 1 0 0 0 9 2-4edge.dat
1 16 0 -50 -100 -9 0 0 0 2 0 0 0 -9 2-4cyli.dat
1 16 0 -50 -100 -9 0 0 0 1 0 0 0 -9 2-4edge.dat
1 16 0 -38 -100 9 0 0 0 -1 0 0 0 9 2-4ndis.dat
1 16 0 -42 -100 9 0 0 0 1 0 0 0 -9 2-4edge.dat
1 16 0 -42 -100 9 0 0 0 1 0 0 0 -9 2-4ndis.dat
1 16 0 -40 -120 0 0 10 2 0 0 0 1 0 rect.dat
1 16 0 -40 -140 12.81 0 0 0 12.81 0 0 0 12.81 4-8sphe.dat
0 // Faces
3 16 0 -10 -49 -10 -10 -50 10 -10 -50
3 16 0 -10 -31 10 -10 -20 -10 -10 -20
4 16 10 -10 -20 14 10 -20 -14 10 -20 -10 -10 -20
4 16 14 10 -20 6.36 10 -22 -6.36 10 -22 -14 10 -20
3 16 -10 -10 -50 0 -6 -50 10 -10 -50
3 16 -10 -38 -120 0 -38 -109 10 -38 -120
3 16 10 -42 -120 0 -42 -109 -10 -42 -120
0 // Edges
2 24 -14 10 -20 14 10 -20
2 24 6.36 -6 -50 -6.36 -6 -50
2 24 11.2 -38.37 -99.21 9 -30 -100
0 // Conditional lines
5 24 0 -44.9024 -128.1648 0 -40 -127.19 -4.9024 -40 -128.1648 4.9024 -40 -128.1648
5 24 0 -49.058 -130.942 0 -44.9024 -128.1648 -5.6274 -45.6274 -129.9621 5.6274 -45.6274 -129.9621
5 24 0 -51.8352 -135.0976 0 -49.058 -130.942 -5.6274 -50.0379 -134.3726 5.6274 -50.0379 -134.3726
5 24 0 -52.81 -140 0 -51.8352 -135.0976 -4.9024 -51.8352 -140 4.9024 -51.8352 -140
5 24 0 -52.81 -140 0 -51.8352 -144.9024 -4.9024 -51.8352 -140 4.9024 -51.8352 -140
5 24 0 -51.8352 -144.9024 0 -49.058 -149.058 -5.6274 -50.0379 -145.6274 5.6274 -50.0379 -145.6274
5 24 0 -49.058 -149.058 0 -44.9024 -151.8352 -5.6274 -45.6274 -150.0379 5.6274 -45.6274 -150.0379
5 24 0 -44.9024 -151.8352 0 -40 -152.81 -4.9024 -40 -151.8352 4.9024 -40 -151.8352
