Official File parts/51239.dat
Part Attributes:
File Header:

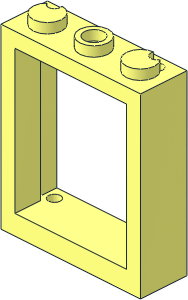

0 Window 1 x 3 x 3 Frame
0 Name: 51239.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2025-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-01-10 [GeraldLasser] added oriented corner studs
0 !HISTORY 2025-01-20 [OrionP] Official Update 2025-01
Show contents
0 // Sill
1 16 0 68 0 1 0 0 0 -1 0 0 0 1 stug3-1x2.dat
4 16 -30 72 -10 -26 72 -6 26 72 -6 30 72 -10
4 16 -30 72 10 30 72 10 19.5 72 7.5 -19.5 72 7.5
4 16 19.7192 72 6 -19.7192 72 6 -19.5 72 7.5 19.5 72 7.5
2 24 19.7192 68 6 -19.7192 68 6
2 24 -19.7192 72 6 19.7192 72 6
4 16 -19.7192 68 6 -19.7192 72 6 19.7192 72 6 19.7192 68 6
2 24 26 64 10 -26 64 10
0 BFC INVERTNEXT
1 16 0 70 6 0 0 -26 -2 0 0 0 -12 0 box3u2p.dat
1 16 22 64 0 1 0 0 0 1 0 0 0 1 s\42205s02.dat
1 16 -22 64 0 -1 0 0 0 1 0 0 0 1 s\42205s02.dat
4 16 -19.5 68 2.5 19.5 68 2.5 26 68 -6 -26 68 -6
4 16 19.6903 68 5.9568 -19.6903 68 5.9567 -19.7192 68 6 19.7192 68 6
4 16 -19.6903 68 5.9567 19.6903 68 5.9568 19.5 68 5 -19.5 68 5
4 16 -19.5 68 2.5 -19.5 68 5 19.5 68 5 19.5 68 2.5
2 24 -30 72 10 30 72 10
2 24 30 72 -10 -30 72 -10
4 16 -26 64 10 26 64 10 30 72 10 -30 72 10
4 16 24 64 -10 -24 64 -10 -30 72 -10 30 72 -10
4 16 24 64 1 19.5 64 2.5 -19.5 64 2.5 -24 64 1
4 16 -26 64 10 -19.5 64 7.5 19.5 64 7.5 26 64 10
4 16 -19.5 64 2.5 19.5 64 2.5 19.5 64 5 -19.5 64 5
4 16 -19.5 64 7.5 -19.5 64 5 19.5 64 5 19.5 64 7.5
4 16 -24 64 -10 24 64 -10 24 64 1 -24 64 1
2 24 -24 64 -10 24 64 -10
0 // Side Left
1 16 -24 35 -4.5 0 -1 0 0 0 29 -5.5 0 0 rect.dat
4 16 -26 4 1 -24 6 1 -24 64 1 -26 64 1
1 16 -26 34 5.5 0 -1 0 0 0 30 -4.5 0 0 rect.dat
4 16 -30 72 -10 -24 64 -10 -24 6 -10 -30 0 -10
4 16 -30 0 10 -26 4 10 -26 64 10 -30 72 10
1 16 -30 36 0 0 1 0 0 0 36 -10 0 0 rect.dat
0 // Side Right
1 16 24 35 -4.5 0 1 0 0 0 29 -5.5 0 0 rect.dat
4 16 24 64 1 24 6 1 26 4 1 26 64 1
1 16 26 34 5.5 0 1 0 0 0 30 -4.5 0 0 rect.dat
4 16 24 6 -10 24 64 -10 30 72 -10 30 0 -10
4 16 26 64 10 26 4 10 30 0 10 30 72 10
1 16 30 36 0 0 -1 0 0 0 36 -10 0 0 rect.dat
0 // Top
1 16 0 6 -4.5 -24 0 0 0 -1 0 0 0 5.5 rect2p.dat
4 16 26 4 1 24 6 1 -24 6 1 -26 4 1
2 24 -26 4 1 26 4 1
4 16 26 4 10 19.5 4 7.5 -19.5 4 7.5 -26 4 10
4 16 -19.5 4 2.5 19.5 4 2.5 26 4 1 -26 4 1
4 16 19.5 4 2.5 -19.5 4 2.5 -19.5 4 5 19.5 4 5
4 16 19.5 4 7.5 19.5 4 5 -19.5 4 5 -19.5 4 7.5
2 24 26 4 10 -26 4 10
1 16 20 0 0 1 0 0 0 1 0 0 0 1 s\42205s01.dat
1 16 -20 0 0 -1 0 0 0 1 0 0 0 1 s\42205s01.dat
4 16 26 4 10 -26 4 10 -30 0 10 30 0 10
4 16 24 6 -10 30 0 -10 -30 0 -10 -24 6 -10
2 24 30 0 -10 -30 0 -10
2 24 -30 0 10 30 0 10
4 16 -19.5 0 7.5 -14 0 6 14 0 6 19.5 0 7.5
4 16 -14 0 0 14 0 0 14 0 6 -14 0 6
4 16 14 0 0 -14 0 0 -14 0 -6 14 0 -6
4 16 30 0 -10 14 0 -6 -14 0 -6 -30 0 -10
4 16 -19.5 0 7.5 19.5 0 7.5 30 0 10 -30 0 10
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 20 0 0 1 0 0 0 1 0 0 0 1 studhr.dat
1 16 -20 0 0 1 0 0 0 1 0 0 0 1 studhl.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2019-07-15 19:55:02
missed a line
2019-07-31 12:50:01
Missing an edge line, and one triangle could be moved to the subfile
2 4 2 0 1 4 0 1
3 4 -1.7678 8 6.7678 -2.2808 8 6 -2.5 8 7.5
2 4 2 0 1 4 0 1
3 4 -1.7678 8 6.7678 -2.2808 8 6 -2.5 8 7.5
2019-08-04 09:30:01
Sorry,
Line 39: Incorrect use of command for comment lines. 0 //Side Left
Looks like a Space is missing
Line 39: Incorrect use of command for comment lines. 0 //Side Left
Looks like a Space is missing
corrected comment
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2019-08-18 16:30:01
2019-08-20 12:30:01
2022-12-19 22:55:01
2024-06-29 23:52:32
added orientd corner studs
2025-01-11 11:03:43
2025-01-11 11:04:44
* Could use a box for:
4 16 -24 64 -10 24 64 -10 24 64 1 -24 64 1
4 16 -24 64 1 -24 6 1 -24 6 -10 -24 64 -10
4 16 24 64 1 24 6 1 24 6 -10 24 64 -10
4 16 24 6 1 24 6 -10 -24 6 -10 -24 6 1
4 16 -24 64 -10 24 64 -10 24 64 1 -24 64 1
4 16 -24 64 1 -24 6 1 -24 6 -10 -24 64 -10
4 16 24 64 1 24 6 1 24 6 -10 24 64 -10
4 16 24 6 1 24 6 -10 -24 6 -10 -24 6 1
2025-01-12 17:31:57
2025-01-18 23:03:17
2025-01-20 03:34:52
Release 2025-01
