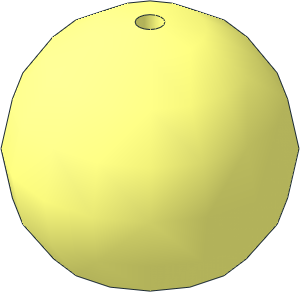

0 Minifig Helmet Round Fishbowl
0 Name: 51283.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Minifig Headwear

0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\51283s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\51283s01.dat

1 16 0 24 0 1 0 0 0 -1 0 0 0 1 4-4ring13.dat
1 16 0 24 0 14 0 0 0 1 0 0 0 14 4-4edge.dat
1 16 0 24 0 13 0 0 0 1 0 0 0 13 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 24 0 13 0 0 0 -24 0 0 0 13 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 0 0 1 0 0 0 -2 0 0 0 1 4-4con12.dat
0 BFC INVERTNEXT
1 16 0 -2 0 4 0 0 0 -2 0 0 0 4 4-4con2.dat

1 16 0 -4 0 0 0 8 0 1 0 8 0 0 3-16edge.dat
1 16 0 -4 0 0 0 -8 0 1 0 8 0 0 3-16edge.dat
1 16 0 -4 0 0 0 8 0 1 0 -8 0 0 3-16edge.dat
1 16 0 -4 0 0 0 -8 0 1 0 -8 0 0 3-16edge.dat
2 24 7.391 -4 3.062 7.702 -4 1.5
2 24 -7.702 -4 1.5 -7.3912 -4 3.0616
2 24 -7.702 -4 -1.5 -7.3912 -4 -3.0616
2 24 7.391 -4 -3.062 7.702 -4 -1.5
2 24 5.702 -4 -1.5 6 -4 0
2 24 5.702 -4 1.5 6 -4 0
2 24 -6 -4 0 -5.702 -4 -1.5
2 24 -6 -4 0 -5.702 -4 1.5
4 16 -8 -4 0 -6 -4 0 -5.702 -4 -1.5 -7.702 -4 -1.5
2 24 -7.702 -4 -1.5 -5.702 -4 -1.5
2 24 -7.702 -4 1.5 -5.702 -4 1.5
4 16 7.702 -4 -1.5 5.702 -4 -1.5 6 -4 0 8 -4 0
4 16 6 -4 0 5.702 -4 1.5 7.702 -4 1.5 8 -4 0
2 24 5.702 -4 -1.5 7.702 -4 -1.5
2 24 5.702 -4 1.5 7.702 -4 1.5
4 16 -8 -4 0 -7.702 -4 1.5 -5.702 -4 1.5 -6 -4 0
5 24 -8 -4 0 -7.702 -4 1.5 -6 -4 0 -12 -2 0
5 24 -7.702 -4 -1.5 -8 -4 0 -6 -4 0 -12 -2 0
5 24 7.702 -4 -1.5 8 -4 0 6 -4 0 12 -2 0
5 24 7.702 -4 1.5 8 -4 0 6 -4 0 12 -2 0

1 16 0 -4 0 1 0 0 0 -1 0 0 0 1 stud16a.dat
0 BFC INVERTNEXT
1 16 0 -6.5 0 6 0 0 0 2.5 0 0 0 6 4-4cyli.dat
1 16 0 -6.5 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 -6.5 0 2 0 0 0 -1 0 0 0 2 4-4ring1.dat
1 16 0 -6.5 0 2 0 0 0 -1 0 0 0 2 4-4ring2.dat
0 BFC INVERTNEXT
1 16 0 -6.5 0 2 0 0 0 -3.102 0 0 0 2 4-4cylo.dat

5 24 12.0107 0 4.9751 13 0 0 12 -2 0 13 24 0
5 24 9.1923 0 9.1923 12.0107 0 4.9751 11.0868 -2 4.5924 12.0107 24 4.9751
5 24 4.9751 0 12.0107 9.1923 0 9.1923 8.4852 -2 8.4852 9.1923 24 9.1923
5 24 0 0 13 4.9751 0 12.0107 4.5924 -2 11.0868 4.9751 24 12.0107
5 24 -4.9751 0 12.0107 0 0 13 0 -2 12 0 24 13
5 24 -9.1923 0 9.1923 -4.9751 0 12.0107 -4.5924 -2 11.0868 -4.9751 24 12.0107
5 24 -12.0107 0 4.9751 -9.1923 0 9.1923 -8.4852 -2 8.4852 -9.1923 24 9.1923
5 24 -13 0 0 -12.0107 0 4.9751 -11.0868 -2 4.5924 -12 24 4.9751
5 24 -12.0107 0 -4.9751 -13 0 0 -12 -2 0 -13 24 0
5 24 -9.1923 0 -9.1923 -12.0107 0 -4.9751 -11.0868 -2 -4.5924 -12.0107 24 -4.9751
5 24 -4.9751 0 -12.0107 -9.1923 0 -9.1923 -8.4852 -2 -8.4852 -9.1923 24 -9.1923
5 24 0 0 -13 -4.9751 0 -12.0107 -4.5924 -2 -11.0868 -4.9751 24 -12.0107
5 24 4.9751 0 -12.0107 0 0 -13 0 -2 -12 0 24 -13
5 24 9.1923 0 -9.1923 4.9751 0 -12.0107 4.5924 -2 -11.0868 4.9751 24 -12.0107
5 24 12.0107 0 -4.9751 9.1923 0 -9.1923 8.4852 -2 -8.4852 9.1923 24 -9.1923
5 24 13 0 0 12.0107 0 -4.9751 11.0868 -2 -4.5924 12 24 -4.9751

5 24 11.0868 -2 4.5924 12 -2 0 13 0 0 8 -4 0
5 24 11.0868 -2 4.5924 8.4852 -2 8.4852 12.0107 0 4.9751 7.391 -4 3.062
5 24 4.5924 -2 11.0868 8.4852 -2 8.4852 9.1923 0 9.1923 5.6568 -4 5.6568
5 24 0 -2 12 4.5924 -2 11.0868 4.9751 0 12.0107 3.0616 -4 7.3912
5 24 -4.5924 -2 11.0868 0 -2 12 0 0 13 0 -4 8
5 24 -4.5924 -2 11.0868 -8.4852 -2 8.4852 -4.9751 0 12.0107 -3.062 -4 7.391
5 24 -11.0868 -2 4.5924 -8.4852 -2 8.4852 -9.1923 0 9.1923 -5.6568 -4 5.6568
5 24 -12 -2 0 -11.0868 -2 4.5924 -12.0107 0 4.9751 -7.3912 -4 3.0616
5 24 -11.0868 -2 -4.5924 -12 -2 0 -13 0 0 -8 -4 0
5 24 -11.0868 -2 -4.5924 -8.4852 -2 -8.4852 -12.0107 0 -4.9751 -7.391 -4 -3.062
5 24 -4.5924 -2 -11.0868 -8.4852 -2 -8.4852 -9.1923 0 -9.1923 -5.6568 -4 -5.6568
5 24 0 -2 -12 -4.5924 -2 -11.0868 -4.9751 0 -12.0107 -3.0616 -4 -7.3912
5 24 4.5924 -2 -11.0868 0 -2 -12 0 0 -13 0 -4 -8
5 24 4.5924 -2 -11.0868 8.4852 -2 -8.4852 4.9751 0 -12.0107 3.062 -4 -7.391
5 24 11.0868 -2 -4.5924 8.4852 -2 -8.4852 9.1923 0 -9.1923 5.6568 -4 -5.6568
5 24 12 -2 0 11.0868 -2 -4.5924 12.0107 0 -4.9751 7.3912 -4 -3.0616

0 // Condlines to merge semi-spheres
5 24 2 -9.602 0 7.654 -8.478 0 7.071 -8.478 -2.929 7.071 -8.478 2.929
5 24 7.654 -8.478 0 14.142 -4.142 0 13.066 -4.142 -5.412 13.066 -4.142 5.412
5 24 14.142 -4.142 0 18.478 2.346 0 17.071 2.346 -7.071 17.071 2.346 7.071
5 24 18.478 2.346 0 20 10 0 18.478 10 7.654 18.478 10 -7.654
5 24 20 10 0 18.478 17.654 0 17.071 17.654 7.071 17.071 17.654 -7.071
5 24 18.478 17.654 0 14 24 0 12.9346 24 5.3578 12.9346 24 -5.3578
5 24 -2 -9.602 0 -7.654 -8.478 0 -7.071 -8.478 -2.929 -7.071 -8.478 2.929
5 24 -7.654 -8.478 0 -14.142 -4.142 0 -13.066 -4.142 -5.412 -13.066 -4.142 5.412
5 24 -14.142 -4.142 0 -18.478 2.346 0 -17.071 2.346 -7.071 -17.071 2.346 7.071
5 24 -18.478 2.346 0 -20 10 0 -18.478 10 7.654 -18.478 10 -7.654
5 24 -20 10 0 -18.478 17.654 0 -17.071 17.654 7.071 -17.071 17.654 -7.071
5 24 -18.478 17.654 0 -14 24 0 -12.9346 24 5.3578 -12.9346 24 -5.3578

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2019-06-16 22:10:02

Interesting new superhero helmet in set 76128 and 76129

It is basically a cropped sphere.

The gap of the inner stud extends a bit into the sphere in the real part. I did not model this as it seems that it has no functionality.

Philippe Hurbain [Philo]

made the following comment.

2019-06-17 05:55:01

For the bottom of stud tube, it's more economical (triangle wise) to use ndis + 4x (1-4chrd+quad)

Magnus Forsberg [MagFors]

made the following comment.

2019-06-27 16:05:01

Is Fishbowl the correct technical term to use here ? ;-)

Gerald Lasser [GeraldLasser]

made the following comment.

2019-06-27 17:30:01

Spherical?

[PTadmin]

edited the part header.

2019-06-28 06:40:02

Max Martin Richter [MMR1988]

posted a vote of Certify.

2021-09-29 20:10:01

I think something with describes the sperical shape would be better for the description.

Massimo Maso [Sirio]

made the following comment.

2022-11-18 21:25:01

Are you sure about the height of the hole? Following the instructions of set 10278 inside must be placed a head 3626b, but the stud does not fit.
Height should be reduced by 2LDU.

Using the part in MLCAD 3.2, strangely, it requires the primitive stu216a instead of stud16a.

Max Martin Richter [MMR1988]

made the following comment.

2022-11-19 06:40:01

I need to check for the dimension problem again

Philippe Hurbain [Philo]

made the following comment.

2022-11-19 08:25:02

"Using the part in MLCAD 3.2, strangely, it requires the primitive stu216a instead of stud16a."
See Manus' review at https://www.ldraw.org/cgi-bin/ptdetail.cgi?s=stud16a

Orion Pobursky [OrionP]

submitted a new version of the part.

2024-03-23 00:59:38

Update ring primitives via script. This will not reset the vote status of the part.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2024-03-24 18:23:00

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2024-04-30 18:30:11

Orion Pobursky [OrionP]

posted a vote of Admin Review.
