Official File parts/51344.dat
Part Attributes:

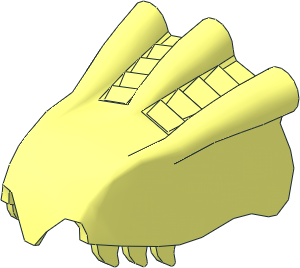

Animal Dragon Head Hungarian Horntail
File Header:
0 Animal Dragon Head Hungarian Horntail 0 Name: 51344.dat 0 Author: Willy Tschager [Holly-Wood] 0 !LDRAW_ORG Part UPDATE 2023-03 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 !HELP Center Horn Position: X: 0 Y: -33 Z: 5 0 !HELP Horn 1 Position: X: 30 Y: -27 Z: 5 0 !HELP Horn 2 Position: X: -30 Y: -27 Z: 5 0 !HELP Flame 1 Position: 0 !HELP 1 38 -10 0 -68.8 0 .91355 -.40674 1 0 0 0 -.40674 -.91355 6126a.dat 0 !HELP Flame 2 Position: 0 !HELP 1 38 10 0 -68.8 0 .91355 .40674 1 0 0 0 .40674 -.91355 6126a.dat 0 BFC CERTIFY CCW 0 !KEYWORDS Harry Potter 0 !HISTORY 2023-06-24 [OrionP] Official Update 2023-03
Show contents
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\51344s01.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\51344s01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\51344s02.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\51344s02.dat 0 // Stud 1 16 0 -18 -35 1 0 0 0 -4 0 0 0 1 stud4o.dat 5 24 -34.872 -24.409 -6.176 -34.296 -27.472 -6.662 -38 -27 5 -32.225 -22.983 -15.158 2 24 0 -.868 -64.256 0 -9.618 -64.256 5 24 34.872 -24.409 -6.176 34.296 -27.472 -6.662 38 -27 5 32.225 -22.983 -15.158 5 24 0 -22.932 -18.855 0 -20.81 -27 3.062 -19.79 -27.609 -3.062 -19.79 -27.609 5 24 0 -24.736 5 0 -24.251 -8.645 2.282 -24.767 -8.439 -2.282 -24.767 -8.439 5 24 0 -28.942 -26.424 0 -34.304 -16.584 1.817 -28.625 -26.32 -1.817 -28.625 -26.32 5 24 0 -22.704 -35.306 0 -28.942 -26.424 -1.817 -28.625 -26.32 1.817 -28.625 -26.32 5 24 0 -20.81 -27 0 -2 -27 3.062 -2 -27.609 -3.062 -2 -27.609 5 24 24.402 -31.804 -7.348 26.938 -34.391 5 21.946 -30.069 -7.073 30 -35 5 5 24 0 -23.54 -51.75 0 -22.704 -35.306 -1.339 -22.315 -35.301 1.339 -22.315 -35.301 5 24 0 -.185 -73.356 0 2.602 -75.803 -3.505 0 -73.881 3.505 0 -73.881 5 24 0 -13.868 -73.584 0 -22.516 -60.109 -17.059 -18.356 -60.248 17.059 -18.356 -60.248 2 24 0 -18.051 -61.514 0 -.868 -61.519 5 24 0 -6.656 -77.496 0 -13.868 -73.584 12.224 -4.751 -76.08 -12.224 -4.751 -76.08 5 24 0 -34.304 -16.584 0 -38.018 -7.382 2.898 -37.409 -7.285 -2.898 -37.409 -7.285 5 24 -26.938 -34.391 5 -24.402 -31.804 -7.348 -30 -35 5 -21.946 -30.069 -7.073 5 24 0 -2 -43 0 -18.676 -43 3.062 -17.972 -42.391 -3.062 -17.972 -42.391 5 24 0 -24.251 -8.645 0 -22.932 -18.855 -2.282 -24.767 -8.439 2.282 -24.767 -8.439 2 24 0 -9.618 -68.361 0 -.868 -68.361 5 24 0 1.481 -79.621 0 -6.656 -77.496 -6.335 1.506 -78.846 6.335 1.506 -78.846 5 24 0 -22.516 -60.109 0 -23.54 -51.75 16.591 -19.935 -51.647 -16.591 -19.935 -51.647 5 24 0 -38.018 -7.382 0 -41 5 2.898 -37.409 -7.285 -2.898 -37.409 -7.285 5 24 0 -.868 -68.361 0 -.185 -73.356 1.94 -.765 -70.366 -1.94 -.765 -70.366 5 24 0 7.598 -80.306 0 1.481 -79.621 2.235 7.664 -80.121 -2.235 7.664 -80.121 5 24 0 -18.676 -43 0 -19.285 -52.574 -18.269 -15.16 -52.701 18.269 -15.16 -52.701 5 24 0 -18.051 -61.514 0 -19.285 -52.574 11.467 -16.461 -56.498 -11.467 -16.461 -56.498
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Stan Isachenko [angmarec]
Part Author
initially submitted the part.
2011-11-05 21:50:07
Steffen [Steffen]
Senior Part Reviewer
posted a vote of Certify.
2014-11-27 23:00:01
Steffen [Steffen]
Senior Part Reviewer
posted a vote of Hold.
2014-12-13 00:45:00
the 3 rear holes for the 3 horns don't fit the pins of the horns
(they are too small)

1 16 0 0 0 1 0 0 0 1 0 0 0 1 52258.dat
1 16 0 0.106 -170 1 0 0 0 1 0 0 0 1 51344.dat
1 16 0 16 160 0 1 0 -1 0 0 0 0 1 40395.dat
1 4 0 -33 -165 1 0 0 0 1 0 0 0 1 40379.dat
1 4 30 -27 -165 1 0 0 0 1 0 0 0 1 40379.dat
1 4 -30 -27 -165 1 0 0 0 1 0 0 0 1 40379.dat
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2015-10-23 08:10:00
the rear holes are fine, the positioning of the horns was a bit off in the example above, using the date where the cylinders are located the fit well.

Head
1 16 0 0.106 -170 1 0 0 0 1 0 0 0 1 51344.dat
Horns
1 4 0 -32.63 -165 1 0 0 0 1 0 0 0 1 40379.dat
1 4 30.158 -26.894 -165 1 0 0 0 1 0 0 0 1 40379.dat
1 4 -30.158 -26.894 -165 1 0 0 0 1 0 0 0 1 40379.dat

Contains scaled flat subfiles

It could use a help line to position the horns correctly.

What do you think?
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part.
2015-10-23 08:30:00
Corrected scaled subfiles and added !HELP line

Existing certification-votes were deleted.
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2015-11-01 18:40:00
Why are the primitives placed in the main file?
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2020-10-21 12:40:01
Saw that the main body is certified,

so touching up the file and moving prims, refining
Max Martin Richter [MMR1988]
Senior Part Reviewer
posted a vote of Hold.
2021-09-05 10:00:01
There is BFC error with this subpart:

1 4 -15.762 0 0 0 1 0 1.85 0 0 0 0 1.85 4-4disc.dat
Max Martin Richter [MMR1988]
Senior Part Reviewer
submitted a new version of the part.
2022-01-02 21:30:01
Fixed BFC problem, changed cyli+disc+edge+edge to cylc prims

Existing certification-votes were deleted.
[PTadmin]
Part Author
edited the part header.
2022-03-06 17:50:01
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2022-03-06 17:50:01
added history
[PTadmin]
Part Author
edited the part header.
2022-03-16 20:50:01
Max Martin Richter [MMR1988]
Senior Part Reviewer
made the following comment.
2022-03-16 20:50:01
Added history line as well.
[PTadmin]
Part Author
edited the part header.
2022-03-25 16:00:01
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify.
2022-04-11 14:25:02
[PTadmin]
Part Author
edited the part header.
2022-09-14 16:45:01
Willy Tschager [Holly-Wood]
Senior Part Reviewer
submitted a new version of the part.
2022-09-26 12:15:02
Rewrote subfile, substituted geometry with stud, added Help for flames

Existing certification-votes were deleted.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Hold.
2022-09-26 13:25:02
Auto-Hold. Forgot about the pattern.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
submitted a new version of the part.
2022-09-29 10:25:01
Subfiled patternable area

Existing certification-votes were deleted.
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2022-10-07 15:45:02
Could we please have these shapes better adapted to the horns?
2 24 0 -40.776 5 -3.944 -39.744 5
2 24 -3.944 -39.744 5 -7.455 -34.88 5
2 24 -37.584 -29.145 5 -32.094 -34.473 5
2 24 -35.807 -21.704 5 -37.584 -29.145 5
2 24 -24.71 -32.475 5 -21.684 -27.696 5
2 24 -32.094 -34.473 5 -24.71 -32.475 5
2 24 -8.403 -31.06 5 -7.455 -34.88 5
Willy Tschager [Holly-Wood]
Senior Part Reviewer
submitted a new version of the part.
2022-10-09 18:50:02
Sanded part

Existing certification-votes were deleted.
[PTadmin]
Part Author
edited the part header.
2022-10-09 19:05:01
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Certify.
2023-03-29 16:52:12
Vincent Messenet [Cheenzo]
Part Header Editor
posted a vote of Certify.
2023-04-15 08:00:33
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2023-06-22 20:50:59
Orion Pobursky [OrionP]
Part Library Admin
2023-06-24 02:37:22
Release 2023-03
