File Detail parts/52985.dat

Official File parts/52985.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

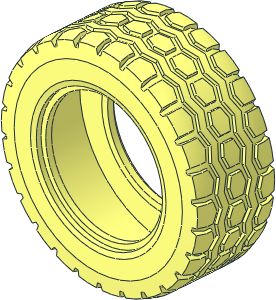

0 Tyre 27/ 48 x 43
0 Name: 52985.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS 68.7 x 27 S, Batmobile, Set 76139

0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-07-29 [OrionP] Official Update 2024-06

Show contents

0 // Nomenclature: width_(mm)/profile_as_percentage_of_width x rim_diameter_(mm)

0 BFC INVERTNEXT
1 16 0 0 33 0 0 -54 54 0 0 0 -4 0 48\4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 29 0 0 -50 50 0 0 0 -5 0 48\4-4cylo.dat
1 16 0 0 29 0 0 2 2 0 0 0 -1 0 48\4-4ring25.dat
1 16 0 0 29 0 0 2 2 0 0 0 -1 0 48\4-4ring26.dat
1 16 0 0 24 0 0 -5 5 0 0 0 1 0 48\4-4ring10.dat
1 16 0 0 24 0 0 -55 55 0 0 0 1 0 48\4-4edge.dat
1 16 0 0 30 0 0 -60 60 0 0 0 1 0 48\4-4edge.dat
1 16 0 0 30 0 0 -5 5 0 0 0 -6 0 48\4-4con11.dat
1 16 0 0 30 0 0 -20 20 0 0 0 1 0 48\4-4ring3.dat
0 BFC INVERTNEXT
1 16 0 0 -30 0 0 -80 80 0 0 0 60 0 48\4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -33 0 0 54 54 0 0 0 4 0 48\4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -29 0 0 50 50 0 0 0 5 0 48\4-4cylo.dat
1 16 0 0 -29 0 0 -2 2 0 0 0 1 0 48\4-4ring25.dat
1 16 0 0 -29 0 0 -2 2 0 0 0 1 0 48\4-4ring26.dat
1 16 0 0 -24 0 0 5 5 0 0 0 -1 0 48\4-4ring10.dat
1 16 0 0 -24 0 0 55 55 0 0 0 -1 0 48\4-4edge.dat
1 16 0 0 -30 0 0 60 60 0 0 0 -1 0 48\4-4edge.dat
1 16 0 0 -30 0 0 5 5 0 0 0 6 0 48\4-4con11.dat

1 16 0 0 -30 0 0 20 20 0 0 0 -1 0 48\4-4ring3.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\52985s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\52985s01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\52985s01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 -1 s\52985s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\52985s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\52985s01.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\52985s01.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 -1 s\52985s01.dat
1 16 0 0 0 -.120536 -.992709 0 .992709 -.120536 0 0 0 1 s\52985s02.dat
1 16 0 0 0 -.120536 -.992709 0 .992709 -.120536 0 0 0 -1 s\52985s02.dat
1 16 0 0 0 .120536 .992709 0 -.992709 .120536 0 0 0 1 s\52985s02.dat
1 16 0 0 0 .120536 .992709 0 -.992709 .120536 0 0 0 -1 s\52985s02.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2020-01-21 09:10:01

subfiles may change depending if I stick to the tread division of 1/26th or design it to a 1/4 sub-file

Magnus Forsberg [MagFors]

made the following comment.

2020-01-27 17:55:01

The description is missing space. Also inte subfiles.
Tyre 27/ 48 x 43

I like the subfiling.

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2020-03-07 22:30:01

added complementary cond-lines and corrected naming

Existing certification-votes were deleted.

Magnus Forsberg [MagFors]

posted a vote of Hold.

2020-03-16 21:40:01

Don't you need a set of edgelines between the subfiles too?

Max Martin Richter [MMR1988]

submitted a new version of the part.

2020-11-22 21:15:01

Regenerated condlines due to changes in the subfiles.

Existing certification-votes were deleted.

Orion Pobursky [OrionP]

submitted a new version of the part.

2024-03-23 00:59:38

Update ring primitives via script. This will not reset the vote status of the part.

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2024-03-25 12:34:27

* Two conds missing:

5 24 -9.61776608539 -79.208972330958 -33.34654 -1.272720044624 -79.712221178168 -33.34714 -2.549127382248 -83.844854582661 -33 0 -75.6 -33.7
5 24 -9.61776608539 -79.208972330958 33.34654 -1.272720044624 -79.712221178168 33.34714 -2.549127382248 -83.844854582661 33 0 -75.6 33.7

* Rounding?

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2024-07-01 13:22:13

all conds added in subfile

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2024-07-24 20:43:29

Philippe Hurbain [Philo]

posted a vote of Certify.

2024-07-25 07:42:49

Orion Pobursky [OrionP]

posted a vote of Admin Review.
