File Detail parts/53531c01.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/53531c01.dat

Part Attributes: Base Part: 53531.dat

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

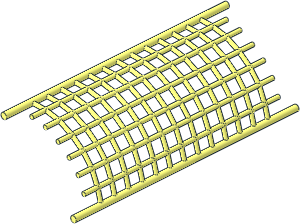

Net 16 x 8 Soccer Goal Back (Formed to fit 48298)

File Header:

0 Net 16 x  8 Soccer Goal Back (Formed to fit 48298)
0 Name: 53531c01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Shortcut UPDATE 2025-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP Complete soccer goal:
0 !HELP 1 16 150 0 0 1 0 0 0 1 0 0 0 1 48298.dat
0 !HELP 1 16 -150 0 0 1 0 0 0 1 0 0 0 1 48298.dat
0 !HELP 1 16 0 -110 -50 1 0 0 0 1 0 0 0 1 53531-f1.dat

0 BFC CERTIFY CCW

0 !CATEGORY Minifig Accessory
0 !KEYWORDS BrickLink 53531, Fence, Grand Soccer Stadium, Hockey, lattice
0 !KEYWORDS Rebrickable 53531, Set 3569, Sports

0 !PREVIEW 16 0 0 0 0 0 1 0 1 0 -1 0 0

0 !HISTORY 2025-04-27 [OrionP] Official Update 2025-04

Show contents

1 16 -160 0 0 0 320 0 0 0 -4 -4 0 0 4-4cylc.dat
1 16 160 0 0 0 -1 0 0 0 -4 -4 0 0 4-4disc.dat
1 16 -160 80 100 0 320 0 0 0 4 4 0 0 4-4cylc.dat
1 16 160 80 100 0 -1 0 0 0 4 4 0 0 4-4disc.dat
1 16 -140 1 20 0 280 0 0 0 2.66667 2.66667 0 0 4-4cylc.dat
1 16 -140 5.3 39.5 0 280 0 0 0 2.66667 2.66667 0 0 4-4cylc.dat
1 16 -140 14.8 57.7 0 280 0 0 0 2.66667 2.66667 0 0 4-4cylc.dat
1 16 -140 27 73.5 0 280 0 0 0 2.66667 2.66667 0 0 4-4cylc.dat
1 16 -140 42.3 86.4 0 280 0 0 0 2.66667 2.66667 0 0 4-4cylc.dat
1 16 -140 61 94.6 0 280 0 0 0 2.66667 2.66667 0 0 4-4cylc.dat

1 16 140 1 20 0 -1 0 0 0 2.66667 2.66667 0 0 4-4disc.dat
1 16 140 5.3 39.5 0 -1 0 0 0 2.66667 2.66667 0 0 4-4disc.dat
1 16 140 14.8 57.7 0 -1 0 0 0 2.66667 2.66667 0 0 4-4disc.dat
1 16 140 27 73.5 0 -1 0 0 0 2.66667 2.66667 0 0 4-4disc.dat
1 16 140 42.3 86.4 0 -1 0 0 0 2.66667 2.66667 0 0 4-4disc.dat
1 16 140 61 94.6 0 -1 0 0 0 2.66667 2.66667 0 0 4-4disc.dat

1 16 0 110 50 1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 0 110 50 -1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 -20 110 50 1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 -20 110 50 -1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 -40 110 50 1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 -40 110 50 -1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 -60 110 50 1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 -60 110 50 -1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 -80 110 50 1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 -80 110 50 -1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 -100 110 50 1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 -100 110 50 -1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 -120 110 50 1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 -120 110 50 -1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat

1 16 20 110 50 1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 20 110 50 -1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 40 110 50 1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 40 110 50 -1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 60 110 50 1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 60 110 50 -1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 80 110 50 1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 80 110 50 -1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 100 110 50 1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 100 110 50 -1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 120 110 50 1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat
1 16 120 110 50 -1 0 0 0 1 0 0 0 1 s\53531-f1s01.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2022-01-06 13:35:01

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2025-03-16 11:03:25

* Part is fine. Ref in the description is wrong:

https://www.bricklink.com/v2/catalog/catalogitem.page?P=48298

should contain a HELP with the code to build a complete net.

Philippe Hurbain [Philo]

submitted a new version of the part.

2025-03-16 16:05:05

Corrected wrong side ref., added !HELP

Willy Tschager [Holly-Wood]

edited the part header.

2025-03-17 15:23:23

Header Edits

preview:
16 0 0 0 1 0 0 0 1 0 0 0 1
to
16 0 0 0 0 0 1 0 1 0 -1 0 0
keywords:
Fence, Grand Soccer Stadium, Hockey, lattice, Set 3569, Sports
to
Fence, Grand Soccer Stadium, Hockey, Set 3569, Sports, lattice

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2025-03-17 15:23:48

Rene Rechthaler [Blechtaler]

posted a vote of Certify.

2025-04-10 10:43:44

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2025-04-17 15:41:11

Orion Pobursky [OrionP]

posted a vote of Hold.

2025-04-17 15:42:44

This part needs to either be "c01" or, if we want to go the flex route, "-f2" and 53531 moved to "-f1"

Philippe Hurbain [Philo]

made the following comment.

2025-04-17 18:02:17

Since we have no segments to build other shapes, I guess c01 would be better. other opinions?

Chris Böhnke [KnightOfTarenta]

made the following comment.

2025-04-17 19:04:42

More close to a formed cloth part in concept than a hose or a chain for sure. So I guess yes?

Is the definition here still up to date?
https://www.ldraw.org/part-number-spec.html#shortcut_mov

To my knowledge pre-formed hoses/strings/rubber bands/chains are not valid for the library anyways.

Rene Rechthaler [Blechtaler]

made the following comment.

2025-04-17 19:15:49

"To my knowledge pre-formed hoses/strings/rubber bands/chains are not valid for the library anyways."
thats correct for the flex-elements with many uses, but this special net is (an can only get) formed in this special way.
So yes, its more like the capes or the sails.
But the rules also say: "In all cases, the final assembly will have a suffix of -fN. The default or "at-rest" position will always be -f1"
-> this part should be f2 then

Chris Böhnke [KnightOfTarenta]

made the following comment.

2025-04-17 20:07:37

That's basically the problem - if we stick to the words of that definition, sails and capes should follow that rule as well (which they currently don't do in most cases).

Am I missing a point here?

Rene Rechthaler [Blechtaler]

made the following comment.

2025-04-17 20:34:21

i think the "pre-formed hoses/strings/rubber bands/chains are not valid for the library" would rather apply to this:
https://library.ldraw.org/parts/26199
https://library.ldraw.org/parts/26200
(thats why these have holds)
in some extend, it could also include this: https://library.ldraw.org/parts/24416

Chris Böhnke [KnightOfTarenta]

made the following comment.

2025-04-17 21:01:11

The hose clearly - base part can theoretically be reduced to a "1 dimensional object". The stretcher thingy is quite weird... I'd argue the base part is more a 2-dimensional object rather than 1-dimensional, but I somewhat get your point.

What gives me a bit of a headache is the fact that the "-fx" nomenclature applies to both flexible parts (rubber, textiles, film hinge etc.) and hinge assemblies (pneumatic valves, track points).

Also what about this ("string" or "cloth"?):
https://www.bricklink.com/v2/catalog/catalogitem.page?P=71155&idColor=11#T=C&C=11

Chris Böhnke [KnightOfTarenta]

made the following comment.

2025-04-17 21:04:07

Also I somewhat dislike the idea of giving a basepart a suffix if it's not absolutely necessary.
We already have a lot of "b variants" that only exist because of obsoleted "bad geometry".

Rene Rechthaler [Blechtaler]

made the following comment.

2025-04-17 21:22:49

for the 10x10 net: there could be something like static knots with 4 connections to flex segments (normal string)
but idk how to implement this...
the base -f1 is for "unflexed straight part" (most of them arent normally straight)

Orion Pobursky [OrionP]

renamed the part.

2025-04-17 21:49:25

"parts/53531-f1.dat" to "parts/53531c01.dat"

Orion Pobursky [OrionP]

edited the part header.

2025-04-17 21:49:40

Header Edits

type:
Part
to
Shortcut

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2025-04-17 21:49:53
