Official File parts/54359.dat
Part Attributes:
File Header:

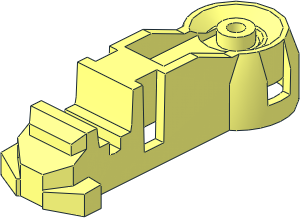

0 ~Electric Constraction Eyes 4.5 x 2 x 1.5 Light-Up Housing
0 Name: 54359.dat
0 Author: Santeri Piippo [arezey]
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-03-22 [MagFors] Moved splitted quads
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\54359s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\54359s01.dat
1 16 -10 0 0 0 20 0 -1 0 0 0 0 1 axlehol0.dat
1 16 0 3.801 3.801 10 0 0 0 0 -1.801 0 -1.801 0 box2-5.dat
1 16 0 3.801 -3.801 10 0 0 0 0 -1.801 0 1.801 0 box2-5.dat
1 16 0 -5 6.25 10 0 0 0 0 -5 0 1 .25 rect3.dat
1 16 0 5.801 -1 0 0 10 -.199 1 0 -1 0 0 rect2p.dat
1 16 0 5.801 1 0 0 10 .199 1 0 -1 0 0 rect2p.dat
1 16 0 1 5.801 0 0 10 1 0 0 -.199 1 0 rect2p.dat
1 16 0 1 -5.801 0 0 10 -1 0 0 -.199 -1 0 rect2p.dat
1 16 0 -2 -6.25 0 0 10 -2 0 0 -.25 -1 0 rect2p.dat
4 16 -7 -10 10 7 -10 10 7 -10 18 -7 -10 18
4 16 10 -10 6.5 7 -10 10 -7 -10 10 -10 -10 6.5
4 16 7 -10 20.5 -7 -10 20.5 -7 -10 18 7 -10 18
1 16 0 -6.75 20.5 0 0 7 -3.25 0 0 0 -1 0 rect.dat
3 16 0 -3.5 43.5 -6 -3.5 28.5 6 -3.5 28.5
1 16 0 -4 -8.375 0 0 10 0 1 0 -1.875 0 0 rect.dat
3 16 -6 1 53.5 0 1 59.5 6 1 53.5
4 16 6 1 53.5 6 1 28.5 -6 1 28.5 -6 1 53.5
4 16 7 -3.5 20.5 6 -3.5 28 -6 -3.5 28 -7 -3.5 20.5
4 16 -6 -3.5 28.5 -6 -3.5 28 6 -3.5 28 6 -3.5 28.5
1 16 0 13.5 -20 0 0 4 2.5 0 0 0 1 0 rect1.dat
1 16 0 8.75 -20 4 0 0 0 0 -2.25 0 1 0 rect3.dat
2 24 -5 16 -16.75 5 16 -16.75
2 24 .7143 6.5 1.25 -.7143 6.5 1.25
2 24 7 1 19 -7 1 19
4 16 -10 -4 -10.25 -7.5 -1 -13.25 7.5 -1 -13.25 10 -4 -10.25
4 16 7.5 2.3462 -13.25 -7.5 2.3462 -13.25 -4 6.5 -20 4 6.5 -20
1 16 0 .6731 -13.25 0 0 7.5 1.6731 0 0 0 1 0 rect.dat
4 16 4.5071 9.9629 -14.6797 -4.5071 9.9629 -14.6797 -4.1489 6.4598 -13.1755 4.1489 6.4598 -13.1755
4 16 4.5071 9.9629 -14.6797 5 16 -16.75 -5 16 -16.75 -4.5071 9.9629 -14.6797
4 16 2.6823 .6465 -7.0156 2.8237 .1094 -7.6094 -2.8237 .1094 -7.6094 -2.6823 .6465 -7.0156
4 16 3.3185 .875 -9.6875 3.6607 2.6231 -11.125 -3.6607 2.6231 -11.125 -3.3185 .875 -9.6875
4 16 -3.75 3.2859 -11.5 3.75 3.2859 -11.5 4.1489 6.4598 -13.1755 -4.1489 6.4598 -13.1755
4 16 2.6823 .6465 -7.0156 -2.6823 .6465 -7.0156 -2.6191 1.5 -6.75 2.6191 1.5 -6.75
4 16 1.9048 6.5 -3.75 2.2089 6.0703 -5.0273 -2.2089 6.0703 -5.0273 -1.9048 6.5 -3.75
4 16 2.2089 6.0703 -5.0273 2.4182 4.9375 -5.9063 -2.4182 4.9375 -5.9063 -2.2089 6.0703 -5.0273
4 16 .7143 6.5 1.25 1.9048 6.5 -3.75 -1.9048 6.5 -3.75 -.7143 6.5 1.25
4 16 2.5493 3.3359 -6.457 2.6191 1.5 -6.75 -2.6191 1.5 -6.75 -2.5493 3.3359 -6.457
4 16 3.6607 2.6231 -11.125 3.75 3.2859 -11.5 -3.75 3.2859 -11.5 -3.6607 2.6231 -11.125
4 16 2.4182 4.9375 -5.9063 2.5493 3.3359 -6.457 -2.5493 3.3359 -6.457 -2.4182 4.9375 -5.9063
4 16 2.8237 .1094 -7.6094 3.0376 .1113 -8.5078 -3.0376 .1113 -8.5078 -2.8237 .1094 -7.6094
4 16 3.3185 .875 -9.6875 -3.3185 .875 -9.6875 -3.0376 .1113 -8.5078 3.0376 .1113 -8.5078
3 16 .7143 6.5 1.25 -.7143 6.5 1.25 0 16 4.25
4 16 -4 16 -20 -5 16 -16.75 5 16 -16.75 4 16 -20
3 16 0 16 4.25 -7 16 7 7 16 7
4 16 7 7 7 -7 7 7 -3.5 5 10 3.5 5 10
1 16 0 -1.25 10 0 0 3.5 -6.25 0 0 0 -1 0 rect.dat
1 16 0 -2.25 17.5 3.5 0 0 0 0 5.25 0 -1.5 0 box2-5.dat
1 16 0 -7.5 13 0 0 3.5 0 -1 0 3 0 0 rect2p.dat
4 16 7 1 19 3.5 3 19 -3.5 3 19 -7 1 19
4 16 -6 1 28 -6 1 28.5 6 1 28.5 6 1 28
4 16 7 1 19 -7 1 19 -6 1 28 6 1 28
1 16 0 11.5 7 0 0 7 -4.5 0 0 0 -1 0 rect.dat
5 24 -2.5493 3.3359 -6.457 2.5493 3.3359 -6.457 -2.4182 4.9375 -5.9063 2.6191 1.5 -6.75
5 24 -3.3185 .875 -9.6875 3.3185 .875 -9.6875 3.6607 2.6231 -11.125 -3.0376 .1113 -8.5078
5 24 -10 0 -6 10 0 -6 -10 -4 -6.5 10 2 -5.602
5 24 2.8237 .1094 -7.6094 -2.8237 .1094 -7.6094 3.0376 .1113 -8.5078 -2.6823 .6465 -7.0156
5 24 -2.6823 .6465 -7.0156 2.6823 .6465 -7.0156 2.8237 .1094 -7.6094 -2.6191 1.5 -6.75
5 24 -10 0 6 10 0 6 10 -10 6.5 -10 2 5.602
5 24 -2.6191 1.5 -6.75 2.6191 1.5 -6.75 -2.5493 3.3359 -6.457 2.6823 .6465 -7.0156
5 24 3.6607 2.6231 -11.125 -3.6607 2.6231 -11.125 3.75 3.2859 -11.5 -3.3185 .875 -9.6875
5 24 -1.9048 6.5 -3.75 1.9048 6.5 -3.75 -.7143 6.5 1.25 2.2089 6.0703 -5.0273
5 24 -4.1489 6.4598 -13.1755 4.1489 6.4598 -13.1755 4.5071 9.9629 -14.6797 -3.75 3.2859 -11.5
5 24 2.2089 6.0703 -5.0273 -2.2089 6.0703 -5.0273 -1.9048 6.5 -3.75 2.4182 4.9375 -5.9063
5 24 -4.5071 9.9629 -14.6797 4.5071 9.9629 -14.6797 5 16 -16.75 -4.1489 6.4598 -13.1755
5 24 -3.0376 .1113 -8.5078 3.0376 .1113 -8.5078 -2.8237 .1094 -7.6094 3.3185 .875 -9.6875
5 24 2.4182 4.9375 -5.9063 -2.4182 4.9375 -5.9063 2.5493 3.3359 -6.457 -2.2089 6.0703 -5.0273
5 24 -3.75 3.2859 -11.5 3.75 3.2859 -11.5 -3.6607 2.6231 -11.125 4.1489 6.4598 -13.1755
5 24 10 6 0 -10 6 0 10 5.602 2 -10 5.602 -2
5 24 0 -3 65 0 1 62.5 -4.4009 -3 64.1246 4.4009 -3 64.1246
5 24 0 -3 65 0 2.5 67 -2.6339 2.5 66.7408 2.6339 2.5 66.7408
5 24 0 16 67 0 2.5 67 2.6339 16 66.7408 -2.6339 16 66.7408
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2018-04-06 09:15:01
2021-09-23 20:30:02
Adding the centre faces in the main part instead of having them in the subpart would result in a lower poly count.
Agree with Max but technically the part is fine.
2023-11-06 21:56:35
Reworked to remove; splitted quads, T-junc, "cracked" surfaces in hi-res mode
2024-05-28 19:14:02
2024-06-01 09:48:22
2024-06-04 19:42:41
2024-06-30 00:13:21
Release 2024-05
