Official File parts/54568.dat
Part Attributes:
External Sites:
External site data provided by Rebrickable.com View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

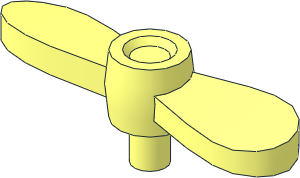

Propeller Two-Blades Twisted Cap
File Header:
0 Propeller Two-Blades Twisted Cap 0 Name: 54568.dat 0 Author: Vincent Messenet [Cheenzo] 0 !LDRAW_ORG Part UPDATE 2023-04 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !CATEGORY Figure Accessory 0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\54568s01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\54568s01.dat 1 16 0 5 0 2 0 0 0 -5 0 0 0 2 4-4cylc.dat 1 16 0 0 0 4 0 0 0 -1 0 0 0 4 4-4disc.dat 1 16 0 0 0 4 0 0 0 -1 0 0 0 4 4-4edge.dat 1 16 0 -6.75 0 2 0 0 0 1 0 0 0 2 4-4disc.dat 1 16 0 -6.75 0 2 0 0 0 -1 0 0 0 2 4-4edge.dat 1 16 0 -7.5 0 4 0 0 0 -1 0 0 0 4 4-4edge.dat 1 16 0 -7.5 0 2.66666 0 0 0 -1 0 0 0 2.66666 4-4edge.dat 1 16 0 -7.5 0 1.33333 0 0 0 1 0 0 0 1.33333 4-4ring2.dat 0 BFC INVERTNEXT 1 16 0 -7.5 0 .66666 0 0 0 .75 0 0 0 .66666 4-4con3.dat 1 16 0 -1.875 0 .2 0 0 0 1.875 0 0 0 .2 4-4con20.dat 1 16 0 -5.625 0 .2 0 0 0 -1.875 0 0 0 .2 4-4con20.dat 1 16 0 -3.75 0 .2 0 0 0 1.875 0 0 0 .2 4-4con21.dat 1 16 0 -3.75 0 .2 0 0 0 -1.875 0 0 0 .2 4-4con21.dat 5 24 -4.06516 -3.75 -1.68388 -4.4 -3.75 0 -4.2 -1.875 0 -4.2 -5.625 0 5 24 -3.11124 -3.75 3.11124 -1.68388 -3.75 4.06516 -1.60734 -1.875 3.88038 -1.60734 -5.625 3.88038 5 24 4.4 -3.75 0 4.06516 -3.75 -1.68388 3.88038 -1.875 -1.60734 3.88038 -5.625 -1.60734 5 24 -4.06516 -3.75 1.68388 -3.11124 -3.75 3.11124 -2.96982 -5.625 2.96982 -2.96982 -1.875 2.96982 5 24 3.11124 -3.75 3.11124 4.06516 -3.75 1.68388 3.88038 -1.875 1.60734 3.88038 -5.625 1.60734 5 24 -1.68388 -3.75 4.06516 0 -3.75 4.4 0 -1.875 4.2 0 -5.625 4.2 5 24 0 -3.75 -4.4 -1.68388 -3.75 -4.06516 -1.60734 -1.875 -3.88038 -1.60734 -5.625 -3.88038 5 24 1.68388 -3.75 4.06516 3.11124 -3.75 3.11124 2.96982 -1.875 2.96982 2.96982 -5.625 2.96982 5 24 4.06516 -3.75 -1.68388 3.11124 -3.75 -3.11124 2.96982 -1.875 -2.96982 2.96982 -5.625 -2.96982 5 24 0 -3.75 4.4 1.68388 -3.75 4.06516 1.60734 -1.875 3.88038 1.60734 -5.625 3.88038 5 24 4.06516 -3.75 1.68388 4.4 -3.75 0 4.2 -1.875 0 4.2 -5.625 0 5 24 1.68388 -3.75 -4.06516 0 -3.75 -4.4 0 -1.875 -4.2 0 -5.625 -4.2 5 24 3.11124 -3.75 -3.11124 1.68388 -3.75 -4.06516 1.60734 -1.875 -3.88038 1.60734 -5.625 -3.88038 5 24 -1.68388 -3.75 -4.06516 -3.11124 -3.75 -3.11124 -2.96982 -1.875 -2.96982 -2.96982 -5.625 -2.96982 5 24 -4.4 -3.75 0 -4.06516 -3.75 1.68388 -3.88038 -5.625 1.60734 -3.88038 -1.875 1.60734 5 24 -3.11124 -3.75 -3.11124 -4.06516 -3.75 -1.68388 -3.88038 -1.875 -1.60734 -3.88038 -5.625 -1.60734
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Vincent Messenet [Cheenzo]
Part Header Editor
initially submitted the part.
2020-05-20 14:30:01
My first non-patterned part from scratch
Max Martin Richter [MMR1988]
Senior Part Reviewer
posted a vote of Hold.
2020-05-20 14:45:01
Misses the condlines between the subparts.
As the subpart is simply rotated for the main part, I would add the condline at one side of the subpart. So it would be there for both sides on the main part.
Vincent Messenet [Cheenzo]
Part Header Editor
submitted a new version of the part.
2020-05-20 15:10:01
Missing edge line added on subpart

Existing certification-votes were deleted.
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2020-05-30 13:15:01
Still missing all cond lines between the subfile and primitives.
IMHO the whole centre should be made of cone primitives, and have only the blade in the subfile.
Thare a gap on the bottom side of the base of the blade.
Vincent Messenet [Cheenzo]
Part Header Editor
submitted a new version of the part.
2020-06-06 14:40:02
This is how I built it initially but then modified it to avoid T-junctions...
I was not able to locate the gap...

Existing certification-votes were deleted.
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2020-06-15 16:05:01
Missing condlines between the top and bottom half of the centre.
The edge lines on top of the blade doesn't fit the cone.
The 2 corners on the bottom side of the blade doesn't fit the cone = gaps.
Steffen [Steffen]
Senior Part Reviewer
posted a vote of Hold.
2020-07-10 23:20:01
the spelling within our library normally is "Propellor"
Vincent Messenet [Cheenzo]
Part Header Editor
submitted a new version of the part.
2020-07-14 16:55:01
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2020-08-01 14:10:02
Missing condlines between the top and bottom half of the centre.
Vincent Messenet [Cheenzo]
Part Header Editor
submitted a new version of the part.
2020-08-02 07:10:02
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Certify.
2020-09-12 13:50:02
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Certify.
2020-09-13 20:25:01
To be more like other Propellors:
"Propellor 2 Blade 2 Diameter with Pin"
All propellors are twisted so I don't see why that word is relevant in a description.
Ulrich Röder [UR]
Part Header Editor
posted a vote of Certify.
2020-09-13 21:35:01
Steffen [Steffen]
Senior Part Reviewer
made the following comment.
2020-09-13 22:10:01
yes, "Twisted" should be removed from title
[PTadmin]
Part Author
edited the part header.
2021-03-17 15:05:01
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2023-08-16 17:33:58
Orion Pobursky [OrionP]
Part Library Admin
2023-08-25 01:30:52
Release 2023-04
