Unofficial File parts/54662.dat
Part Attributes:
External Sites:
External site data provided by Rebrickable.com View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

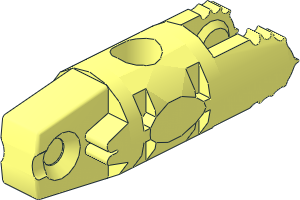

Hinge Arm Locking with Single and Dual Fingers with 7 Teeth and Hole
File Header:
0 Hinge Arm Locking with Single and Dual Fingers with 7 Teeth and Hole 0 Name: 54662.dat 0 Author: Evert-Jan Boer [ejboer] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !KEYWORDS BrickLink 30554b, click-hinge
Show contents
1 16 0 0 -10 1 0 0 0 1 0 0 0 1 clh3.dat 1 16 0 0 -10 8.316 0 -3.444 -3.444 0 -8.315 0 1 0 3-8edge.dat 1 16 0 0 -10 -8.316 0 3.444 3.444 0 8.315 0 1 0 3-8edge.dat 1 16 0 0 -10 8.316 0 -3.444 -3.444 0 -8.315 0 1 0 3-8disc.dat 1 16 0 0 -10 -8.316 0 3.444 3.444 0 8.315 0 1 0 3-8disc.dat 1 16 0 0 -7.125 9 0 0 0 0 9 0 -2.875 0 4-4cyli.dat 1 16 0 0 10 1 0 0 0 1 0 0 0 -1 s\54662s01.dat 1 16 0 0 10 -6.364 0 6.364 -6.364 0 -6.364 0 -1 0 1-4chrd.dat 1 16 0 0 10 6.364 0 -6.364 6.364 0 6.364 0 -1 0 1-4chrd.dat 3 16 -6.607 6 10 -4 6 10 -6.364 6.364 10 3 16 6.364 6.364 10 4 6 10 6.607 6 10 4 16 -4 6 10 4 6 10 6.364 6.364 10 -6.364 6.364 10 4 16 -4 6 10 -4 -6 10 4 -6 10 4 6 10 4 16 4 -6 10 -4 -6 10 -6.364 -6.364 10 6.364 -6.364 10 3 16 -6.607 -6 10 -6.364 -6.364 10 -4 -6 10 3 16 6.364 -6.364 10 6.607 -6 10 4 -6 10 1 16 0 0 7.125 9 0 0 0 0 9 0 2.875 0 4-4cyli.dat 1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\30554bs01.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30554bs01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\30554bs01.dat 1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\30554bs01.dat
Status:
Not releaseable Errors Found (HN) Errors Found (HN)
This part has the following automated holds from the Parts Tracker
Current Votes:
User Vote
Holly-Wood Hold
Official parents and subparts
Part Events:
Evert-Jan Boer [ejboer]
Part Reviewer
initially submitted the part.
2022-09-16 11:50:01
Maybe this part is already done? Could not find it.
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2022-09-17 11:00:02
Doesn't seem to be made yet, but it needs a description of what makes it different from 30554a and 30554b
Evert-Jan Boer [ejboer]
Part Reviewer
submitted a new version of the part.
2022-09-21 16:30:01
Changed description

Existing certification-votes were deleted.
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Certify.
2022-10-17 15:50:01
Max Martin Richter [MMR1988]
Senior Part Reviewer
posted a vote of Certify.
2024-01-09 21:25:26
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2024-11-09 13:46:14
Need to be bfc ccw
Evert-Jan Boer [ejboer]
Part Reviewer
submitted a new version of the part.
2024-11-10 20:20:51
Changed to CCW
Rene Rechthaler [Blechtaler]
Part Header Editor
posted a vote of Hold.
2024-11-10 21:28:28
inverted faces between the dual click hinge
Evert-Jan Boer [ejboer]
Part Reviewer
submitted a new version of the part.
2024-11-12 11:39:29
corrected issue
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Hold.
2025-04-20 10:14:37
* 30554bs01.dat is CW. Has to be fixed first.
