File Detail parts/54802.dat

Official File parts/54802.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

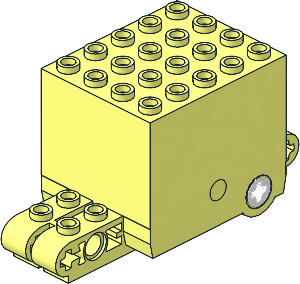

0 Motor Inertia Flywheel  4 x  9 x  3.667
0 Name: 54802.dat
0 Author: Carlos Arbesu [NXTbesu]
0 !LDRAW_ORG Shortcut UPDATE 2023-02
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Vehicle
0 !KEYWORDS BrickLink 54802c01

0 !HISTORY 2007-09-17 [NXTbesu] BFC errors fixed
0 !HISTORY 2007-09-23 [NXTbesu] Extra cleaning and better use of subparts
0 !HISTORY 2009-05-25 [NXTbesu] Subpart Filenames and filename changed
0 !HISTORY 2009-05-31 [NXTbesu] Some simplification, Rectifier'ed & Axlehol2'ed
0 !HISTORY 2012-11-19 [MagFors] Moved content to separate parts, housing and axle
0 !HISTORY 2023-03-12 [GeraldLasser] Moved Lid into extra file
0 !HISTORY 2023-04-17 [OrionP] Official Update 2023-02

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 54562.dat
1 16 -30 0 0 1 0 0 0 1 0 0 0 1 u9578.dat

1 79 0 74 30 1 0 0 0 1 0 0 0 1 u9184.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Carlos Arbesu [NXTbesu]

initially submitted the part.

2009-05-25 21:18:01

Old "parts/54802cx1.dat" renamed to "parts/54802c01.dat"

Santeri Piippo [arezey]

made the following comment.

2009-05-26 05:44:02

Good, although usually renames are done by admins renumbering parts..

Santeri Piippo [arezey]

posted a vote of Hold.

2009-05-27 07:56:01

License not specified.
Run this through DATHeader to get the header correct in one shot.

Santeri Piippo [arezey]

posted a vote of Hold.

2009-05-27 07:58:01

Holding only for above reason, but I'm quite sure the axle should be Translucent-White (colour 79) for the axle.

Also you should use axlehol2.dat for the edgelines of the axlehole instead of manually specifying them.

Perhaps also run this through Rectifier to optimize part?

Chris Dee [cwdee]

made the following comment.

2009-06-01 05:42:01

Header fixed by admin edit.

Santeri Piippo [arezey]

made the following comment.

2009-06-01 06:10:03

Santeri Piippo [arezey]

posted a vote of Hold.

2009-06-01 07:20:16

Orientation mismatch with other motor parts: 2894c01.dat, 2894c01.dat, 43560c01.dat, 32283.dat, 42288.dat and x796c01.dat

Carlos Arbesu [NXTbesu]

submitted a new version of the part.

2009-06-01 22:24:05

Axle changed to color 79.
File rectifier'ed and DATHeader'ed.
Use of axlehol2 primitive now to simplify file.
Some subassemblies moved to subpart files.
Please discard old subpart files and reload new one before donwload/use this file.
Trying to change orientation to match similar parts but not sure if correct. Please advise.

Existing certification-votes were deleted.

Santeri Piippo [arezey]

made the following comment.

2009-06-02 08:06:02

Orientation is good.
Could use stug2a.dat and stug4a.dat primitives.
The first few rectangles could be replaced with a single box5-4a.dat primitive.

Santeri Piippo [arezey]

made the following comment.

2009-06-02 08:08:02

Oh, and with White Axleholes could be removed from title. They all have white axleholes, don't they? (and it's not really White, but Translucent-White anyway..) ;-)

Santeri Piippo [arezey]

made the following comment.

2009-07-04 07:06:01

Here, too: !LDRAW_ORG line should be !LDRAW_ORG Unofficial_Part. Also, !CATEGORY is unneeded as the category defaults to the first word of the part title, if omitted.

Santeri Piippo [arezey]

made the following comment.

2009-07-04 07:16:00

One more little thing: "2.1/3" should be "2 & 1/3"

Santeri Piippo [arezey]

posted a vote of Certify.

2009-10-10 08:04:05

Well, it does go like this and admin can fix header on release.

Steffen [Steffen]

posted a vote of Hold.

2011-06-04 11:15:11

contains stray
0 BFC CERTIFY CW

[PTadmin]

edited the part header.

2012-01-15 17:15:05

Steffen [Steffen]

posted a vote of Hold.

2012-02-29 23:00:06

error still present

Michael Heidemann [mikeheide]

submitted a new version of the part.

2012-11-13 18:35:01

Corrected BFC CERTIFY CW line.

Existing certification-votes were deleted.

Michael Heidemann [mikeheide]

submitted a new version of the part.

2012-11-13 18:45:05

I had nearly forgotten how easy change of winding is with DATHeader.
So now the unnecessary 0 BFC CW line has been deleted.

Steffen [Steffen]

posted a vote of Hold.

2012-11-14 23:10:02

if this is a XXXc01, then there must be a XXX part IMHO.
this actually should be changed to being a shortcut which composes
the main part body with the white axlehole.

Magnus Forsberg [MagFors]

made the following comment.

2012-11-19 19:20:03

I've split this into two parts, Axle and Housing.

Do we know the correct numbers or shouls I use two u9??? numbers.

Should this file be renumberd to only 54802?

IMO, the name should be "Motor Flywheel 4 x 9 x 2.333"
Nearly all the other have been renamed, and don't use "Technic ..."

It could use the new splitted studs to, stud4sl and stud4sp.

Philippe Hurbain [Philo]

made the following comment.

2012-11-20 08:25:03

54802 is the whole assembly. According to LEGO replacements parts:
"FLYWHEEL 4X8X3 2/3 VER.1
Color Family: Black
Exact Color: BLACK
Category: Functional Elements
Element ID: 4285905
Design ID: 54802"
Image: http://cache.lego.com/media/bricks/5/2/4285905.jpg

54800 and 54801 are related to it, 54801 beeing a gear and 54800 the flywheel itself???.

Alex Taylor [anathema]

made the following comment.

2012-11-20 11:40:02

I prefer the 'Inertia' qualifier used by BrickLink: http://www.bricklink.com/catalogList.asp?q=flywheel

Just calling this a 'Motor' rather implies that it's electric, which is obviously not the case.

Magnus Forsberg [MagFors]

submitted a new version of the part.

2012-12-15 17:20:07

This file should be renumbered to 54802 when the housing has been renumbered.
I've sent a request to Admin.

Description changed from:
"Technic Motor Flywheel 4 x 9 x 2.333 with White Axleholes"
to
"Motor Inertia Flywheel 4 x 9 x 3.667"

Existing certification-votes were deleted.

[PTadmin]

renamed the part.

2012-12-26 07:16:39

"parts/54802c01.dat" to "parts/54802.dat."

Steffen [Steffen]

posted a vote of Certify.

2012-12-29 22:25:13

Michael Heidemann [mikeheide]

posted a vote of Certify.

2013-03-15 20:05:02

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2023-02-09 17:58:57

I seriously doubt that the whole assembly is 54802 'cos this number is stamped on the bottom of the housing.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2023-02-11 16:24:52

Quoting Joshua's answer:

"I would urge everyone to keep 54802 as the assembly, since obviously TLG has presented that publicly as the truth, and 54562 as the housing, since we know that's clearly related.
Live with the fact that we don't have a number for the lid.
Consider making u9184 into 54801 as I did. I'm not SUPER strong on this idea, but it matches what's been done in the past."

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2023-03-12 18:06:01

newly assembled

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2023-03-14 07:02:21

* Overlap:

3 1 -26 82 -20 -26 82 -16 -20 82 -48
3 9 -26 82 -16 -20 82 -48 -26 82 -24

* Already included in s01:

1 4 -4 73 30 0 -1 0 15 0 0 0 0 -15 1-8tndis.dat
1 4 -4 73 30 0 -1 0 15 0 0 0 0 15 1-8tndis.dat

* HISTORY should be compressed

Willy Tschager [Holly-Wood]

cancelled their vote.

2023-03-14 07:03:23

Picked wrong file

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2023-03-14 07:08:18

* History should be compressed

Magnus Forsberg [MagFors]

posted a vote of Certify.

2023-03-19 20:27:07

Orion Pobursky [OrionP]
