Official File parts/55237a.dat
Part Attributes:
File Header:

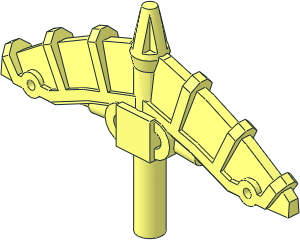

0 Bar 3.2L with Bow
0 Name: 55237a.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Accessory
0 !KEYWORDS bionicle, Mini, Set 8624, Set 8892, Set 8893, Set 8894, Set 8925
0 !KEYWORDS set 8926, Set 8927, Toa Kongu, Weapon
0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2022-02-14 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
Show contents
0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\55237as01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\55237as01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\55237as01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\55237as01.dat
0 // Central bar
0 // Primitives
1 16 0 0 0 4 0 0 0 -24 0 0 0 4 4-4cylc.dat
1 16 0 -24 0 4 0 0 0 -1 0 0 0 4 4-4ndis.dat
1 16 0 -29.875 5.875 5.875 0 0 0 0 5.875 0 1 0 recte4.dat
0 BFC INVERTNEXT
1 16 0 -29.875 -1.625 3.125 0 0 0 0 3.125 0 7.5 0 4-4cylc.dat
1 16 0 -29.875 5.875 3.125 0 0 0 0 3.125 0 -1 0 4-4ndis.dat
1 16 0 -29.875 -5.875 5.875 0 0 0 0 5.875 0 1 0 rect.dat
1 16 -49.028 -29.85335 0 0 0 -.972 0 1 .85335 1.5 0 0 rect3.dat
1 16 49.028 -29.85335 0 0 0 .972 0 1 .85335 1.5 0 0 rect3.dat
1 16 -47.80185 -30.87625 0 0 0 .25415 0 1 -.16955 1.5 0 0 rect3.dat
1 16 47.80185 -30.87625 0 0 0 -.25415 0 1 -.16955 1.5 0 0 rect3.dat
1 16 -47.89125 -34.26315 0 1.24775 0 0 -.83255 1 0 0 0 1.25 rect.dat
1 16 47.89125 -34.26315 0 1.24775 0 0 .83255 1 0 0 0 1.25 rect.dat
1 16 -40.02615 -36.06485 0 0 0 -5.02615 0 1 3.35385 1.5 0 0 rect3.dat
1 16 40.02615 -36.06485 0 0 0 5.02615 0 1 3.35385 1.5 0 0 rect3.dat
1 16 -34.17255 -39.82715 0 0 0 .82745 0 1 -.40845 1.5 0 0 rect3.dat
1 16 34.17255 -39.82715 0 0 0 -.82745 0 1 -.40845 1.5 0 0 rect3.dat
1 16 -33.29495 -43.52305 0 1.34505 0 0 -.66395 1 0 0 0 1.25 rect.dat
1 16 33.29495 -43.52305 0 1.34505 0 0 .66395 1 0 0 0 1.25 rect.dat
1 16 -25.78945 -43.96505 0 0 0 -4.86545 0 1 2.40165 1.5 0 0 rect3.dat
1 16 25.78945 -43.96505 0 0 0 4.86545 0 1 2.40165 1.5 0 0 rect3.dat
1 16 -19.3723 -46.8927 0 0 0 1.5517 0 1 -.526 1.5 0 0 rect3.dat
1 16 19.3723 -46.8927 0 0 0 -1.5517 0 1 -.526 1.5 0 0 rect3.dat
1 16 -10.5177 -49.89425 0 -4.4617 0 0 1.51245 1 0 0 0 -1.5 rect.dat
1 16 10.5177 -49.89425 0 0 0 4.4617 0 1 1.51245 1.5 0 0 rect.dat
1 16 -17.3527 -50.7107 0 1.4206 0 0 -.4816 1 0 0 0 1.25 rect.dat
1 16 17.3527 -50.7107 0 1.4206 0 0 .4816 1 0 0 0 1.25 rect.dat
0 // Faces
3 16 0 -24 4 -5.875 -24 5.875 5.875 -24 5.875
3 16 -4 -24 0 -5.875 -24 -5.875 -5.875 -24 5.875
3 16 4 -24 0 5.875 -24 5.875 5.875 -24 -5.875
3 16 0 -24 -4 5.875 -24 -5.875 -5.875 -24 -5.875
3 16 0 -26.75 5.875 5.875 -24 5.875 -5.875 -24 5.875
3 16 0 -26.75 5.875 -5.875 -24 5.875 -3.125 -26.75 5.875
3 16 -3.125 -26.75 5.875 -5.875 -24 5.875 -3.125 -29.875 5.875
3 16 -3.125 -29.875 5.875 -5.875 -24 5.875 -5.875 -35.75 5.875
3 16 -3.125 -29.875 5.875 -5.875 -35.75 5.875 -3.125 -33 5.875
3 16 0 -33 5.875 -3.125 -33 5.875 -5.875 -35.75 5.875
3 16 0 -33 5.875 -5.875 -35.75 5.875 5.875 -35.75 5.875
3 16 0 -33 5.875 5.875 -35.75 5.875 3.125 -33 5.875
3 16 3.125 -29.875 5.875 3.125 -33 5.875 5.875 -35.75 5.875
3 16 3.125 -29.875 5.875 5.875 -35.75 5.875 5.875 -24 5.875
3 16 3.125 -29.875 5.875 5.875 -24 5.875 3.125 -26.75 5.875
3 16 0 -26.75 5.875 3.125 -26.75 5.875 5.875 -24 5.875
3 16 0 -35.75 4 5.875 -35.75 5.875 -5.875 -35.75 5.875
3 16 0 -35.75 -4 -5.875 -35.75 -5.875 5.875 -35.75 -5.875
4 16 -5.875 -24 5.875 -5.875 -24 -5.875 -5.875 -24.5 -4.375 -5.875 -24.5 4.375
4 16 5.875 -24 5.875 5.875 -24.5 4.375 5.875 -24.5 -4.375 5.875 -24 -5.875
4 16 -7.932 -24.909 4.375 -5.875 -24.5 4.375 -5.875 -24.5 -4.375 -7.932 -24.909 -4.375
4 16 7.932 -24.909 4.375 7.932 -24.909 -4.375 5.875 -24.5 -4.375 5.875 -24.5 4.375
4 16 -7.932 -24.909 4.375 -7.932 -24.909 -4.375 -9.6757 -26.0743 -4.375 -9.6757 -26.0743 4.375
4 16 7.932 -24.909 4.375 9.6757 -26.0743 4.375 9.6757 -26.0743 -4.375 7.932 -24.909 -4.375
3 16 -10.0948 -26.7014 0 -9.6757 -26.0743 4.375 -9.6757 -26.0743 -4.375
3 16 10.0948 -26.7014 0 9.6757 -26.0743 -4.375 9.6757 -26.0743 4.375
4 16 -43.4853 -24.75 2.3041 -43.4853 -24.75 -2.3041 -50 -24.75 -1.8591 -50 -24.75 1.8591
4 16 -43.4853 -24.75 2.3041 -39.688 -24.75 2.5023 -39.688 -24.75 -2.5023 -43.4853 -24.75 -2.3041
4 16 -38.9644 -24.2664 3.75 -38.9644 -24.2664 -3.75 -39.688 -24.75 -2.5023 -39.688 -24.75 2.5023
4 16 -38.9644 -24.2664 3.75 -37.625 -24 3.75 -37.625 -24 -3.75 -38.9644 -24.2664 -3.75
4 16 -36.2856 -24.2664 3.75 -36.2856 -24.2664 -3.75 -37.625 -24 -3.75 -37.625 -24 3.75
4 16 -36.2856 -24.2664 3.75 -35.562 -24.75 2.7081 -35.562 -24.75 -2.7081 -36.2856 -24.2664 -3.75
4 16 -30 -24.75 2.974 -30 -24.75 -2.974 -35.562 -24.75 -2.7081 -35.562 -24.75 2.7081
3 16 -26.0431 -26.4861 0 -30 -24.75 -2.974 -30 -24.75 2.974
3 16 26.0431 -26.4861 0 30 -24.75 2.974 30 -24.75 -2.974
4 16 30 -24.75 2.974 35.562 -24.75 2.7081 35.562 -24.75 -2.7081 30 -24.75 -2.974
4 16 36.2856 -24.2664 3.75 36.2856 -24.2664 -3.75 35.562 -24.75 -2.7081 35.562 -24.75 2.7081
4 16 36.2856 -24.2664 3.75 37.625 -24 3.75 37.625 -24 -3.75 36.2856 -24.2664 -3.75
4 16 38.9644 -24.2664 3.75 38.9644 -24.2664 -3.75 37.625 -24 -3.75 37.625 -24 3.75
4 16 38.9644 -24.2664 3.75 39.688 -24.75 2.5253 39.688 -24.75 -2.5253 38.9644 -24.2664 -3.75
4 16 43.4853 -24.75 2.3041 43.4853 -24.75 -2.3041 39.688 -24.75 -2.5253 39.688 -24.75 2.5023
4 16 43.4853 -24.75 2.3041 50 -24.75 1.8591 50 -24.75 -1.8591 43.4853 -24.75 -2.3041
4 16 -50 -29 1.5 -50 -24.75 1.8591 -50 -24.75 -1.8591 -50 -29 -1.5
4 16 50 -29 1.5 50 -29 -1.5 50 -24.75 -1.8591 50 -24.75 1.8591
4 16 -47.5477 -31.0458 1.5 -47.5477 -31.0458 -1.5 -49.139 -33.4306 -1.25 -49.139 -33.4306 1.25
4 16 -45.0523 -32.711 1.5 -46.6435 -35.0957 1.25 -46.6435 -35.0957 -1.25 -45.0523 -32.711 -1.5
4 16 -33.3451 -40.2356 1.5 -33.3451 -40.2356 -1.5 -34.64 -42.8591 -1.25 -34.64 -42.8591 1.25
4 16 -30.6549 -41.5634 1.5 -31.9499 -44.187 1.25 -31.9499 -44.187 -1.25 -30.6549 -41.5634 -1.5
4 16 -17.8206 -47.4187 1.5 -17.8206 -47.4187 -1.5 -18.7733 -50.2291 -1.25 -18.7733 -50.2291 1.25
4 16 -14.9794 -48.3818 1.5 -15.9321 -51.1923 1.25 -15.9321 -51.1923 -1.25 -14.9794 -48.3818 -1.5
3 16 -4.8509 -51.6462 0 -6.056 -51.4067 1.5 -6.056 -51.4067 -1.5
3 16 4.8509 -51.6462 0 6.056 -51.4067 -1.5 6.056 -51.4067 1.5
4 16 14.9794 -48.3818 1.5 14.9794 -48.3818 -1.5 15.9321 -51.1923 -1.25 15.9321 -51.1923 1.25
4 16 17.8206 -47.4187 1.5 18.7733 -50.2291 1.25 18.7733 -50.2291 -1.25 17.8206 -47.4187 -1.5
4 16 30.6549 -41.5634 1.5 30.6549 -41.5634 -1.5 31.9499 -44.187 -1.25 31.9499 -44.187 1.25
4 16 33.3451 -40.2356 -1.5 33.3451 -40.2356 1.5 34.64 -42.8591 1.25 34.64 -42.8591 -1.25
4 16 45.0523 -32.711 1.5 45.0523 -32.711 -1.5 46.6435 -35.0957 -1.25 46.6435 -35.0957 1.25
4 16 47.5477 -31.0458 1.5 49.139 -33.4306 1.25 49.139 -33.4306 -1.25 47.5477 -31.0458 -1.5
4 16 0 -64 2 -2 -64 0 0 -64 -2 2 -64 0
0 // Edges
2 24 -5.875 -24 5.875 -5.875 -24 -5.875
2 24 5.875 -24 5.875 5.875 -24 -5.875
2 24 -5.875 -24.5 4.375 -5.875 -24.5 -4.375
2 24 5.875 -24.5 4.375 5.875 -24.5 -4.375
2 24 -50 -24.75 1.8591 -50 -24.75 -1.8591
2 24 -39.688 -24.75 2.5023 -39.688 -24.75 -2.5023
2 24 -35.562 -24.75 2.7081 -35.562 -24.75 -2.7081
2 24 -30 -24.75 2.974 -30 -24.75 -2.974
2 24 30 -24.75 2.974 30 -24.75 -2.974
2 24 35.562 -24.75 2.7081 35.562 -24.75 -2.7081
2 24 39.688 -24.75 2.5023 39.688 -24.75 -2.5253
2 24 50 -24.75 1.8591 50 -24.75 -1.8591
0 // Conditional lines
5 24 -7.932 -24.909 4.375 -7.932 -24.909 -4.375 -5.875 -24.5 4.375 -9.6757 -26.0743 4.375
5 24 7.932 -24.909 4.375 7.932 -24.909 -4.375 5.875 -24.5 4.375 9.6757 -26.0743 4.375
5 24 -9.6757 -26.0743 4.375 -9.6757 -26.0743 -4.375 -7.932 -24.909 4.375 -10.841 -27.818 4.375
5 24 9.6757 -26.0743 4.375 9.6757 -26.0743 -4.375 7.932 -24.909 4.375 10.841 -27.818 4.375
5 24 -38.9644 -24.2664 3.75 -38.9644 -24.2664 -3.75 -37.625 -24 3.75 -39.688 -24.75 2.5023
5 24 -37.625 -24 3.75 -37.625 -24 -3.75 -36.2856 -24.2664 3.75 -38.9644 -24.2664 3.75
5 24 -36.2856 -24.2664 3.75 -36.2856 -24.2664 -3.75 -35.562 -24.75 2.7081 -37.625 -24 3.75
5 24 36.2856 -24.2664 3.75 36.2856 -24.2664 -3.75 35.562 -24.75 2.7081 37.625 -24 3.75
5 24 37.625 -24 3.75 37.625 -24 -3.75 36.2856 -24.2664 3.75 38.9644 -24.2664 3.75
5 24 38.9644 -24.2664 3.75 38.9644 -24.2664 -3.75 37.625 -24 3.75 39.688 -24.75 2.5023
5 24 -48.056 -30.7067 1.5 -48.056 -30.7067 -1.5 -50 -29 1.5 -47.5477 -31.0458 1.5
5 24 -35 -39.4187 1.5 -35 -39.4187 -1.5 -45.0523 -32.711 1.5 -33.3451 -40.2356 1.5
5 24 -20.924 -46.3667 1.5 -20.924 -46.3667 -1.5 -30.6549 -41.5634 1.5 -17.8197 -47.4162 1.5
5 24 -6.056 -51.4067 1.5 -6.056 -51.4067 -1.5 -14.9794 -48.3818 1.5 -4.5383 -51.7083 1.5
5 24 6.056 -51.4067 1.5 6.056 -51.4067 -1.5 14.9794 -48.3818 1.5 4.5383 -51.7083 1.5
5 24 20.924 -46.3667 1.5 20.924 -46.3667 -1.5 30.6549 -41.5634 1.5 17.8206 -47.4187 1.5
5 24 35 -39.4187 1.5 35 -39.4187 -1.5 45.0523 -32.711 1.5 33.3453 -40.2361 1.5
5 24 48.056 -30.7067 1.5 48.056 -30.7067 -1.5 50 -29 1.5 47.5477 -31.0458 1.5
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2022-03-04 20:45:02
2022-03-15 21:15:02
2024-09-27 13:40:39
2024-09-28 00:47:28
2024-09-30 03:57:03
Release 2024-08
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
