Official File parts/55237e.dat
Part Attributes:
File Header:

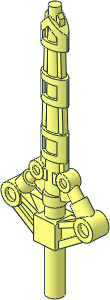

0 Bar 7.5L Sword with Bulges and Cylinders on Sides
0 Name: 55237e.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Accessory
0 !KEYWORDS bionicle, Mini, Set 8624, Set 8892, Set 8893, Set 8894, Set 8925
0 !KEYWORDS set 8926, Set 8927, Toa Jaller, Weapon
0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2022-02-14 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
Show contents
0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\55237es01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\55237es01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\55237es01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\55237es01.dat
0 // Primitives
1 16 0 0 0 4 0 0 0 -24 0 0 0 4 4-4cylc.dat
1 16 0 -24 0 4 0 0 0 -1 0 0 0 4 4-4ndis.dat
1 16 -12.9375 -28.55 0 7.0625 0 0 4.55 -1 0 0 0 3.875 rect.dat
1 16 12.9375 -28.55 0 7.0625 0 0 -4.55 -1 0 0 0 3.875 rect.dat
0 BFC INVERTNEXT
1 16 0 -29.875 -1.625 0 0 3.125 3.125 0 0 0 7.5 0 4-4cylc.dat
1 16 0 -29.875 5.875 0 0 3.125 3.125 0 0 0 -1 0 4-4ndis.dat
1 16 0 -29.875 5.875 0 0 5.875 5.875 0 0 0 1 0 recte4.dat
1 16 0 -29.875 -5.875 0 0 5.875 5.875 0 0 0 1 0 rect.dat
1 16 0 -35.75 0 4 0 0 0 1 0 0 0 4 4-4ndis.dat
1 16 0 -35.75 0 4 0 0 0 -5.5 0 0 0 4 4-4cylo.dat
0 BFC INVERTNEXT
1 16 -20 -38.35 -2.75 0 0 3 3 0 0 0 -1.75 0 4-4cylc.dat
0 BFC INVERTNEXT
1 16 -20 -38.35 0 0 0 3 3 0 0 0 4.5 0 4-4cylc.dat
0 BFC INVERTNEXT
1 16 20 -38.35 -2.75 0 0 3 3 0 0 0 -1.75 0 4-4cylc.dat
0 BFC INVERTNEXT
1 16 20 -38.35 0 0 0 3 3 0 0 0 4.5 0 4-4cylc.dat
1 16 -20 -38.35 4.5 0 0 5.25 5.25 0 0 0 -9 0 4-4cylo.dat
1 16 20 -38.35 4.5 0 0 5.25 5.25 0 0 0 -9 0 4-4cylo.dat
1 16 -20 -38.35 4.5 0 0 .5 .5 0 0 0 -1 0 4-4ring6.dat
1 16 -20 -38.35 4.5 0 0 1.75 1.75 0 0 0 -1 0 4-4ring2.dat
1 16 20 -38.35 4.5 0 0 .5 .5 0 0 0 -1 0 4-4ring6.dat
1 16 20 -38.35 4.5 0 0 1.75 1.75 0 0 0 -1 0 4-4ring2.dat
1 16 -20 -38.35 -4.5 0 0 .5 .5 0 0 0 1 0 4-4ring6.dat
1 16 -20 -38.35 -4.5 0 0 1.75 1.75 0 0 0 1 0 4-4ring2.dat
1 16 20 -38.35 -4.5 0 0 .5 .5 0 0 0 1 0 4-4ring6.dat
1 16 20 -38.35 -4.5 0 0 1.75 1.75 0 0 0 1 0 4-4ring2.dat
1 16 0 -41.25 0 .5 0 0 0 -1 0 0 0 .5 4-4ring8.dat
1 16 0 -41.25 0 .25 0 0 0 -1 0 0 0 .25 4-4ring18.dat
1 16 0 -41.25 0 4.75 0 0 0 1 0 0 0 4.75 4-4edge.dat
1 16 0 -41.25 0 4.75 0 0 0 -4.75 0 0 0 4.75 4-4cyli.dat
1 16 -7.375 -53.8 3 0 0 4 4 0 0 0 -6 0 4-4cylo.dat
1 16 7.375 -53.8 3 0 0 4 4 0 0 0 -6 0 4-4cylo.dat
0 BFC INVERTNEXT
1 16 -7.375 -53.8 1.375 0 0 2 2 0 0 0 1.625 0 4-4cylc.dat
0 BFC INVERTNEXT
1 16 7.375 -53.8 1.375 0 0 2 2 0 0 0 1.625 0 4-4cylc.dat
0 BFC INVERTNEXT
1 16 -7.375 -53.8 -1.75 0 0 2 2 0 0 0 -1.25 0 4-4cylc.dat
0 BFC INVERTNEXT
1 16 7.375 -53.8 -1.75 0 0 2 2 0 0 0 -1.25 0 4-4cylc.dat
1 16 -7.375 -53.8 3 0 0 2 2 0 0 0 -1 0 4-4ring1.dat
1 16 7.375 -53.8 3 0 0 2 2 0 0 0 -1 0 4-4ring1.dat
1 16 -7.375 -53.8 -3 0 0 2 2 0 0 0 1 0 4-4ring1.dat
1 16 7.375 -53.8 -3 0 0 2 2 0 0 0 1 0 4-4ring1.dat
1 16 -6.2865 -59.54855 0 -.0682 0 0 1.95145 1 0 0 0 1.375 rect.dat
1 16 6.2865 -59.54855 0 .0682 0 0 1.95145 1 0 0 0 1.375 rect.dat
1 16 -7 -67.75 0 0 1 0 0 0 6.25 .375 0 0 rect.dat
1 16 7 -67.75 0 0 -1 0 0 0 6.25 .375 0 0 rect.dat
1 16 -5.56335 -80.25 0 -.21835 0 0 6.25 1 0 0 0 1.375 rect.dat
1 16 5.56335 -80.25 0 .21835 0 0 6.25 1 0 0 0 1.375 rect.dat
1 16 -7 -92.75 0 0 1 0 0 0 6.25 .375 0 0 rect.dat
1 16 7 -92.75 0 0 -1 0 0 0 6.25 .375 0 0 rect.dat
1 16 -4.68995 -105.25 0 -.21835 0 0 6.25 1 0 0 0 1.375 rect.dat
1 16 4.68995 -105.25 0 .21835 0 0 6.25 1 0 0 0 1.375 rect.dat
1 16 -7 -115.25 0 0 1 0 0 0 3.75 .375 0 0 rect.dat
1 16 7 -115.25 0 0 -1 0 0 0 3.75 .375 0 0 rect.dat
1 16 -4.0543 -123.4457 0 -.0543 0 0 1.5543 1 0 0 0 1.375 rect.dat
1 16 4.0543 -123.4457 0 .0543 0 0 1.5543 1 0 0 0 1.375 rect.dat
0 // Complementary faces
3 16 0 -24 4 -5.875 -24 5.875 5.875 -24 5.875
3 16 -4 -24 0 -5.875 -24 -3.875 -5.875 -24 3.875
3 16 4 -24 0 5.875 -24 3.875 5.875 -24 -3.875
3 16 0 -24 -4 5.875 -24 -5.875 -5.875 -24 -5.875
3 16 0 -26.75 5.875 -5.875 -24 5.875 -3.125 -26.75 5.875
3 16 0 -26.75 5.875 5.875 -24 5.875 -5.875 -24 5.875
3 16 0 -26.75 5.875 3.125 -26.75 5.875 5.875 -24 5.875
3 16 -3.125 -29.875 5.875 -3.125 -26.75 5.875 -5.875 -24 5.875
3 16 -3.125 -29.875 5.875 -5.875 -24 5.875 -5.875 -35.75 5.875
3 16 -3.125 -29.875 5.875 -5.875 -35.75 5.875 -3.125 -33 5.875
3 16 3.125 -29.875 5.875 5.875 -24 5.875 3.125 -26.75 5.875
3 16 3.125 -29.875 5.875 5.875 -35.75 5.875 5.875 -24 5.875
3 16 3.125 -29.875 5.875 3.125 -33 5.875 5.875 -35.75 5.875
3 16 0 -33 5.875 -3.125 -33 5.875 -5.875 -35.75 5.875
3 16 0 -33 5.875 -5.875 -35.75 5.875 5.875 -35.75 5.875
3 16 0 -33 5.875 5.875 -35.75 5.875 3.125 -33 5.875
3 16 0 -35.75 4 5.875 -35.75 5.875 -5.875 -35.75 5.875
3 16 -4 -35.75 0 -4.8 -35.75 3.875 -4.8 -35.75 -3.875
3 16 4 -35.75 0 4.8 -35.75 -3.875 4.8 -35.75 3.875
3 16 0 -35.75 -4 -5.875 -35.75 -5.875 5.875 -35.75 -5.875
3 16 -13.9514 -39.8256 0 -4.8 -35.75 -3.875 -4.8 -35.75 3.875
3 16 13.9514 -39.8256 0 4.8 -35.75 3.875 4.8 -35.75 -3.875
3 16 -4.75 -44.1434 0 -5.9903 -44.2856 -1.3374 -5.9903 -44.2856 1.3374
3 16 4.75 -44.1434 0 5.9903 -44.2856 1.3374 5.9903 -44.2856 -1.3374
4 16 -5.9903 -44.2856 1.3374 -5.9903 -44.2856 -1.3374 -8.3513 -45.1276 -1.278 -8.3513 -45.1276 1.278
4 16 5.9903 -44.2856 -1.3374 5.9903 -44.2856 1.3374 8.3513 -45.1276 1.278 8.3513 -45.1276 -1.278
3 16 -10.1354 -46.2735 0 -8.3513 -45.1276 1.278 -8.3513 -45.1276 -1.278
3 16 10.1354 -46.2735 0 8.3513 -45.1276 -1.278 8.3513 -45.1276 1.278
4 16 -6.2183 -61.5 1.375 -6.2183 -61.5 -1.375 -7 -61.5 -.375 -7 -61.5 .375
4 16 6.2183 -61.5 1.375 7 -61.5 .375 7 -61.5 -.375 6.2183 -61.5 -1.375
4 16 -5.7817 -74 1.375 -7 -74 .375 -7 -74 -.375 -5.7817 -74 -1.375
4 16 5.7817 -74 -1.375 7 -74 -.375 7 -74 .375 5.7817 -74 1.375
4 16 -5.345 -86.5 1.375 -5.345 -86.5 -1.375 -7 -86.5 -.375 -7 -86.5 .375
4 16 5.345 -86.5 1.375 7 -86.5 .375 7 -86.5 -.375 5.345 -86.5 -1.375
4 16 -4.9083 -99 1.375 -7 -99 .375 -7 -99 -.375 -4.9083 -99 -1.375
4 16 4.9083 -99 -1.375 7 -99 -.375 7 -99 .375 4.9083 -99 1.375
4 16 -4.4716 -111.5 1.375 -4.4716 -111.5 -1.375 -7 -111.5 -.375 -7 -111.5 .375
4 16 4.4716 -111.5 1.375 7 -111.5 .375 7 -111.5 -.375 4.4716 -111.5 -1.375
4 16 -4.1086 -121.8914 1.375 -7 -119 .375 -7 -119 -.375 -4.1086 -121.8914 -1.375
4 16 4.1086 -121.8914 1.375 4.1086 -121.8914 -1.375 7 -119 -.375 7 -119 .375
3 16 -2.6346 -127 0 -4 -125 1.375 -4 -125 -1.375
3 16 2.6346 -127 0 4 -125 -1.375 4 -125 1.375
4 16 0 -130 2.56 -1.8018 -130 1.8018 -2.56 -130 0 -1.8018 -130 -1.8018
4 16 0 -130 2.56 -1.8018 -130 -1.8018 0 -130 -2.56 1.8018 -130 -1.8018
4 16 0 -130 2.56 1.8018 -130 -1.8018 2.56 -130 0 1.8018 -130 1.8018
0 // Edges
2 24 -4.8 -35.75 3.875 -4.8 -35.75 -3.875
2 24 4.8 -35.75 3.875 4.8 -35.75 -3.875
2 24 0 -121.75 3.74 0 -121.75 2.613
2 24 0 -121.75 -2.613 0 -121.75 -3.74
2 24 0 -126 3.74 0 -126 2.5857
2 24 0 -126 -2.5857 0 -126 -3.74
0 // Conditional lines
5 24 -5.9903 -44.2856 -1.3374 -5.9903 -44.2856 1.3374 -8.3513 -45.1276 -1.278 -4.4765 -44.112 -1.3755
5 24 5.9903 -44.2856 -1.3374 5.9903 -44.2856 1.3374 8.3513 -45.1276 -1.278 4.4765 -44.112 -1.3755
5 24 -8.3513 -45.1276 -1.278 -8.3513 -45.1276 1.278 -10.4298 -46.4625 -1.2258 -5.9903 -44.2856 -1.3374
5 24 8.3513 -45.1276 -1.278 8.3513 -45.1276 1.278 10.4298 -46.4625 -1.2258 5.9903 -44.2856 -1.3374
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2022-02-21 20:15:02
2022-03-15 20:35:01
The problem has been fixed in the subpart.
2022-04-07 20:30:01
Update ring primitives via script. This will not reset the vote status of the part.
2024-09-06 15:30:00
2024-09-25 18:06:44
2024-09-30 03:57:03
Release 2024-08
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
