File Detail parts/57360.dat

Official File parts/57360.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

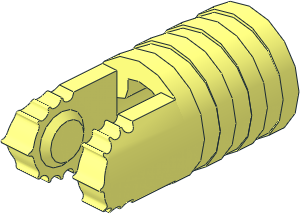

Hinge Arm Locking with Dual Finger with 7 Fingers and Semi-Reduced Axlehole without Slots

File Header:

0 Hinge Arm Locking with Dual Finger with 7 Fingers and Semi-Reduced Axlehole without Slots
0 Name: 57360.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Part UPDATE 2025-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS click-hinge, Life on Mars, Star Wars, Studio, Technic

0 !HISTORY 2025-03-30 [OrionP] Official Update 2025-03

Show contents

1 16 0 0 0 1 0 0 0 -1 0 0 0 -1 clh14.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 clh14.dat

1 16 0 0 0 2.12132 0 -2.12132 -2.12132 0 -2.12132 0 1 0 1-4ring2.dat
1 16 0 0 0 -2.12132 0 2.12132 2.12132 0 2.12132 0 1 0 1-4ring2.dat
3 16 6.607 -6 0 6.364 -6.364 0 6 -6 0
3 16 -6.607 -6 0 -6 -6 0 -6.364 -6.364 0
3 16 6.607 6 0 6 6 0 6.364 6.364 0
3 16 -6.607 6 0 -6.364 6.364 0 -6 6 0

1 16 0 0 0 6.363961 0 -6.363961 6.363961 0 6.363961 0 1 0 1-4edge.dat
1 16 0 0 0 -6.363961 0 6.363961 -6.363961 0 -6.363961 0 1 0 1-4edge.dat
2 24 -6.364 -6.364 0 -6.607 -6 0
2 24 6.364 -6.364 0 6.607 -6 0
2 24 -6.364 6.364 0 -6.607 6 0
2 24 6.364 6.364 0 6.607 6 0

1 16 0 0 0 1 0 0 0 0 1 0 20 0 axl3hole.dat
1 16 0 0 2.875 2.25 0 0 0 0 2.25 0 -1 0 4-4ring3.dat
1 16 0 0 17.125 2.25 0 0 0 0 2.25 0 1 0 4-4ring3.dat
1 16 0 0 20 3 0 0 0 0 3 0 -1 0 4-4ring2.dat
1 16 0 0 0 9 0 0 0 0 9 0 2.875 0 4-4cyli.dat
1 16 0 0 20 9 0 0 0 0 9 0 -2.875 0 4-4cylo.dat
1 16 0 0 2.875 9 0 0 0 0 9 0 -1 0 4-4edge.dat
1 16 0 0 2.875 9 0 0 0 0 8.5 0 2.85 0 4-4cylo.dat
1 16 0 0 5.725 9 0 0 0 0 9 0 2.85 0 4-4cylo.dat
1 16 0 0 8.575 9 0 0 0 0 8.5 0 2.85 0 4-4cylo.dat
1 16 0 0 11.425 9 0 0 0 0 9 0 2.85 0 4-4cylo.dat
1 16 0 0 14.275 9 0 0 0 0 8.5 0 2.85 0 4-4cylo.dat
1 16 0 0 5.725 2.25 0 0 0 0 2.25 0 1 0 4-4ring3.dat
1 16 0 0 8.575 2.25 0 0 0 0 2.25 0 -1 0 4-4ring3.dat
1 16 0 0 11.425 2.25 0 0 0 0 2.25 0 1 0 4-4ring3.dat
1 16 0 0 14.275 2.25 0 0 0 0 2.25 0 -1 0 4-4ring3.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Max Martin Richter [MMR1988]

initially submitted the part.

2021-12-30 21:05:01

Franklin W. Cain [fwcain]

posted a vote of Certify.

2024-03-25 21:31:08

Willy Tschager [Holly-Wood]
