Official File parts/57697.dat
Part Attributes:
File Header:

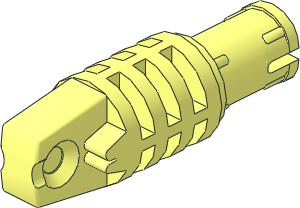

0 Hinge Arm Locking with Single Finger and Friction Pin with Rectangular Centre Hole
0 Name: 57697.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2025-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS click-hinge, Technic
0 !HISTORY 2025-03-30 [OrionP] Official Update 2025-03
Show contents
1 16 0 0 10 1 0 0 0 0 1 0 -1 0 confric10.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\41532s01.dat
1 16 0 0 10 0 0 4 4 0 0 0 -1 0 1-8edge.dat
1 16 0 0 10 0 0 -4 4 0 0 0 -1 0 1-8edge.dat
2 24 2.8284 2.8284 10 2.8284 -2.8284 10
1 16 0 0 10 0 0 -4 -4 0 0 0 -1 0 1-8edge.dat
1 16 0 0 10 0 0 4 -4 0 0 0 -1 0 1-8edge.dat
2 24 -2.8284 -2.8284 10 -2.8284 2.8284 10
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2022-01-02 19:35:01
2022-01-02 19:45:01
What's the difference to 41532.dat?
2022-01-02 20:00:02
As said in description: "...Rectangular Centre Hole". Prevents using a bar in pin.
2022-01-04 20:45:01
2024-03-25 21:31:47
Need to be CCW
now CCW
2025-03-17 16:03:18
2025-03-18 02:04:58
2025-03-20 23:24:08
2025-03-30 05:48:46
Release 2025-03
