Unofficial File parts/58122.dat
Part Attributes:
File Header:

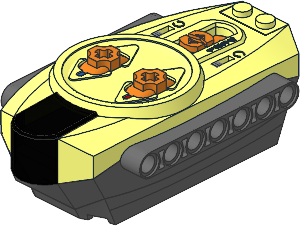

0 Electric Power Functions IR Remote Control
0 Name: 58122.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Shortcut
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Comment/Uncomment switch lines to get various positions.
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 58122c01
0 !CMDLINE -c71
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2021-09-09 [Philo] Unmirrored some elements and cleaned up coordinates
