Official File parts/60922.dat
Part Attributes:

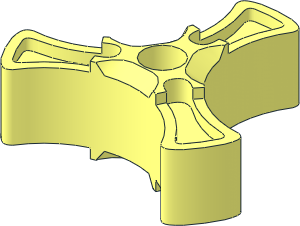

~Constraction Ball Cannon Trigger
File Header:
0 ~Constraction Ball Cannon Trigger 0 Name: 60922.dat 0 Author: Santeri Piippo [arezey] 0 !LDRAW_ORG Part UPDATE 2024-06 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2024-07-29 [OrionP] Official Update 2024-06
Show contents
0 BFC INVERTNEXT 1 16 0 -1.25 0 4.34 0 0 0 -8.45 0 0 0 4.34 4-4cylc.dat 0 BFC INVERTNEXT 1 16 0 1.25 0 4.34 0 0 0 8.45 0 0 0 4.34 4-4cylc.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\60922s01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\60922s01.dat 1 16 0 0 0 -0.5 0 -0.86603 0 1 0 0.86603 0 -0.5 s\60922s01.dat 1 16 0 0 0 0.5 0 -0.86603 0 1 0 -0.86603 0 -0.5 s\60922s01.dat 1 16 0 0 0 -0.5 0 0.86603 0 1 0 -0.86603 0 -0.5 s\60922s01.dat 1 16 0 0 0 0.5 0 0.86603 0 1 0 0.86603 0 -0.5 s\60922s01.dat 4 16 0 -9.7 7.5 -2.864 -9.7 4.54 -1.6609 -9.7 4.0097 0 -9.7 4.34 4 16 -2.864 -9.7 4.54 -4.114 -9.7 2.375 -3.0688 -9.7 3.0688 -1.6609 -9.7 4.0097 3 16 -4.0097 -9.7 1.6609 -3.0688 -9.7 3.0688 -4.114 -9.7 2.375 4 16 -4.1138 -9.7 2.3753 -5.3638 -9.7 0.2103 -4.34 -9.7 0 -4.0097 -9.7 1.6609 4 16 0 -9.7 7.5 0 -9.7 4.34 1.6609 -9.7 4.0097 2.864 -9.7 4.54 4 16 3.0688 -9.7 3.0688 4.114 -9.7 2.375 2.864 -9.7 4.54 1.6609 -9.7 4.0097 3 16 3.0688 -9.7 3.0688 4.0097 -9.7 1.6609 4.114 -9.7 2.375 4 16 4.34 -9.7 0 4.0097 -9.7 -1.6609 6.4952 -9.7 -3.75 5.3637 -9.7 0.2103 4 16 4.0097 -9.7 -1.6609 3.0688 -9.7 -3.0688 2.4997 -9.7 -4.7503 6.4952 -9.7 -3.75 3 16 3.0688 -9.7 -3.0688 1.6609 -9.7 -4.0097 2.4997 -9.7 -4.7503 4 16 0 -9.7 -4.34 -0.0002 -9.7 -4.7503 2.4997 -9.7 -4.7503 1.6609 -9.7 -4.0097 4 16 4.1138 -9.7 2.3753 4.0097 -9.7 1.6609 4.34 -9.7 0 5.3637 -9.7 0.2103 4 16 -4.34 -9.7 0 -5.3637 -9.7 0.2103 -6.4952 -9.7 -3.75 -4.0097 -9.7 -1.6609 4 16 -4.0097 -9.7 -1.6609 -6.4952 -9.7 -3.75 -2.4997 -9.7 -4.7503 -3.0688 -9.7 -3.0688 3 16 -3.0688 -9.7 -3.0688 -2.4997 -9.7 -4.7503 -1.6609 -9.7 -4.0097 4 16 0 -9.7 -4.34 -1.6609 -9.7 -4.0097 -2.4997 -9.7 -4.7503 0.0002 -9.7 -4.7503 4 16 0 9.7 7.5 0 9.7 4.34 -1.6609 9.7 4.0097 -2.864 9.7 4.54 4 16 -3.0688 9.7 3.0688 -4.114 9.7 2.375 -2.864 9.7 4.54 -1.6609 9.7 4.0097 3 16 -4.0097 9.7 1.6609 -4.114 9.7 2.375 -3.0688 9.7 3.0688 4 16 -4.34 9.7 0 -4.0097 9.7 -1.6609 -6.4952 9.7 -3.75 -5.3637 9.7 0.2103 4 16 -4.0097 9.7 -1.6609 -3.0688 9.7 -3.0688 -2.4997 9.7 -4.7503 -6.4952 9.7 -3.75 3 16 -1.6609 9.7 -4.0097 -2.4997 9.7 -4.7503 -3.0688 9.7 -3.0688 4 16 0 9.7 -4.34 0.0002 9.7 -4.7503 -2.4997 9.7 -4.7503 -1.6609 9.7 -4.0097 4 16 -4.1138 9.7 2.3753 -4.0097 9.7 1.6609 -4.34 9.7 0 -5.3637 9.7 0.2103 4 16 0 9.7 7.5 2.864 9.7 4.54 1.6609 9.7 4.0097 0 9.7 4.34 4 16 2.864 9.7 4.54 4.114 9.7 2.375 3.0688 9.7 3.0688 1.6609 9.7 4.0097 3 16 4.0097 9.7 1.6609 3.0688 9.7 3.0688 4.114 9.7 2.375 4 16 4.34 9.7 0 5.3637 9.7 0.2103 6.4952 9.7 -3.75 4.0097 9.7 -1.6609 4 16 4.0097 9.7 -1.6609 6.4952 9.7 -3.75 2.4997 9.7 -4.7503 3.0688 9.7 -3.0688 3 16 1.6609 9.7 -4.0097 3.0688 9.7 -3.0688 2.4997 9.7 -4.7503 4 16 0 9.7 -4.34 1.6609 9.7 -4.0097 2.4997 9.7 -4.7503 -0.0002 9.7 -4.7503 4 16 4.1138 9.7 2.3753 5.3637 9.7 0.2103 4.34 9.7 0 4.0097 9.7 1.6609
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Santeri Piippo [arezey]
Part Reviewer
initially submitted the part.
2017-12-27 17:40:01
Santeri Piippo [arezey]
Part Reviewer
made the following comment.
2017-12-27 17:50:00
This one wound up really suffering from teeny gaps caused by rounding...
Philippe Hurbain [Philo]
Senior Part Reviewer
made the following comment.
2017-12-27 19:10:00
The problem is that you have heavy rounding on matrix coefficient and low one on coordinates. Should be the inverse (I use 5 digits for coefs, 4 for coordinates)
Philippe Hurbain [Philo]
Senior Part Reviewer
made the following comment.
2017-12-27 19:20:01
Forgot to say it looks pretty good!
Santeri Piippo [arezey]
Part Reviewer
submitted a new version of the part.
2017-12-29 09:00:00
Thanks! Fixed thickness... 9 -> 9.7, 6.25 -> 7.5

Existing certification-votes were deleted.
Santeri Piippo [arezey]
Part Reviewer
submitted a new version of the part.
2017-12-29 09:10:00
Tried to alleviate the rounding issues, but I'm not seeing any visible difference. My laptop's graphics card seems to be making up gaps, though.
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2018-01-28 14:50:00
Overlapping surfaces.
Lots of identical lines.
Santeri Piippo [arezey]
Part Reviewer
submitted a new version of the part.
2018-01-29 10:50:01
Fixed the issues.

Existing certification-votes were deleted.
Santeri Piippo [arezey]
Part Reviewer
submitted a new version of the part.
2018-04-27 07:25:01
Recategorized into Constraction
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify.
2023-04-13 06:46:39
Max Martin Richter [MMR1988]
Senior Part Reviewer
posted a vote of Certify.
2023-05-29 11:26:24
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2024-07-16 20:28:07
Orion Pobursky [OrionP]
Part Library Admin
2024-07-29 02:26:27
Release 2024-06
Creative Commons Attribution License information

This part is copyright © Santeri Piippo
Licensed under CC BY 4.0
