Official File parts/6142271m.dat
Part Attributes:
File Header:

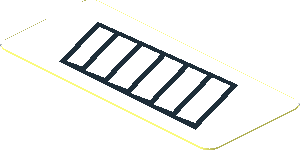

0 Sticker 0.8 x 1.8 with Black Air Vents on White Background Right
0 Name: 6142271m.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2025-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Audi, Bricklink 75873stk01a, Brickowl 427960, LMS, R8
0 !KEYWORDS Rebrickable 24755, Set 75873, Speed Champions, Ultra
0 !HISTORY 2025-03-30 [OrionP] Official Update 2025-03
Show contents
0 // Primitives
1 16 -16.5 0 6.5 -1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 16.5 0 6.5 1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 0 -.25 0 16.5 0 0 0 .25 0 0 0 8 box3u12.dat
1 16 -16.5 0 -6.5 -1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 16.5 0 -6.5 1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 -16.5 0 6.5 -1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 16.5 0 6.5 1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 -16.5 0 -6.5 -1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 16 16.5 0 -6.5 1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 15 -16.5 -.25 6.5 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 15 16.5 -.25 6.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 15 -16.5 -.25 -6.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 15 16.5 -.25 -6.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
0 // Bottom faces
4 16 -16.5 0 8 -16.5 0 -8 -18 0 -6.5 -18 0 6.5
4 16 16.5 0 8 18 0 6.5 18 0 -6.5 16.5 0 -8
0 // Lateral faces
4 16 -18 0 6.5 -18 0 -6.5 -18 -.25 -6.5 -18 -.25 6.5
4 16 18 0 6.5 18 -.25 6.5 18 -.25 -6.5 18 0 -6.5
0 // Black air vents
3 0 -13.25 -.25 4.4 -12.2118 -.25 3.7041 -9.9144 -.25 3.8262
3 0 -13.25 -.25 4.4 -9.9144 -.25 3.8262 -9.1343 -.25 3.8677
3 0 -13.25 -.25 4.4 -9.1343 -.25 3.8677 -6.17 -.25 4.0252
3 0 -13.25 -.25 4.4 -6.17 -.25 4.0252 -5.3899 -.25 4.0667
3 0 -13.25 -.25 4.4 -5.3899 -.25 4.0667 -2.4255 -.25 4.2242
4 0 -13.25 -.25 4.4 -2.4255 -.25 4.2242 -1.6454 -.25 4.2657 9.33 -.25 5.6
3 0 9.33 -.25 5.6 -1.6454 -.25 4.2657 1.319 -.25 4.4232
3 0 9.33 -.25 5.6 1.319 -.25 4.4232 2.0991 -.25 4.4647
3 0 9.33 -.25 5.6 2.0991 -.25 4.4647 5.0635 -.25 4.6222
3 0 9.33 -.25 5.6 5.0635 -.25 4.6222 5.8436 -.25 4.6637
3 0 9.33 -.25 5.6 5.8436 -.25 4.6637 8.808 -.25 4.8212
4 0 9.33 -.25 5.6 8.808 -.25 4.8212 12.0529 -.25 -4.45 13.25 -.25 -5.6
4 0 -9.2179 -.25 -4.85 -12.2118 -.25 3.7041 -13.25 -.25 4.4 -9.75 -.25 -5.6
4 0 -6.0832 -.25 -4.85 -9.1343 -.25 3.8677 -9.9144 -.25 3.8262 -7.0178 -.25 -4.45
4 0 -2.269 -.25 -4.85 -5.3899 -.25 4.0667 -6.17 -.25 4.0252 -3.2036 -.25 -4.45
4 0 1.5451 -.25 -4.85 -1.6454 -.25 4.2657 -2.4255 -.25 4.2242 .6105 -.25 -4.45
3 0 1.5451 -.25 -4.85 .6105 -.25 -4.45 -2.269 -.25 -4.85
4 0 5.3592 -.25 -4.85 2.0991 -.25 4.4647 1.319 -.25 4.4232 4.4246 -.25 -4.45
3 0 5.3592 -.25 -4.85 4.4246 -.25 -4.45 1.5451 -.25 -4.85
4 0 9.1734 -.25 -4.85 5.8436 -.25 4.6637 5.0635 -.25 4.6222 8.2388 -.25 -4.45
3 0 9.1734 -.25 -4.85 8.2388 -.25 -4.45 5.3592 -.25 -4.85
3 0 9.1734 -.25 -4.85 13.25 -.25 -5.6 12.0529 -.25 -4.45
4 0 -9.75 -.25 -5.6 -6.0832 -.25 -4.85 -7.0178 -.25 -4.45 -9.2179 -.25 -4.85
4 0 -9.75 -.25 -5.6 -2.269 -.25 -4.85 -3.2036 -.25 -4.45 -6.0832 -.25 -4.85
3 0 -9.75 -.25 -5.6 1.5451 -.25 -4.85 -2.269 -.25 -4.85
3 0 -9.75 -.25 -5.6 5.3592 -.25 -4.85 1.5451 -.25 -4.85
4 0 -9.75 -.25 -5.6 13.25 -.25 -5.6 9.1734 -.25 -4.85 5.3592 -.25 -4.85
0 // White top faces
4 15 -16.5 -.25 8 -13.25 -.25 4.4 9.33 -.25 5.6 16.5 -.25 8
4 15 -16.5 -.25 8 -18 -.25 6.5 -18 -.25 -6.5 -16.5 -.25 -8
4 15 -16.5 -.25 8 -16.5 -.25 -8 -9.75 -.25 -5.6 -13.25 -.25 4.4
4 15 16.5 -.25 -8 13.25 -.25 -5.6 -9.75 -.25 -5.6 -16.5 -.25 -8
4 15 16.5 -.25 -8 16.5 -.25 8 9.33 -.25 5.6 13.25 -.25 -5.6
4 15 16.5 -.25 -8 18 -.25 -6.5 18 -.25 6.5 16.5 -.25 8
4 15 -9.2179 -.25 -4.85 -7.0178 -.25 -4.45 -9.9144 -.25 3.8262 -12.2118 -.25 3.7041
4 15 -6.0832 -.25 -4.85 -3.2036 -.25 -4.45 -6.17 -.25 4.0252 -9.1343 -.25 3.8677
4 15 -2.269 -.25 -4.85 .6105 -.25 -4.45 -2.4255 -.25 4.2242 -5.3899 -.25 4.0667
4 15 1.5451 -.25 -4.85 4.4246 -.25 -4.45 1.319 -.25 4.4232 -1.6454 -.25 4.2657
4 15 5.3592 -.25 -4.85 8.2388 -.25 -4.45 5.0635 -.25 4.6222 2.0991 -.25 4.4647
4 15 9.1734 -.25 -4.85 12.0529 -.25 -4.45 8.808 -.25 4.8212 5.8436 -.25 4.6637
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2021-07-31 06:10:03
2023-10-28 11:11:41
2025-01-30 19:35:03
Header Edits
keywords:
Audi, LMS, R8, Set 75873, Speed Champions, Ultra
to
Audi, LMS, R8, Set 75873, Speed Champions, Ultra, Bricklink 75873stk01a, Rebrickable 24755, Brickowl 427960
* This is not a simple distorted grid but should simulate intakes:
https://www.brickmerge.de/img/sets/l/75873-1.jpg
with vertices moved up a bit:
2 4 4.5646 -.25 -4.85 5.2592 -.25 -4.45
2 4 -3.0636 -.25 -4.85 -2.369 -.25 -4.45
2 4 1.4451 -.25 -4.45 4.5646 -.25 -4.85
2 4 -9.3179 -.25 -4.45 -6.8778 -.25 -4.85
2 4 8.3788 -.25 -4.85 9.0734 -.25 -4.45
2 4 9.0734 -.25 -4.45 12.1929 -.25 -4.85
2 4 5.2592 -.25 -4.45 8.3788 -.25 -4.85
2 4 -2.369 -.25 -4.45 .7505 -.25 -4.85
2 4 -6.8778 -.25 -4.85 -6.1832 -.25 -4.45
2 4 -6.1832 -.25 -4.45 -3.0636 -.25 -4.85
2 4 .7505 -.25 -4.85 1.4451 -.25 -4.45
https://www.brickmerge.de/img/sets/l/75873-1.jpg
with vertices moved up a bit:
2 4 4.5646 -.25 -4.85 5.2592 -.25 -4.45
2 4 -3.0636 -.25 -4.85 -2.369 -.25 -4.45
2 4 1.4451 -.25 -4.45 4.5646 -.25 -4.85
2 4 -9.3179 -.25 -4.45 -6.8778 -.25 -4.85
2 4 8.3788 -.25 -4.85 9.0734 -.25 -4.45
2 4 9.0734 -.25 -4.45 12.1929 -.25 -4.85
2 4 5.2592 -.25 -4.45 8.3788 -.25 -4.85
2 4 -2.369 -.25 -4.45 .7505 -.25 -4.85
2 4 -6.8778 -.25 -4.85 -6.1832 -.25 -4.45
2 4 -6.1832 -.25 -4.45 -3.0636 -.25 -4.85
2 4 .7505 -.25 -4.85 1.4451 -.25 -4.45
2025-02-06 18:40:27
2025-02-07 10:10:31
Intakes are the other way around
Changed intake.
2025-03-05 13:17:40
2025-03-05 14:14:05
2025-03-14 18:23:44
2025-03-30 05:48:49
Release 2025-03
