Official File parts/6142275b.dat
Part Attributes:
File Header:

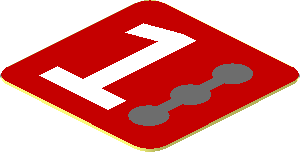

0 Sticker 0.8 x 0.8 with White Number 1 and 3 Dark Grey Circles Right on Red Background
0 Name: 6142275b.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2024-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Audi, e-tron, quattro, R18, Set 75872, Speed Champions
0 !HISTORY 2024-01-29 [OrionP] Official Update 2024-01
Show contents
0 // Primitives
1 16 -6.5 0 6.5 -1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 6.5 0 6.5 1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 0 -.25 0 0 0 8 0 .25 0 -6.5 0 0 box3u12.dat
1 16 -6.5 0 -6.5 -1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 6.5 0 -6.5 1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 -6.5 0 6.5 -1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 6.5 0 6.5 1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 -6.5 0 -6.5 -1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 16 6.5 0 -6.5 1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 4 -6.5 -.25 6.5 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 4 6.5 -.25 6.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 4 -6.5 -.25 -6.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 4 6.5 -.25 -6.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 72 4.125 -.25 4.25 1.5 0 0 0 1 0 0 0 1.5 2-4chrd.dat
1 72 4.125 -.25 4.25 -1.5 0 0 0 1 0 0 0 -1.5 3-16chrd.dat
1 72 4.125 -.25 4.25 1.5 0 0 0 1 0 0 0 -1.5 3-16chrd.dat
1 72 4.125 -.25 0 1.5 0 0 0 1 0 0 0 1.5 3-16chrd.dat
1 72 4.125 -.25 0 -1.5 0 0 0 1 0 0 0 1.5 3-16chrd.dat
1 72 4.125 -.25 0 -1.5 0 0 0 1 0 0 0 -1.5 3-16chrd.dat
1 72 4.125 -.25 0 1.5 0 0 0 1 0 0 0 -1.5 3-16chrd.dat
1 72 4.125 -.25 -4.25 1.5 0 0 0 1 0 0 0 1.5 3-16chrd.dat
1 72 4.125 -.25 -4.25 -1.5 0 0 0 1 0 0 0 1.5 3-16chrd.dat
1 72 4.125 -.25 -4.25 1.5 0 0 0 1 0 0 0 -1.5 2-4chrd.dat
1 4 4.125 -.25 4.25 0 0 1.5 0 1 0 1.5 0 0 7-16ndis.dat
1 4 4.125 -.25 4.25 0 0 -1.5 0 1 0 1.5 0 0 7-16ndis.dat
1 4 4.125 -.25 0 1.5 0 0 0 1 0 0 0 1.5 3-16ndis.dat
1 4 4.125 -.25 0 -1.5 0 0 0 1 0 0 0 1.5 3-16ndis.dat
1 4 4.125 -.25 0 -1.5 0 0 0 1 0 0 0 -1.5 3-16ndis.dat
1 4 4.125 -.25 0 1.5 0 0 0 1 0 0 0 -1.5 3-16ndis.dat
1 4 4.125 -.25 -4.25 0 0 -1.5 0 1 0 -1.5 0 0 7-16ndis.dat
1 4 4.125 -.25 -4.25 0 0 1.5 0 1 0 -1.5 0 0 7-16ndis.dat
0 // Bottom faces
4 16 6.5 0 8 8 0 6.5 -8 0 6.5 -6.5 0 8
4 16 6.5 0 -8 -6.5 0 -8 -8 0 -6.5 8 0 -6.5
0 // Lateral faces
4 16 -6.5 0 8 -6.5 -.25 8 6.5 -.25 8 6.5 0 8
4 16 -6.5 0 -8 6.5 0 -8 6.5 -.25 -8 -6.5 -.25 -8
0 // Top faces
0 // White number 1
3 15 -2.9375 -.25 -3.875 -5.5 -.25 -3.875 -5.5 -.25 -5.75
4 15 -2.9375 -.25 -3.875 -5.5 -.25 -5.75 1.5 -.25 -5.75 -1.0625 -.25 -3.875
3 15 -1.0625 -.25 -3.875 1.5 -.25 -5.75 1.5 -.25 -3.875
4 15 -1.0625 -.25 -3.875 -1.0625 -.25 5.75 -2.9375 -.25 3.74375 -2.9375 -.25 -3.875
3 15 -2.9375 -.25 3.74375 -1.0625 -.25 5.75 -2.5 -.25 5.75
4 15 -2.9375 -.25 3.74375 -2.5 -.25 5.75 -5.5 -.25 4.85 -5.5 -.25 2.975
0 // Grey faces
4 72 2.625 -.25 4.25 3.55095 -.25 2.86415 4.69905 -.25 2.86415 5.625 -.25 4.25
4 72 3.55095 -.25 2.86415 3.55095 -.25 1.38585 4.69905 -.25 1.38585 4.69905 -.25 2.86415
4 72 3.55095 -.25 1.38585 2.625 -.25 0 5.625 -.25 0 4.69905 -.25 1.38585
4 72 5.625 -.25 0 2.625 -.25 0 3.55095 -.25 -1.38585 4.69905 -.25 -1.38585
4 72 4.69905 -.25 -1.38585 3.55095 -.25 -1.38585 3.55095 -.25 -2.86415 4.69905 -.25 -2.86415
4 72 3.55095 -.25 -2.86415 2.625 -.25 -4.25 5.625 -.25 -4.25 4.69905 -.25 -2.86415
0 // Red faces
4 4 -6.5 -.25 8 -8 -.25 6.5 -5.5 -.25 4.85 -2.5 -.25 5.75
3 4 -6.5 -.25 8 -2.5 -.25 5.75 -1.0625 -.25 5.75
4 4 -6.5 -.25 8 -1.0625 -.25 5.75 2.625 -.25 5.75 6.5 -.25 8
3 4 6.5 -.25 8 2.625 -.25 5.75 4.125 -.25 5.75
4 4 6.5 -.25 8 4.125 -.25 5.75 5.625 -.25 5.75 8 -.25 6.5
3 4 -8 -.25 6.5 -5.5 -.25 2.975 -5.5 -.25 4.85
4 4 -8 -.25 6.5 -8 -.25 -6.5 -5.5 -.25 -3.875 -5.5 -.25 2.975
4 4 -5.5 -.25 -3.875 -2.9375 -.25 -3.875 -2.9375 -.25 3.74375 -5.5 -.25 2.975
3 4 -5.5 -.25 -5.75 -5.5 -.25 -3.875 -8 -.25 -6.5
3 4 8 -.25 6.5 5.625 -.25 5.75 5.625 -.25 4.25
3 4 8 -.25 6.5 5.625 -.25 4.25 5.625 -.25 2.75
3 4 8 -.25 6.5 5.625 -.25 2.75 5.625 -.25 1.5
3 4 8 -.25 6.5 5.625 -.25 1.5 5.625 -.25 0
3 4 8 -.25 6.5 5.625 -.25 0 8 -.25 -6.5
3 4 8 -.25 -6.5 5.625 -.25 0 5.625 -.25 -1.5
3 4 8 -.25 -6.5 5.625 -.25 -1.5 5.625 -.25 -2.75
3 4 8 -.25 -6.5 5.625 -.25 -2.75 5.625 -.25 -4.25
3 4 8 -.25 -6.5 5.625 -.25 -4.25 5.625 -.25 -5.75
4 4 -6.5 -.25 -8 1.5 -.25 -5.75 -5.5 -.25 -5.75 -8 -.25 -6.5
4 4 -6.5 -.25 -8 6.5 -.25 -8 2.625 -.25 -5.75 1.5 -.25 -5.75
3 4 6.5 -.25 -8 4.125 -.25 -5.75 2.625 -.25 -5.75
4 4 6.5 -.25 -8 8 -.25 -6.5 5.625 -.25 -5.75 4.125 -.25 -5.75
3 4 -1.0625 -.25 5.75 2.625 -.25 4.25 2.625 -.25 5.75
3 4 -1.0625 -.25 5.75 2.625 -.25 2.75 2.625 -.25 4.25
3 4 -1.0625 -.25 5.75 2.625 -.25 1.5 2.625 -.25 2.75
3 4 -1.0625 -.25 5.75 2.625 -.25 0 2.625 -.25 1.5
4 4 -1.0625 -.25 5.75 -1.0625 -.25 -3.875 1.5 -.25 -3.875 2.625 -.25 0
3 4 1.5 -.25 -3.875 2.625 -.25 -1.5 2.625 -.25 0
3 4 1.5 -.25 -3.875 2.625 -.25 -2.75 2.625 -.25 -1.5
4 4 1.5 -.25 -3.875 1.5 -.25 -5.75 2.625 -.25 -4.25 2.625 -.25 -2.75
3 4 1.5 -.25 -5.75 2.625 -.25 -5.75 2.625 -.25 -4.25
4 4 2.625 -.25 2.75 2.625 -.25 1.5 3.55095 -.25 1.38585 3.55095 -.25 2.86415
4 4 4.69905 -.25 2.86415 4.69905 -.25 1.38585 5.625 -.25 1.5 5.625 -.25 2.75
4 4 2.625 -.25 -1.5 2.625 -.25 -2.75 3.55095 -.25 -2.86415 3.55095 -.25 -1.38585
4 4 4.69905 -.25 -1.38585 4.69905 -.25 -2.86415 5.625 -.25 -2.75 5.625 -.25 -1.5
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2021-05-25 23:15:02
[PTadmin]
edited the part header.
2022-06-19 14:55:01
Added "Dark" to the description.
2024-01-01 21:31:56
2024-01-21 15:58:25
2024-01-29 02:24:00
Release 2024-01
