Official File parts/6148328ak.dat
Part Attributes:
File Header:

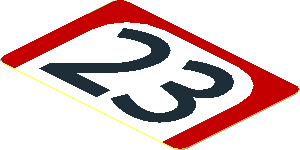

0 Sticker 1.2 x 1.8 with Black "23" in White Arch on Red Background
0 Name: 6148328ak.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS 917K, Bricklink 75876stk01, Brickowl 852010, Pit Lane, Porsche
0 !KEYWORDS Rebrickable 26357, set 75876, Speed Champions
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
Show contents
0 // Primitives
1 16 -16.5 0 10.6422 -1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 16.5 0 10.6422 1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 0 -.25 0 0 0 18 0 .25 0 10.6422 0 0 box3u12.dat
1 16 -16.5 0 -10.6422 -1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 16.5 0 -10.6422 1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 -16.5 0 10.6422 -1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 16.5 0 10.6422 1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 -16.5 0 -10.6422 -1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 16 16.5 0 -10.6422 1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 4 -16.5 -.25 10.6422 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 4 16.5 -.25 10.6422 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 4 -16.5 -.25 -10.6422 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 4 16.5 -.25 -10.6422 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 4 -7.5 -.25 3 -7 0 0 0 1 0 0 0 7 1-4ndis.dat
1 4 7.5 -.25 3 7 0 0 0 1 0 0 0 7 1-4ndis.dat
1 15 -7.5 -.25 3 -7 0 0 0 1 0 0 0 7 1-8chrd.dat
1 15 -7.5 -.25 3 0 0 -7 0 1 0 7 0 0 1-8chrd.dat
1 15 7.5 -.25 3 7 0 0 0 1 0 0 0 7 1-4chrd.dat
0 // Bottom faces
4 16 16.5 0 12.1422 18 0 10.6422 -18 0 10.6422 -16.5 0 12.1422
4 16 16.5 0 -12.1422 -16.5 0 -12.1422 -18 0 -10.6422 18 0 -10.6422
0 // Lateral faces
4 16 -16.5 0 12.1422 -16.5 -.25 12.1422 16.5 -.25 12.1422 16.5 0 12.1422
3 16 -16.5 0 -12.1422 -14.5 -.25 -12.1422 -16.5 -.25 -12.1422
4 16 -16.5 0 -12.1422 16.5 0 -12.1422 14.5 -.25 -12.1422 -14.5 -.25 -12.1422
3 16 16.5 0 -12.1422 16.5 -.25 -12.1422 14.5 -.25 -12.1422
0 // Top faces
0 // Black numer "23"
0 // Number "2"
4 0 -11.64 -.25 6.4655 -10.56 -.25 3.9517 -9.5186 -.25 4.577 -10.3308 -.25 7.1689
4 0 -10.3308 -.25 7.1689 -9.5186 -.25 4.577 -8.3934 -.25 5.0347 -8.9357 -.25 7.6815
4 0 -8.9357 -.25 7.6815 -8.3934 -.25 5.0347 -7.2111 -.25 5.3137 -7.4825 -.25 7.9932
4 0 -7.4825 -.25 7.9932 -7.2111 -.25 5.3137 -6 -.25 5.4075 -6 -.25 8.0978
4 0 -6 -.25 8.0978 -6 -.25 5.4075 -5.1927 -.25 5.2469 -4.1631 -.25 7.7324
4 0 -4.1631 -.25 7.7324 -5.1927 -.25 5.2469 -4.5082 -.25 4.7896 -2.6059 -.25 6.6919
4 0 -2.6059 -.25 6.6919 -4.5082 -.25 4.7896 -4.0509 -.25 4.1051 -1.5654 -.25 5.1347
4 0 -1.5654 -.25 5.1347 -4.0509 -.25 4.1051 -3.8903 -.25 3.2978 -1.2 -.25 3.2978
4 0 -1.2 -.25 3.2978 -3.8903 -.25 3.2978 -4.0212 -.25 1.9592 -1.3819 -.25 1.438
4 0 -1.3819 -.25 1.438 -4.0212 -.25 1.9592 -4.409 -.25 .6714 -1.9206 -.25 -.3513
4 0 -1.9206 -.25 -.3513 -4.409 -.25 .6714 -5.0389 -.25 -.517 -2.7957 -.25 -2.0023
4 0 -2.7957 -.25 -2.0023 -5.0389 -.25 -.517 -5.887 -.25 -1.5608 -3.9741 -.25 -3.4525
4 0 -7.5232 -.25 -7.0414 -12 -.25 -9.7774 -.72 -.25 -9.7774 -.72 -.25 -7.0414
4 0 -7.5232 -.25 -7.0414 -3.9741 -.25 -3.4525 -5.887 -.25 -1.5608 -12 -.25 -7.7422
3 0 -7.5232 -.25 -7.0414 -12 -.25 -7.7422 -12 -.25 -9.7774
0 // Number "3"
4 0 1.68 -.25 -6.0048 .864 -.25 -8.6163 2.2428 -.25 -9.2757 2.8478 -.25 -6.6409
4 0 2.8478 -.25 -6.6409 2.2428 -.25 -9.2757 3.6942 -.25 -9.7545 4.0941 -.25 -7.1047
4 0 4.0941 -.25 -7.1047 3.6942 -.25 -9.7545 5.1947 -.25 -10.0449 5.3936 -.25 -7.3868
4 0 5.3936 -.25 -7.3868 5.1947 -.25 -10.0449 6.72 -.25 -10.1422 6.72 -.25 -7.4815
4 0 6.72 -.25 -7.4815 6.72 -.25 -10.1422 8.7406 -.25 -9.7403 7.7224 -.25 -7.2821
4 0 7.7224 -.25 -7.2821 8.7406 -.25 -9.7403 10.4535 -.25 -8.5957 8.5721 -.25 -6.7143
4 0 8.5721 -.25 -6.7143 10.4535 -.25 -8.5957 11.5981 -.25 -6.8828 9.1399 -.25 -5.8646
4 0 9.1399 -.25 -5.8646 11.5981 -.25 -6.8828 12 -.25 -4.8622 9.3393 -.25 -4.8622
4 0 9.3393 -.25 -4.8622 12 -.25 -4.8622 11.7696 -.25 -3.393 9.193 -.25 -3.999
4 0 7.3108 -.25 -2.3104 8.1187 -.25 -2.6476 10.0571 -.25 -1.0051 8.7393 -.25 -.3157
4 0 11.1006 -.25 -2.0648 10.0571 -.25 -1.0051 8.1187 -.25 -2.6476 8.7704 -.25 -3.2323
4 0 9.193 -.25 -3.999 11.7696 -.25 -3.393 11.1006 -.25 -2.0648 8.7704 -.25 -3.2323
4 0 7.4137 -.25 1.3822 9.7687 -.25 .2445 10.5813 -.25 1.0891 8.0295 -.25 1.8622
4 0 11.1012 -.25 2.1395 8.4344 -.25 2.5298 8.0295 -.25 1.8622 10.5813 -.25 1.0891
4 0 8.4344 -.25 2.5298 11.1012 -.25 2.1395 11.28 -.25 3.2978 8.5756 -.25 3.2978
4 0 8.5756 -.25 3.2978 11.28 -.25 3.2978 10.9146 -.25 5.1347 8.4161 -.25 4.0997
4 0 8.4161 -.25 4.0997 10.9146 -.25 5.1347 9.8741 -.25 6.6919 7.9618 -.25 4.7796
4 0 7.9618 -.25 4.7796 9.8741 -.25 6.6919 8.3169 -.25 7.7324 7.2819 -.25 5.2339
4 0 7.2819 -.25 5.2339 8.3169 -.25 7.7324 6.48 -.25 8.0978 6.48 -.25 5.3934
4 0 5.0672 -.25 8.0029 5.3405 -.25 5.3103 6.48 -.25 5.3934 6.48 -.25 8.0978
4 0 5.3405 -.25 5.3103 5.0672 -.25 8.0029 3.6798 -.25 7.7198 4.2251 -.25 5.0628
4 0 4.2251 -.25 5.0628 3.6798 -.25 7.7198 2.3427 -.25 7.2536 3.1574 -.25 4.6561
4 0 3.1574 -.25 4.6561 2.3427 -.25 7.2536 1.08 -.25 6.6127 2.16 -.25 4.0989
3 0 8.7393 -.25 -.3157 6.6674 -.25 1.1525 7.3108 -.25 -2.3104
4 0 3.36 -.25 .7643 3.36 -.25 -1.3957 7.3108 -.25 -2.3104 6.6674 -.25 1.1525
4 0 6.6674 -.25 1.1525 8.7393 -.25 -.3157 9.7687 -.25 .2445 7.4137 -.25 1.3822
0 // Red faces
4 4 -16.5 -.25 12.1422 -18 -.25 10.6422 -14.5 -.25 3 -14.5 -.25 10
3 4 -16.5 -.25 12.1422 -14.5 -.25 10 -7.5 -.25 10
4 4 -16.5 -.25 12.1422 -7.5 -.25 10 7.5 -.25 10 16.5 -.25 12.1422
3 4 16.5 -.25 12.1422 7.5 -.25 10 14.5 -.25 10
4 4 16.5 -.25 12.1422 14.5 -.25 10 14.5 -.25 3 18 -.25 10.6422
3 4 -18 -.25 -10.6422 -14.5 -.25 3 -18 -.25 10.6422
4 4 -18 -.25 -10.6422 -16.5 -.25 -12.1422 -14.5 -.25 -12.1422 -14.5 -.25 3
3 4 18 -.25 -10.6422 18 -.25 10.6422 14.5 -.25 3
4 4 18 -.25 -10.6422 14.5 -.25 3 14.5 -.25 -12.1422 16.5 -.25 -12.1422
0 // White faces
4 15 -14.5 -.25 -12.1422 -12 -.25 -9.7774 -12 -.25 -7.7422 -14.5 -.25 3
4 15 -14.5 -.25 -12.1422 14.5 -.25 -12.1422 -.72 -.25 -9.7774 -12 -.25 -9.7774
4 15 -7.5 -.25 10 -12.4497 -.25 7.9497 -11.64 -.25 6.4655 -10.3308 -.25 7.1689
3 15 -7.5 -.25 10 -10.3308 -.25 7.1689 -8.9357 -.25 7.6815
3 15 -7.5 -.25 10 -8.9357 -.25 7.6815 -7.4825 -.25 7.9932
3 15 -7.5 -.25 10 -7.4825 -.25 7.9932 -6 -.25 8.0978
3 15 -7.5 -.25 10 -6 -.25 8.0978 -4.1631 -.25 7.7324
4 15 -7.5 -.25 10 -4.1631 -.25 7.7324 1.08 -.25 6.6127 2.3427 -.25 7.2536
4 15 -7.5 -.25 10 2.3427 -.25 7.2536 3.6798 -.25 7.7198 7.5 -.25 10
3 15 7.5 -.25 10 3.6798 -.25 7.7198 5.0672 -.25 8.0029
3 15 7.5 -.25 10 5.0672 -.25 8.0029 6.48 -.25 8.0978
3 15 7.5 -.25 10 6.48 -.25 8.0978 8.3169 -.25 7.7324
3 15 7.5 -.25 10 8.3169 -.25 7.7324 9.8741 -.25 6.6919
3 15 7.5 -.25 10 9.8741 -.25 6.6919 14.5 -.25 3
3 15 1.08 -.25 6.6127 -4.1631 -.25 7.7324 -2.6059 -.25 6.6919
3 15 1.08 -.25 6.6127 -2.6059 -.25 6.6919 -1.5654 -.25 5.1347
4 15 2.16 -.25 4.0989 1.08 -.25 6.6127 -1.5654 -.25 5.1347 -1.2 -.25 3.2978
3 15 2.16 -.25 4.0989 -1.2 -.25 3.2978 -1.3819 -.25 1.438
4 15 2.16 -.25 4.0989 -1.3819 -.25 1.438 -1.9206 -.25 -.3513 3.36 -.25 .7643
4 15 2.16 -.25 4.0989 3.36 -.25 .7643 6.6674 -.25 1.1525 7.4137 -.25 1.3822
4 15 2.16 -.25 4.0989 7.4137 -.25 1.3822 8.0295 -.25 1.8622 8.4344 -.25 2.5298
4 15 2.16 -.25 4.0989 8.4344 -.25 2.5298 8.5756 -.25 3.2978 8.4161 -.25 4.0997
4 15 2.16 -.25 4.0989 8.4161 -.25 4.0997 7.9618 -.25 4.7796 7.2819 -.25 5.2339
4 15 2.16 -.25 4.0989 7.2819 -.25 5.2339 6.48 -.25 5.3934 5.3405 -.25 5.3103
4 15 2.16 -.25 4.0989 5.3405 -.25 5.3103 4.2251 -.25 5.0628 3.1574 -.25 4.6561
4 15 3.36 -.25 -1.3957 3.36 -.25 .7643 -1.9206 -.25 -.3513 -2.7957 -.25 -2.0023
3 15 3.36 -.25 -1.3957 -2.7957 -.25 -2.0023 -3.9741 -.25 -3.4525
4 15 3.36 -.25 -1.3957 -3.9741 -.25 -3.4525 -7.5232 -.25 -7.0414 -.72 -.25 -7.0414
4 15 -.72 -.25 -7.0414 -.72 -.25 -9.7774 1.68 -.25 -6.0048 3.36 -.25 -1.3957
4 15 3.36 -.25 -1.3957 1.68 -.25 -6.0048 2.8478 -.25 -6.6409 4.0941 -.25 -7.1047
4 15 3.36 -.25 -1.3957 4.0941 -.25 -7.1047 5.3936 -.25 -7.3868 6.72 -.25 -7.4815
4 15 3.36 -.25 -1.3957 6.72 -.25 -7.4815 7.7224 -.25 -7.2821 8.5721 -.25 -6.7143
4 15 3.36 -.25 -1.3957 8.5721 -.25 -6.7143 9.1399 -.25 -5.8646 9.3393 -.25 -4.8622
4 15 3.36 -.25 -1.3957 9.3393 -.25 -4.8622 9.193 -.25 -3.999 8.7704 -.25 -3.2323
4 15 3.36 -.25 -1.3957 8.7704 -.25 -3.2323 8.1187 -.25 -2.6476 7.3108 -.25 -2.3104
3 15 -.72 -.25 -9.7774 .864 -.25 -8.6163 1.68 -.25 -6.0048
3 15 .864 -.25 -8.6163 -.72 -.25 -9.7774 2.2428 -.25 -9.2757
3 15 2.2428 -.25 -9.2757 -.72 -.25 -9.7774 3.6942 -.25 -9.7545
4 15 -10.56 -.25 3.9517 -11.64 -.25 6.4655 -12.4497 -.25 7.9497 -14.5 -.25 3
4 15 -10.56 -.25 3.9517 -14.5 -.25 3 -12 -.25 -7.7422 -5.887 -.25 -1.5608
4 15 -10.56 -.25 3.9517 -5.887 -.25 -1.5608 -5.0389 -.25 -.517 -4.409 -.25 .6714
4 15 -10.56 -.25 3.9517 -4.409 -.25 .6714 -4.0212 -.25 1.9592 -3.8903 -.25 3.2978
3 15 -10.56 -.25 3.9517 -3.8903 -.25 3.2978 -4.0509 -.25 4.1051
4 15 -10.56 -.25 3.9517 -4.0509 -.25 4.1051 -4.5082 -.25 4.7896 -5.1927 -.25 5.2469
4 15 -10.56 -.25 3.9517 -5.1927 -.25 5.2469 -6 -.25 5.4075 -7.2111 -.25 5.3137
4 15 -10.56 -.25 3.9517 -7.2111 -.25 5.3137 -8.3934 -.25 5.0347 -9.5186 -.25 4.577
3 15 14.5 -.25 3 9.8741 -.25 6.6919 10.9146 -.25 5.1347
3 15 14.5 -.25 3 10.9146 -.25 5.1347 11.28 -.25 3.2978
3 15 14.5 -.25 3 11.28 -.25 3.2978 11.1012 -.25 2.1395
3 15 14.5 -.25 3 11.1012 -.25 2.1395 10.5813 -.25 1.0891
4 15 10.0571 -.25 -1.0051 14.5 -.25 3 10.5813 -.25 1.0891 9.7687 -.25 .2445
3 15 9.7687 -.25 .2445 8.7393 -.25 -.3157 10.0571 -.25 -1.0051
3 15 14.5 -.25 3 10.0571 -.25 -1.0051 11.1006 -.25 -2.0648
3 15 14.5 -.25 3 11.1006 -.25 -2.0648 11.7696 -.25 -3.393
3 15 14.5 -.25 3 11.7696 -.25 -3.393 12 -.25 -4.8622
4 15 14.5 -.25 -12.1422 14.5 -.25 3 12 -.25 -4.8622 11.5981 -.25 -6.8828
3 15 14.5 -.25 -12.1422 11.5981 -.25 -6.8828 10.4535 -.25 -8.5957
3 15 14.5 -.25 -12.1422 10.4535 -.25 -8.5957 8.7406 -.25 -9.7403
3 15 14.5 -.25 -12.1422 8.7406 -.25 -9.7403 6.72 -.25 -10.1422
3 15 14.5 -.25 -12.1422 6.72 -.25 -10.1422 5.1947 -.25 -10.0449
4 15 14.5 -.25 -12.1422 5.1947 -.25 -10.0449 3.6942 -.25 -9.7545 -.72 -.25 -9.7774
