File Detail parts/6148328bi.dat

Download Download zip file View sticker sheet parts

Official File parts/6148328bi.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

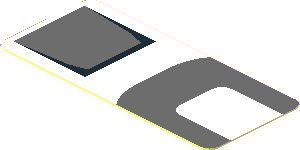

Sticker 0.8 x 1.8 with Dark Grey Lines on White Background (Needs Work)

File Header:

0 Sticker  0.8 x  1.8 with Dark Grey Lines on White Background (Needs Work)
0 Name: 6148328bi.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP Needs work: halftone areas in the headlamp are simplified with dark grey faces

0 BFC CERTIFY CCW

0 !KEYWORDS 919, Bricklink 75876stk01, Brickowl 852010, Hybrid, Pit Lane
0 !KEYWORDS Rebrickable 26357, set 75876, Speed Champions

0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08

Show contents

0 // Primitives
1 16 -16.5 0 6.5 -1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 16.5 0 6.5 1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 -16.5 0 -6.5 -1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 16.5 0 -6.5 1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 -16.5 0 6.5 -1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 16.5 0 6.5 1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 -16.5 0 -6.5 -1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 16 16.5 0 -6.5 1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 15 -16.5 -.25 6.5 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 72 16.5 -.25 6.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 15 -16.5 -.25 -6.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 72 16.5 -.25 -6.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 72 9.3 -.25 2.85 -1.5 0 0 0 1 0 0 0 1.5 1-4ndis.dat
1 15 9.3 -.25 2.85 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 72 9.3 -.25 -2.85 -1.5 0 0 0 1 0 0 0 -1.5 1-4ndis.dat
1 15 9.3 -.25 -2.85 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
0 // Bottom faces
4 16 16.5 0 8 18 0 6.5 -18 0 6.5 -16.5 0 8
4 16 18 0 6.5 18 0 -6.5 -18 0 -6.5 -18 0 6.5
4 16 16.5 0 -8 -16.5 0 -8 -18 0 -6.5 18 0 -6.5
0 // Lateral faces
3 16 -16.5 0 8 -16.5 -.25 8 2.2996 -.25 8
4 16 -16.5 0 8 2.2996 -.25 8 16.5 -.25 8 16.5 0 8
4 16 -18 0 6.5 -18 0 -6.5 -18 -.25 -6.5 -18 -.25 6.5
3 16 18 0 6.5 18 -.25 6.5 18 -.25 4.35
4 16 18 0 6.5 18 -.25 4.35 18 -.25 -4.35 18 0 -6.5
3 16 18 0 -6.5 18 -.25 -4.35 18 -.25 -6.5
4 16 -16.5 0 -8 16.5 0 -8 16.5 -.25 -8 2.2996 -.25 -8
3 16 -16.5 0 -8 2.2996 -.25 -8 -16.5 -.25 -8
0 // Top faces
0 // Black faces
3 0 -5 -.25 6 -17 -.25 6 -8.5 -.25 5.25
3 0 -5 -.25 6 -8.5 -.25 5.25 -6 -.25 4.5
4 0 -5 -.25 6 -6 -.25 4.5 -6 -.25 -4.5 -5 -.25 -6
3 0 -5 -.25 -6 -6 -.25 -4.5 -8.5 -.25 -5.25
3 0 -5 -.25 -6 -8.5 -.25 -5.25 -17 -.25 -6
0 // Dark grey faces (actually halftone of ndis 15 and disc 0)
4 72 -8.5 -.25 5.25 -17 -.25 6 -17 -.25 -6 -8.5 -.25 -5.25
4 72 -8.5 -.25 5.25 -8.5 -.25 -5.25 -6 -.25 -4.5 -6 -.25 4.5
0 // Dark grey faces
4 72 7.8 -.25 4.35 9.3 -.25 4.35 16.5 -.25 8 2.2996 -.25 8
4 72 7.8 -.25 4.35 2.2996 -.25 8 1.7658 -.25 7.2 1.2621 -.25 6.1795
4 72 7.8 -.25 4.35 1.2621 -.25 6.1795 .8967 -.25 5.1016 .6748 -.25 3.9854
4 72 7.8 -.25 4.35 .6748 -.25 3.9854 .6 -.25 2.85 7.8 -.25 2.85
4 72 .6 -.25 2.85 .6 -.25 -2.85 7.8 -.25 -2.85 7.8 -.25 2.85
4 72 7.8 -.25 -4.35 7.8 -.25 -2.85 .6 -.25 -2.85 .6748 -.25 -3.9854
4 72 7.8 -.25 -4.35 .6748 -.25 -3.9854 .8967 -.25 -5.1016 1.2621 -.25 -6.1795
4 72 7.8 -.25 -4.35 1.2621 -.25 -6.1795 1.7658 -.25 -7.2 2.2996 -.25 -8
4 72 7.8 -.25 -4.35 2.2996 -.25 -8 16.5 -.25 -8 9.3 -.25 -4.35
4 72 9.3 -.25 4.35 18 -.25 4.35 18 -.25 6.5 16.5 -.25 8
4 72 9.3 -.25 -4.35 16.5 -.25 -8 18 -.25 -6.5 18 -.25 -4.35
0 // White faces
4 15 -17 -.25 6 -18 -.25 6.5 -18 -.25 -6.5 -17 -.25 -6
4 15 -16.5 -.25 8 -18 -.25 6.5 -17 -.25 6 -5 -.25 6
4 15 -5 -.25 6 1.7658 -.25 7.2 2.2996 -.25 8 -16.5 -.25 8
3 15 -5 -.25 6 1.2621 -.25 6.1795 1.7658 -.25 7.2
4 15 -5 -.25 6 -5 -.25 -6 .6 -.25 -2.85 .6 -.25 2.85
3 15 -5 -.25 6 .6 -.25 2.85 .6748 -.25 3.9854
3 15 -5 -.25 6 .6748 -.25 3.9854 .8967 -.25 5.1016
3 15 -5 -.25 6 .8967 -.25 5.1016 1.2621 -.25 6.1795
4 15 9.3 -.25 4.35 7.8 -.25 2.85 7.8 -.25 -2.85 9.3 -.25 -4.35
4 15 9.3 -.25 4.35 9.3 -.25 -4.35 18 -.25 -4.35 18 -.25 4.35
3 15 -5 -.25 -6 1.7658 -.25 -7.2 1.2621 -.25 -6.1795
3 15 -5 -.25 -6 1.2621 -.25 -6.1795 .8967 -.25 -5.1016
3 15 -5 -.25 -6 .8967 -.25 -5.1016 .6748 -.25 -3.9854
3 15 -5 -.25 -6 .6748 -.25 -3.9854 .6 -.25 -2.85
4 15 -5 -.25 -6 -16.5 -.25 -8 2.2996 -.25 -8 1.7658 -.25 -7.2
4 15 -5 -.25 -6 -17 -.25 -6 -18 -.25 -6.5 -16.5 -.25 -8

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Massimo Maso [Sirio]

initially submitted the part.

2022-09-29 22:15:02

Willy Tschager [Holly-Wood]

edited the part header.

2023-02-16 09:59:19

Willy Tschager [Holly-Wood]
