Unofficial File parts/6148328bp.dat
Part Attributes:
File Header:

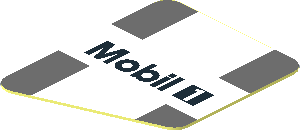

0 Sticker 1.0 x 0.8 with Black Mobil1 Logo and Dark Grey Lines on White Background Right
0 Name: 6148328bp.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS 919, Bricklink 75876stk01, Brickowl 852010, Hybrid, Pit Lane
0 !KEYWORDS Porsche, Rebrickable 26357, set 75876, Speed Champions
Show contents
0 // Logo primitive
1 0 0 -.25 0 3.3 0 0 0 1 0 0 0 3.3 logo-mobil1-text.dat
1 15 0 -.25 0 3.3 0 0 0 1 0 0 0 3.3 logo-mobil1-text-box.dat
1 15 0 -.25 0 3.3 0 0 0 1 0 0 0 3.3 logo-mobil1-number.dat
1 0 0 -.25 0 3.3 0 0 0 1 0 0 0 3.3 logo-mobil1-number-box.dat
0 // Primitives
1 16 -6.5 0 8.5 -1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 6.5 0 8.5 1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 -6.5 0 -8.5 -1.5 0 0 0 -1 0 0 0 -1.5 5-16chrd.dat
1 16 6.5 0 -3.7 1.5 0 0 0 -1 0 0 0 -1.5 3-16chrd.dat
1 16 -6.5 0 8.5 -1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 6.5 0 8.5 1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 -6.5 0 -8.5 -1.5 0 0 0 -.25 0 0 0 -1.5 5-16cyli.dat
1 16 6.5 0 -3.7 1.5 0 0 0 -.25 0 0 0 -1.5 3-16cyli.dat
1 72 -6.5 -.25 8.5 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 72 6.5 -.25 8.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 72 -6.5 -.25 -8.5 -1.5 0 0 0 1 0 0 0 -1.5 5-16chrd.dat
1 72 6.5 -.25 -3.7 1.5 0 0 0 1 0 0 0 -1.5 3-16chrd.dat
0 // Bottom faces
4 16 6.5 0 10 8 0 8.5 -8 0 8.5 -6.5 0 10
4 16 -8 0 8.5 8 0 8.5 8 0 -3.7 -8 0 -8.5
4 16 -8 0 -8.5 8 0 -3.7 7.07405 0 -5.08585 -5.92595 0 -9.88585
0 // Lateral faces
3 16 -6.5 0 10 -6.5 -.25 10 -4.35 -.25 10
4 16 -6.5 0 10 -4.35 -.25 10 4.35 -.25 10 6.5 0 10
3 16 6.5 0 10 4.35 -.25 10 6.5 -.25 10
3 16 -8 0 8.5 -8 -.25 3.5 -8 -.25 8.5
4 16 -8 0 8.5 -8 0 -8.5 -8 -.25 -2.5 -8 -.25 3.5
3 16 -8 0 -8.5 -8 -.25 -8.5 -8 -.25 -2.5
3 16 8 0 8.5 8 -.25 8.5 8 -.25 3.5
4 16 8 0 8.5 8 -.25 3.5 8 -.25 -2.5 8 0 -3.7
3 16 8 0 -3.7 8 -.25 -2.5 8 -.25 -3.7
3 16 -5.92595 0 -9.88585 -4.35 -.25 -9.3042 -5.92595 -.25 -9.88585
4 16 -5.92595 0 -9.88585 7.07405 0 -5.08585 4.35 -.25 -6.0917 -4.35 -.25 -9.3042
3 16 7.07405 0 -5.08585 7.07405 -.25 -5.08585 4.35 -.25 -6.0917
0 // Conditional lines
5 24 -5.92595 -.25 -9.88585 -5.92595 0 -9.88585 -6.5 -.25 -10 7.07405 -.25 -5.08585
5 24 7.07405 -.25 -5.08585 7.07405 0 -5.08585 7.56065 -.25 -4.76065 -5.92595 -.25 -9.88585
0 // Top faces
0 // Dark grey faces
4 72 -4.35 -.25 3.5 -6.5 -.25 10 -8 -.25 8.5 -8 -.25 3.5
3 72 -4.35 -.25 3.5 -4.35 -.25 10 -6.5 -.25 10
3 72 4.35 -.25 3.5 6.5 -.25 10 4.35 -.25 10
4 72 4.35 -.25 3.5 8 -.25 3.5 8 -.25 8.5 6.5 -.25 10
4 72 -4.35 -.25 -2.5 -8 -.25 -2.5 -8 -.25 -8.5 -5.92595 -.25 -9.88585
3 72 -4.35 -.25 -2.5 -5.92595 -.25 -9.88585 -4.35 -.25 -9.3042
3 72 4.35 -.25 -2.5 4.35 -.25 -6.0917 7.07405 -.25 -5.08585
4 72 4.35 -.25 -2.5 7.07405 -.25 -5.08585 8 -.25 -3.7 8 -.25 -2.5
0 // White faces
4 15 -4.35 -.25 3.5 4.35 -.25 3.5 4.35 -.25 10 -4.35 -.25 10
4 15 -8 -.25 3.5 -8 -.25 -2.5 -6.27 -.25 -1.3695 -6.27 -.25 -1.3035
3 15 -8 -.25 3.5 -6.27 -.25 -1.3035 -6.27 -.25 1.3695
3 15 -8 -.25 3.5 -6.27 -.25 1.3695 -5.412 -.25 1.3695
3 15 -8 -.25 3.5 -5.412 -.25 1.3695 -4.455 -.25 1.3695
3 15 -8 -.25 3.5 -4.455 -.25 1.3695 -3.597 -.25 1.3695
3 15 -8 -.25 3.5 -3.597 -.25 1.3695 -1.056 -.25 1.3695
4 15 -8 -.25 3.5 -1.056 -.25 1.3695 -.495 -.25 1.3695 -4.35 -.25 3.5
4 15 -4.35 -.25 3.5 -.495 -.25 1.3695 1.221 -.25 1.3695 4.35 -.25 3.5
4 15 8 -.25 3.5 4.35 -.25 3.5 1.221 -.25 1.3695 1.782 -.25 1.3695
3 15 8 -.25 3.5 1.782 -.25 1.3695 2.0625 -.25 1.3695
3 15 8 -.25 3.5 2.0625 -.25 1.3695 2.6235 -.25 1.3695
3 15 8 -.25 3.5 2.6235 -.25 1.3695 3.5805 -.25 1.3695
3 15 8 -.25 3.5 3.5805 -.25 1.3695 6.27 -.25 1.3695
3 15 8 -.25 3.5 6.27 -.25 1.3695 6.27 -.25 -1.3035
4 15 8 -.25 3.5 6.27 -.25 -1.3035 6.27 -.25 -1.3695 8 -.25 -2.5
3 15 -8 -.25 -2.5 -3.4485 -.25 -1.3695 -6.27 -.25 -1.3695
3 15 -8 -.25 -2.5 -2.277 -.25 -1.3695 -3.4485 -.25 -1.3695
4 15 -8 -.25 -2.5 -4.35 -.25 -2.5 -1.155 -.25 -1.3695 -2.277 -.25 -1.3695
3 15 -4.35 -.25 -2.5 .066 -.25 -1.3695 -1.155 -.25 -1.3695
4 15 -4.35 -.25 -2.5 4.35 -.25 -2.5 1.122 -.25 -1.3695 .066 -.25 -1.3695
4 15 8 -.25 -2.5 1.92225 -.25 -1.3695 1.122 -.25 -1.3695 4.35 -.25 -2.5
3 15 8 -.25 -2.5 3.102 -.25 -1.3695 1.92225 -.25 -1.3695
3 15 8 -.25 -2.5 6.27 -.25 -1.3695 3.102 -.25 -1.3695
4 15 -4.35 -.25 -2.5 -4.35 -.25 -9.3042 4.35 -.25 -6.0917 4.35 -.25 -2.5
Status:
Needs More Votes (CN)
Current Votes:
| User | Vote |
|---|---|
| Holly-Wood | Certify |
Official parents and subparts
Part Events:
2022-09-29 22:15:03
issue with subfile
* Subfile mismatch
* I don't like the orientation. should be in sync with bm and bo
* I don't like the orientation. should be in sync with bm and bo
2023-03-17 23:37:21
Isn't there a rule to put the text horizontally?
2023-03-18 07:36:53
I think this orientation is correct. bm and bo should be changed instead.
2023-03-18 07:38:50
2024-01-19 11:19:48
Header Edits
keywords:
919, Hybrid, Pit Lane, Porsche, set 75876, Speed Champions
to
919, Hybrid, Pit Lane, Porsche, set 75876, Speed Champions, Bricklink 75876stk01, Brickowl 852010, Rebrickable 26357
Added keywords
2024-01-19 11:41:21
2024-05-15 11:09:53
Should use text and text-box primitives
2024-10-02 16:48:48
Header Edits
description:
Sticker 1.0 x 0.8 with Black "Mobil1" Logo and Dark Grey Lines on White Background Right
to
Sticker 1.0 x 0.8 with Black Mobil1 Logo and Dark Grey Lines on White Background Right
Splitted Mobil1 logo in two part fo different color combination.
Missing one comp condline.
Added missing condlines.
2025-04-12 11:24:40
