Unofficial File parts/6148328k.dat
Part Attributes:
File Header:

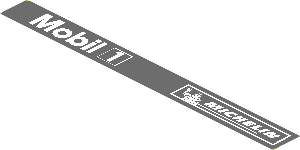

0 Sticker 0.8 x 7.8 with White Mobil1 and Michelin Logos on Dark Grey Background
0 Name: 6148328k.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS 917K, 919, Bricklink 75876stk01, Hybrid, Pit Lane, Porsche
0 !KEYWORDS Rebrickable 26357, set 75876, Speed Champions
Show contents
0 // Stickerback
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\stickerback008x078.dat
0 // Subparts
1 72 46 -.25 0 .44 0 0 0 1 0 0 0 .44 s\6148328ks01.dat
0 // Logo primitive
1 15 -39.7 -.25 0 13 0 0 0 1 0 0 0 13 logo-mobil1-text.dat
1 72 -39.7 -.25 0 13 0 0 0 1 0 0 0 13 logo-mobil1-text-box.dat
1 15 -39.7 -.25 0 13 0 0 0 1 0 0 0 13 logo-mobil1-number.dat
1 72 -39.7 -.25 0 13 0 0 0 1 0 0 0 13 logo-mobil1-number-box.dat
1 72 46 -.25 0 .44 0 0 0 1 0 0 0 .44 s\6221655aps06.dat
1 72 46 -.25 0 .44 0 0 0 1 0 0 0 .44 s\6221655aps05.dat
1 72 46 -.25 0 .44 0 0 0 1 0 0 0 .44 s\6221655aps02.dat
1 72 46 -.25 0 .44 0 0 0 1 0 0 0 .44 s\6221655aps03.dat
1 15 46 -.25 0 .44 0 0 0 1 0 0 0 .44 s\6221655aps07.dat
1 72 46 -.25 0 .44 0 0 0 1 0 0 0 .44 s\6221655aps04.dat
0 // Primitives
1 72 -76.5 -.25 6.5 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 72 76.5 -.25 6.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 72 -76.5 -.25 -6.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 72 76.5 -.25 -6.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
0 // Top face
0 // Grey faces
4 72 -76.5 -.25 8 -78 -.25 6.5 -64.4 -.25 5.395 -61.02 -.25 5.395
4 72 -76.5 -.25 8 -15 -.25 5.395 16.542 -.25 5.401 76.5 -.25 8
4 72 76.5 -.25 8 16.542 -.25 5.401 75.458 -.25 5.401 78 -.25 6.5
3 72 -78 -.25 6.5 -64.4 -.25 -5.135 -64.4 -.25 5.395
4 72 -78 -.25 6.5 -78 -.25 -6.5 -64.4 -.25 -5.395 -64.4 -.25 -5.135
3 72 16.542 -.25 5.401 -15 -.25 5.395 -15 -.25 -5.135
4 72 16.542 -.25 5.401 -15 -.25 -5.135 -15 -.25 -5.395 16.542 -.25 -5.401
4 72 78 -.25 6.5 75.458 -.25 5.401 75.458 -.25 -5.401 78 -.25 -6.5
4 72 -76.5 -.25 -8 -53.285 -.25 -5.395 -64.4 -.25 -5.395 -78 -.25 -6.5
4 72 -76.5 -.25 -8 76.5 -.25 -8 16.542 -.25 -5.401 -15 -.25 -5.395
3 72 -76.5 -.25 8 -61.02 -.25 5.395 -57.25 -.25 5.395
3 72 -76.5 -.25 8 -57.25 -.25 5.395 -53.87 -.25 5.395
3 72 -76.5 -.25 8 -53.87 -.25 5.395 -43.86 -.25 5.395
3 72 -76.5 -.25 8 -43.86 -.25 5.395 -41.65 -.25 5.395
3 72 -76.5 -.25 8 -41.65 -.25 5.395 -34.89 -.25 5.395
3 72 -76.5 -.25 8 -34.89 -.25 5.395 -32.68 -.25 5.395
3 72 -76.5 -.25 8 -32.68 -.25 5.395 -31.575 -.25 5.395
3 72 -76.5 -.25 8 -31.575 -.25 5.395 -29.365 -.25 5.395
3 72 -76.5 -.25 8 -29.365 -.25 5.395 -25.595 -.25 5.395
3 72 -76.5 -.25 8 -25.595 -.25 5.395 -15 -.25 5.395
3 72 -76.5 -.25 -8 -48.67 -.25 -5.395 -53.285 -.25 -5.395
3 72 -76.5 -.25 -8 -44.25 -.25 -5.395 -48.67 -.25 -5.395
3 72 -76.5 -.25 -8 -39.44 -.25 -5.395 -44.25 -.25 -5.395
3 72 -76.5 -.25 -8 -35.28 -.25 -5.395 -39.44 -.25 -5.395
3 72 -76.5 -.25 -8 -32.1275 -.25 -5.395 -35.28 -.25 -5.395
3 72 -76.5 -.25 -8 -27.48 -.25 -5.395 -32.1275 -.25 -5.395
3 72 -76.5 -.25 -8 -15 -.25 -5.395 -27.48 -.25 -5.395
4 72 76.5 -.25 -8 78 -.25 -6.5 75.458 -.25 -5.401 16.542 -.25 -5.401
Status:
Certified (ACCN)
Current Votes:
| User | Vote |
|---|---|
| OrionP | Admin Review |
| Holly-Wood | Certify |
| RainbowDolphin | Certify |
Official parents and subparts
Part Events:
2022-09-29 22:20:03
[PTadmin]
edited the part header.
2022-12-15 16:10:01
Splitted primitives in logo and box.
2024-09-30 16:43:57
2024-09-30 16:52:04
2024-10-01 16:16:20
Unmatched vertices:
2 4 32.533316 -.25 -2.704064 30.410184 -.25 -2.704064
2 4 30.410184 -.25 -2.704064 30.686064 -.25 -3.2626
2 4 32.533316 -.25 -2.704064 30.410184 -.25 -2.704064
2 4 30.410184 -.25 -2.704064 30.686064 -.25 -3.2626
The problem was in the white line inside the michelin logo. From main part, I moved it to subpart.
The subpart is useful to not have gap due to decimals truncation.
The subpart is useful to not have gap due to decimals truncation.
2024-10-01 20:52:20
2024-10-01 21:06:23
Splitted Mobil1 logo in two part fo different color combination.
2024-10-19 13:38:44
2024-10-19 15:02:16
2025-03-21 17:29:31
2025-03-25 19:46:39
2025-07-29 22:27:43
* Too many subs for my taste
2025-08-15 13:45:13
2025-08-16 19:01:18
