Official File parts/6177741a.dat
Part Attributes:
File Header:

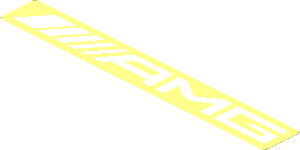

0 Sticker 0.8 x 5.8 with White "AMG" on Transparent Background
0 Name: 6177741a.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2025-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS GT3, Mercedes, Set 75877, Speed Champions
0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05
Show contents
0 BFC NOCLIP
0 // Logo primitive
1 15 0 -.25 0 1.58 0 0 0 1 0 0 0 1.58 logo-amg.dat
0 BFC CLIP
1 16 0 -.25 0 1.58 0 0 0 1 0 0 0 1.58 logo-amg-box.dat
0 // Subpart
1 16 0 -.25 0 1.58 0 0 0 1 0 0 0 1.58 s\973pybs01.dat
0 // Primitives
1 16 -56.5 0 6.5 -1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 56.5 0 6.5 1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 0 -.25 0 0 0 58 0 .25 0 6.5 0 0 box3u12.dat
1 16 -56.5 0 -6.5 -1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 56.5 0 -6.5 1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 -56.5 0 6.5 -1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 56.5 0 6.5 1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 -56.5 0 -6.5 -1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 16 56.5 0 -6.5 1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 16 -56.5 -.25 6.5 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 16 56.5 -.25 6.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 16 -56.5 -.25 -6.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 16 56.5 -.25 -6.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
0 // Bottom face
4 16 56.5 0 8 58 0 6.5 -58 0 6.5 -56.5 0 8
4 16 56.5 0 -8 -56.5 0 -8 -58 0 -6.5 58 0 -6.5
0 // Lateral face
4 16 -56.5 0 8 -56.5 -.25 8 56.5 -.25 8 56.5 0 8
4 16 -56.5 0 -8 56.5 0 -8 56.5 -.25 -8 -56.5 -.25 -8
0 // Top face
0 // Transparent faces
3 16 -56.88 -.25 6.32 -56.5 -.25 8 -58 -.25 6.5
4 16 -56.88 -.25 6.32 56.88 -.25 6.32 56.5 -.25 8 -56.5 -.25 8
3 16 56.88 -.25 6.32 58 -.25 6.5 56.5 -.25 8
4 16 -56.88 -.25 6.32 -58 -.25 6.5 -58 -.25 -6.5 -56.88 -.25 -6.32
4 16 56.88 -.25 6.32 56.88 -.25 -6.32 58 -.25 -6.5 58 -.25 6.5
3 16 -56.88 -.25 -6.32 -58 -.25 -6.5 -56.5 -.25 -8
4 16 -56.88 -.25 -6.32 -56.5 -.25 -8 56.5 -.25 -8 56.88 -.25 -6.32
3 16 56.88 -.25 -6.32 56.5 -.25 -8 58 -.25 -6.5
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2022-11-16 21:05:03
[PTadmin]
edited the part header.
2022-11-23 10:05:02
2022-11-23 10:05:02
corrected spelling, transparent was missing an -n-
basically all Stickers of this sheet miss it... will do an edit everywhere
basically all Stickers of this sheet miss it... will do an edit everywhere
Pattern is missing a BCF noclip.
2022-11-28 21:20:01
You are using both the 973pyb subfile and the logo primitive. One has to go.
2022-11-29 19:30:01
Fixed the subpart of 973pyb
2022-12-30 13:55:01
2024-09-23 21:56:14
Updated use of logo AMG primitive.
only the AMG logo should be BFC NOCLIP, not the outbox prim
(move the BFC CLIP one line higher)
(move the BFC CLIP one line higher)
2025-03-29 16:50:43
2025-03-29 17:06:25
2025-05-16 09:18:42
2025-05-26 16:37:04
2025-05-28 03:31:30
Release 2025-05
