Official File parts/6177741d.dat
Part Attributes:
File Header:

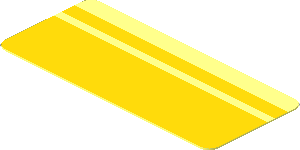

0 Sticker 0.8 x 1.8 with Yellow Stripes on Transparent Background
0 Name: 6177741d.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2025-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS AMG, GT3, Mercedes, Set 75877, Speed Champions
0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05
Show contents
0 // Primitives
1 16 -16.5 0 6.5 -1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 16.5 0 6.5 1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 0 -.25 0 16.5 0 0 0 .25 0 0 0 8 box3u12.dat
1 16 -16.5 0 -6.5 -1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 16.5 0 -6.5 1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 -16.5 0 6.5 -1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 16.5 0 6.5 1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 -16.5 0 -6.5 -1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 16 16.5 0 -6.5 1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 16 -16.5 -.25 6.5 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 16 16.5 -.25 6.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
0 BFC NOCLIP
1 14 -16.5 -.25 -6.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 14 16.5 -.25 -6.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
0 BFC CLIP
0 // Bottom face
4 16 -16.5 0 8 -16.5 0 -8 -18 0 -6.5 -18 0 6.5
4 16 16.5 0 8 18 0 6.5 18 0 -6.5 16.5 0 -8
0 // Lateral face
3 16 -18 0 6.5 -18 -.25 5.2 -18 -.25 6.5
3 16 -18 0 6.5 -18 -.25 3 -18 -.25 5.2
4 16 -18 0 -6.5 -18 -.25 1.8 -18 -.25 3 -18 0 6.5
3 16 -18 0 -6.5 -18 -.25 -6.5 -18 -.25 1.8
3 16 18 0 6.5 18 -.25 6.5 18 -.25 5.2
3 16 18 0 6.5 18 -.25 5.2 18 -.25 3
4 16 18 0 -6.5 18 0 6.5 18 -.25 3 18 -.25 1.8
3 16 18 0 -6.5 18 -.25 1.8 18 -.25 -6.5
0 // Top face
0 // Neutral faces
0 // First stirpe faces
4 16 -18 -.25 6.5 18 -.25 6.5 16.5 -.25 8 -16.5 -.25 8
4 16 -18 -.25 6.5 -18 -.25 5.2 18 -.25 5.2 18 -.25 6.5
0 // Second stripe faces
4 16 -18 -.25 3 -18 -.25 1.8 18 -.25 1.8 18 -.25 3
0 BFC NOCLIP
0 // Yellow faces
0 // First stirpe faces
4 14 -18 -.25 3 18 -.25 3 18 -.25 5.2 -18 -.25 5.2
0 // Second stripe faces
4 14 -18 -.25 -6.5 18 -.25 -6.5 18 -.25 1.8 -18 -.25 1.8
4 14 -18 -.25 -6.5 -16.5 -.25 -8 16.5 -.25 -8 18 -.25 -6.5
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
