Official File parts/6177741s.dat
Part Attributes:
File Header:

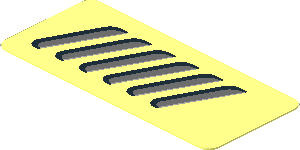

0 Sticker 0.8 x 1.8 with Six Black Air Scope on Transparent Background Right
0 Name: 6177741s.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2025-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Needs work: halftone areas are simplified because no high-resolution images are available
0 BFC CERTIFY CCW
0 !KEYWORDS AMG, GT3, Mercedes, Set 75877, Speed Champions
0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05
Show contents
0 // Subparts
1 16 -12 -.25 0 1 0 0 0 1 0 0 0 1 s\6177741ss01.dat
1 16 -8 -.25 0 1 0 0 0 1 0 0 0 1 s\6177741ss01.dat
1 16 -4 -.25 0 1 0 0 0 1 0 0 0 1 s\6177741ss01.dat
1 16 0 -.25 0 1 0 0 0 1 0 0 0 1 s\6177741ss01.dat
1 16 4 -.25 0 1 0 0 0 1 0 0 0 1 s\6177741ss01.dat
1 16 8 -.25 0 1 0 0 0 1 0 0 0 1 s\6177741ss01.dat
0 // Primitives
1 16 -16.5 0 6.5 -1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 16.5 0 6.5 1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 0 -.25 0 16.5 0 0 0 .25 0 0 0 8 box3u12.dat
1 16 -16.5 0 -6.5 -1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 16.5 0 -6.5 1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 -16.5 0 6.5 -1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 16.5 0 6.5 1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 -16.5 0 -6.5 -1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 16 16.5 0 -6.5 1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 16 -16.5 -.25 6.5 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 16 16.5 -.25 6.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 16 -16.5 -.25 -6.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 16 16.5 -.25 -6.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
0 // Bottom faces
4 16 -16.5 0 8 -16.5 0 -8 -18 0 -6.5 -18 0 6.5
4 16 16.5 0 8 18 0 6.5 18 0 -6.5 16.5 0 -8
0 // Lateral faces
4 16 -18 0 6.5 -18 0 -6.5 -18 -.25 -6.5 -18 -.25 6.5
4 16 18 0 6.5 18 -.25 6.5 18 -.25 -6.5 18 0 -6.5
0 // Top faces
4 16 -16.5 -.25 8 -18 -.25 6.5 -15.451 -.25 -2.85 -11.9933 -.25 5.25
3 16 -16.5 -.25 8 -11.9933 -.25 5.25 -9.9933 -.25 5.25
3 16 -16.5 -.25 8 -9.9933 -.25 5.25 -8.9726 -.25 5.25
3 16 -16.5 -.25 8 -8.9726 -.25 5.25 -8.7726 -.25 5.25
3 16 -16.5 -.25 8 -8.7726 -.25 5.25 -7.9933 -.25 5.25
3 16 -16.5 -.25 8 -7.9933 -.25 5.25 -5.9933 -.25 5.25
3 16 -16.5 -.25 8 -5.9933 -.25 5.25 -4.9726 -.25 5.25
3 16 -16.5 -.25 8 -4.9726 -.25 5.25 -4.7726 -.25 5.25
3 16 -16.5 -.25 8 -4.7726 -.25 5.25 -3.9933 -.25 5.25
3 16 -16.5 -.25 8 -3.9933 -.25 5.25 -1.9933 -.25 5.25
3 16 -16.5 -.25 8 -1.9933 -.25 5.25 -.9726 -.25 5.25
3 16 -16.5 -.25 8 -.9726 -.25 5.25 -.7726 -.25 5.25
4 16 -16.5 -.25 8 -.7726 -.25 5.25 .0067 -.25 5.25 16.5 -.25 8
3 16 16.5 -.25 8 .0067 -.25 5.25 2.0067 -.25 5.25
3 16 16.5 -.25 8 2.0067 -.25 5.25 3.0274 -.25 5.25
3 16 16.5 -.25 8 3.0274 -.25 5.25 3.2274 -.25 5.25
3 16 16.5 -.25 8 3.2274 -.25 5.25 4.0067 -.25 5.25
3 16 16.5 -.25 8 4.0067 -.25 5.25 6.0067 -.25 5.25
3 16 16.5 -.25 8 6.0067 -.25 5.25 7.0274 -.25 5.25
3 16 16.5 -.25 8 7.0274 -.25 5.25 7.2274 -.25 5.25
3 16 16.5 -.25 8 7.2274 -.25 5.25 8.0067 -.25 5.25
3 16 16.5 -.25 8 8.0067 -.25 5.25 10.0067 -.25 5.25
3 16 16.5 -.25 8 10.0067 -.25 5.25 11.0274 -.25 5.25
3 16 16.5 -.25 8 11.0274 -.25 5.25 11.2274 -.25 5.25
3 16 16.5 -.25 8 11.2274 -.25 5.25 12.0067 -.25 5.25
4 16 16.5 -.25 8 12.0067 -.25 5.25 8.549 -.25 -2.85 18 -.25 6.5
4 16 -18 -.25 -6.5 -15.451 -.25 -4.05 -15.451 -.25 -2.85 -18 -.25 6.5
4 16 -18 -.25 -6.5 -16.5 -.25 -8 -15.451 -.25 -5.25 -15.451 -.25 -4.05
4 16 18 -.25 -6.5 18 -.25 6.5 8.549 -.25 -2.85 8.549 -.25 -4.05
4 16 18 -.25 -6.5 8.549 -.25 -4.05 8.549 -.25 -5.25 16.5 -.25 -8
3 16 -16.5 -.25 -8 -14.251 -.25 -5.25 -15.451 -.25 -5.25
3 16 -16.5 -.25 -8 -13.7417 -.25 -5.25 -14.251 -.25 -5.25
3 16 -16.5 -.25 -8 -13.5417 -.25 -5.25 -13.7417 -.25 -5.25
3 16 -16.5 -.25 -8 -11.451 -.25 -5.25 -13.5417 -.25 -5.25
3 16 -16.5 -.25 -8 -10.251 -.25 -5.25 -11.451 -.25 -5.25
3 16 -16.5 -.25 -8 -9.7417 -.25 -5.25 -10.251 -.25 -5.25
3 16 -16.5 -.25 -8 -9.5417 -.25 -5.25 -9.7417 -.25 -5.25
3 16 -16.5 -.25 -8 -7.451 -.25 -5.25 -9.5417 -.25 -5.25
3 16 -16.5 -.25 -8 -6.251 -.25 -5.25 -7.451 -.25 -5.25
3 16 -16.5 -.25 -8 -5.7417 -.25 -5.25 -6.251 -.25 -5.25
3 16 -16.5 -.25 -8 -5.5417 -.25 -5.25 -5.7417 -.25 -5.25
3 16 -16.5 -.25 -8 -3.451 -.25 -5.25 -5.5417 -.25 -5.25
4 16 -16.5 -.25 -8 16.5 -.25 -8 -2.251 -.25 -5.25 -3.451 -.25 -5.25
3 16 16.5 -.25 -8 -1.7417 -.25 -5.25 -2.251 -.25 -5.25
3 16 16.5 -.25 -8 -1.5417 -.25 -5.25 -1.7417 -.25 -5.25
3 16 16.5 -.25 -8 .549 -.25 -5.25 -1.5417 -.25 -5.25
3 16 16.5 -.25 -8 1.749 -.25 -5.25 .549 -.25 -5.25
3 16 16.5 -.25 -8 2.2583 -.25 -5.25 1.749 -.25 -5.25
3 16 16.5 -.25 -8 2.4583 -.25 -5.25 2.2583 -.25 -5.25
3 16 16.5 -.25 -8 4.549 -.25 -5.25 2.4583 -.25 -5.25
3 16 16.5 -.25 -8 5.749 -.25 -5.25 4.549 -.25 -5.25
3 16 16.5 -.25 -8 6.2583 -.25 -5.25 5.749 -.25 -5.25
3 16 16.5 -.25 -8 6.4583 -.25 -5.25 6.2583 -.25 -5.25
3 16 16.5 -.25 -8 8.549 -.25 -5.25 6.4583 -.25 -5.25
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2022-11-16 21:15:04
[PTadmin]
edited the part header.
2022-11-23 10:15:01
2025-05-19 08:46:06
2025-05-20 10:08:26
could use a center vertex along the sides for a better triangulation
2025-05-23 14:42:12
2025-05-27 15:08:01
2025-05-28 03:31:30
Release 2025-05
