Official File parts/6190a.dat
Part Attributes:
File Header:

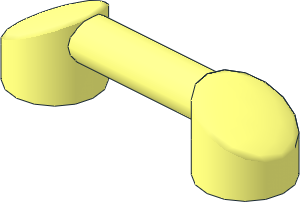

0 Bar 1 x 3 with Stud Connectors
0 Name: 6190a.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Part UPDATE 2023-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Belville, BrickLink 6190, Divers, handle, handset, Rebrickable 6190
0 !KEYWORDS receiver, Scala, Star Wars, telephone, town, Train
0 !HISTORY 2023-12-31 [OrionP] Official Update 2023-07
Show contents
1 16 -20 0 0 1 0 0 0 -1.5 0 0 0 -1 stud4a.dat
1 16 20 0 0 1 0 0 0 -1.5 0 0 0 -1 stud4a.dat
1 16 12 -4 0 0 -1 0 0 0 1 -1 0 0 cylj4x8.dat
1 16 -12 -4 0 0 1 0 0 0 1 -1 0 0 cylj4x8.dat
1 16 12 -4 0 0 -24 0 -4 0 0 0 0 -4 4-4cyli.dat
1 16 -20 0 0 -8 0 0 0 -4 0 0 0 8 2-4cyls.dat
1 16 -20 0 0 -8 0 0 0 -4 0 0 0 -8 2-4cyls.dat
1 16 20 0 0 8 0 0 0 -4 0 0 0 -8 2-4cyls.dat
1 16 20 0 0 8 0 0 0 -4 0 0 0 8 2-4cyls.dat
1 16 20 -4 0 8 0.559017 0 4 -1.11803 0 0 0 8 4-8sphe.dat
1 16 -20 -4 0 -8 -0.559017 0 4 -1.11803 0 0 0 -8 4-8sphe.dat
1 16 -20 0 0 -6 0 0 0 -1 0 0 0 6 4-4disc.dat
1 16 20 0 0 -6 0 0 0 -1 0 0 0 6 4-4disc.dat
1 16 -20 0 0 -6 0 0 0 -1 0 0 0 6 4-4edge.dat
1 16 20 0 0 -6 0 0 0 -1 0 0 0 6 4-4edge.dat
5 24 -28 0 0 -27.3912 -.3044 -3.0616 -27.6051358059 -.732270081 0 -27.3912 0 -3.0616
5 24 -25.6568 -1.1716 -5.6568 -27.3912 -.3044 -3.0616 -26.5143761681 -1.356750579 -3.5144 -25.6568 0 -5.6568
5 24 -25.6568 -1.1716 -5.6568 -23.0616 -2.4692 -7.3912 -23.7599761681 -2.733950579 -6.2688 -23.0616 0 -7.3912
5 24 -23.0616 -2.4692 -7.3912 -20 -4 -8 -20.2139358059 -4.427870081 -7.3912 -20 0 -8
5 24 -16.9384 -5.5308 -7.3912 -20 -4 -8 -20.2139358059 -4.427870081 -7.3912 -16.9384 0 -7.3912
5 24 -14.3432 -6.8284 -5.6568 -16.9384 -5.5308 -7.3912 -16.7311761681 -6.248350579 -6.2688 -14.3432 0 -5.6568
5 24 -12.6088 -7.6956 -3.0616 -14.3432 -6.8284 -5.6568 -13.9767761681 -7.625550579 -3.5144 -12.6088 0 -3.0616
5 24 -12 -8 0 -12.6088 -7.6956 -3.0616 -12.8227358059 -8.123470081 0 -12 0 0
5 24 -27.3912 -.3044 3.0616 -28 0 0 -27.6051358059 -.732270081 0 -27.3912 0 3.0616
5 24 -27.3912 -.3044 3.0616 -25.6568 -1.1716 5.6568 -26.5143761681 -1.356750579 3.5144 -25.6568 0 5.6568
5 24 -23.0616 -2.4692 7.3912 -25.6568 -1.1716 5.6568 -23.7599761681 -2.733950579 6.2688 -23.0616 0 7.3912
5 24 -20 -4 8 -23.0616 -2.4692 7.3912 -20.2139358059 -4.427870081 7.3912 -20 0 8
5 24 -20 -4 8 -16.9384 -5.5308 7.3912 -20.2139358059 -4.427870081 7.3912 -16.9384 0 7.3912
5 24 -16.9384 -5.5308 7.3912 -14.3432 -6.8284 5.6568 -16.7311761681 -6.248350579 6.2688 -14.3432 0 5.6568
5 24 -14.3432 -6.8284 5.6568 -12.6088 -7.6956 3.0616 -13.9767761681 -7.625550579 3.5144 -12.6088 0 3.0616
5 24 -12.6088 -7.6956 3.0616 -12 -8 0 -12.8227358059 -8.123470081 0 -12 0 0
5 24 27.3912 -.3044 -3.0616 28 0 0 27.6051358059 -.732270081 0 27.3912 0 -3.0616
5 24 27.3912 -.3044 -3.0616 25.6568 -1.1716 -5.6568 26.5143761681 -1.356750579 -3.5144 25.6568 0 -5.6568
5 24 23.0616 -2.4692 -7.3912 25.6568 -1.1716 -5.6568 23.7599761681 -2.733950579 -6.2688 23.0616 0 -7.3912
5 24 20 -4 -8 23.0616 -2.4692 -7.3912 20.2139358059 -4.427870081 -7.3912 20 0 -8
5 24 20 -4 -8 16.9384 -5.5308 -7.3912 20.2139358059 -4.427870081 -7.3912 16.9384 0 -7.3912
5 24 16.9384 -5.5308 -7.3912 14.3432 -6.8284 -5.6568 16.7311761681 -6.248350579 -6.2688 14.3432 0 -5.6568
5 24 14.3432 -6.8284 -5.6568 12.6088 -7.6956 -3.0616 13.9767761681 -7.625550579 -3.5144 12.6088 0 -3.0616
5 24 12.6088 -7.6956 -3.0616 12 -8 0 12.8227358059 -8.123470081 0 12 0 0
5 24 28 0 0 27.3912 -.3044 3.0616 27.6051358059 -.732270081 0 27.3912 0 3.0616
5 24 25.6568 -1.1716 5.6568 27.3912 -.3044 3.0616 26.5143761681 -1.356750579 3.5144 25.6568 0 5.6568
5 24 25.6568 -1.1716 5.6568 23.0616 -2.4692 7.3912 23.7599761681 -2.733950579 6.2688 23.0616 0 7.3912
5 24 23.0616 -2.4692 7.3912 20 -4 8 20.2139358059 -4.427870081 7.3912 20 0 8
5 24 16.9384 -5.5308 7.3912 20 -4 8 20.2139358059 -4.427870081 7.3912 16.9384 0 7.3912
5 24 14.3432 -6.8284 5.6568 16.9384 -5.5308 7.3912 16.7311761681 -6.248350579 6.2688 14.3432 0 5.6568
5 24 12.6088 -7.6956 3.0616 14.3432 -6.8284 5.6568 13.9767761681 -7.625550579 3.5144 12.6088 0 3.0616
5 24 12 -8 0 12.6088 -7.6956 3.0616 12.8227358059 -8.123470081 0 12 0 0
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2022-11-15 00:10:01
The official:
https://www.ldraw.org/parts/official-part-lookup.html?folder=parts&;partid=6190
is not on the PT to be obsolated
https://www.ldraw.org/parts/official-part-lookup.html?folder=parts&;partid=6190
is not on the PT to be obsolated
Sent obsoleted part to Admin
As the old version is on PT as obsoleted, there is no blocker for this file.
2023-07-02 17:16:55
The original part was the second or third part I authored and measurements were by eyeball and ruler. It doesn't surprise me that it's 2 ldu off.
Missing a set of complementary condlines where the flat sphere meets the sloped cylinder.
Added the missing conds.
Maybe the origin should be in the centre of the handle cylinder?
2023-11-20 15:48:40
The old part 6190 has gone obsolete without the replacement.
This file should be released ASAP.
This file should be released ASAP.
2023-11-20 16:00:17
2023-12-31 17:54:23
Release 2023-07
Creative Commons Attribution License information
This part is copyright © Max Martin Richter
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
3D View
