Official File parts/62114.dat
Part Attributes:

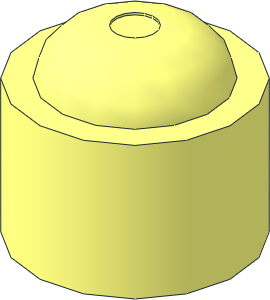

~Constraction Ball Cannon Piston
File Header:
0 ~Constraction Ball Cannon Piston 0 Name: 62114.dat 0 Author: Santeri Piippo [arezey] 0 !LDRAW_ORG Part UPDATE 2024-06 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives 0 !HISTORY 2024-04-30 [RainbowDolphin] Using mirrored s01's instead of 45-deg rotated ones 0 !HISTORY 2024-06-21 [GeraldLasser] Simplified and corrected geometry 0 !HISTORY 2024-07-29 [OrionP] Official Update 2024-06
Show contents
1 16 0 -33 0 25 0 0 0 33 0 0 0 25 4-4cylo.dat 1 16 0 0 0 1 0 0 0 -1 0 0 0 1 4-4ring24.dat 1 16 0 0 0 24 0 0 0 1 0 0 0 24 4-4edge.dat 0 BFC INVERTNEXT 1 16 0 0 0 2 0 0 0 -5 0 0 0 2 4-4con11.dat 1 16 0 -33 0 1 0 0 0 1 0 0 0 1 4-4ring19.dat 1 16 0 -33 0 5 0 0 0 1 0 0 0 5 4-4ring4.dat 1 16 0 -33 0 19 0 0 0 1 0 0 0 19 4-4edge.dat 1 16 0 -33 0 4.75 0 0 0 -3.8 0 0 0 4.75 r04o3000.dat 1 16 0 -33 0 4.75 0 0 0 -3.8 0 0 0 -4.75 r04o3000.dat 1 16 0 -33 0 -4.75 0 0 0 -3.8 0 0 0 4.75 r04o3000.dat 1 16 0 -33 0 -4.75 0 0 0 -3.8 0 0 0 -4.75 r04o3000.dat 0 BFC INVERTNEXT 1 16 0 -44.4 0 4.75 0 0 0 .5 0 0 0 4.75 4-4cyli.dat 1 16 0 -44.4 0 4.75 0 0 0 1 0 0 0 4.75 4-4edge.dat 0 BFC INVERTNEXT 1 16 0 -43.9 0 4.75 0 0 0 -1 0 0 0 4.75 bump5000.dat 0 // Inside 0 BFC INVERTNEXT 1 16 0 -5 0 22 0 0 0 -24 0 0 0 22 4-4cylo.dat 1 16 0 -29 0 -2 0 0 0 -1 0 0 0 -2 4-4ring10.dat 1 16 0 -29 0 -2 0 0 0 -1 0 0 0 -2 4-4ring9.dat 1 16 0 -29 0 18 0 0 0 1 0 0 0 18 4-4edge.dat 0 BFC INVERTNEXT 1 16 0 -29 0 -6 0 0 0 -8 0 0 0 -6 4-4con2.dat 0 BFC INVERTNEXT 1 16 0 -37 0 -4 0 0 0 -3 0 0 0 -4 4-4con2.dat 1 16 0 -40 0 -8 0 0 0 1 0 0 0 -8 4-4edge.dat 1 16 0 -40 0 0 0 8 0 -1 0 8 0 0 4-4disc.dat 0 // Ribs 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\62114s01.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\62114s01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\62114s01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\62114s01.dat 4 16 16 -8.25 -1.5 16 -29 -1.5 16 -29 1.5 16 -8.25 1.5 4 16 13 -36 1.5 13 -30 1.5 13 -30 -1.5 13 -36 -1.5 4 16 13 -30 -1.5 13 -30 1.5 16 -29 1.5 16 -29 -1.5 4 16 24 -.5 1.5 24 -.5 -1.5 16 -8.25 -1.5 16 -8.25 1.5 2 24 16 -8.25 1.5 16 -8.25 -1.5 2 24 13 -30 -1.5 13 -30 1.5 2 24 16 -29 1.5 16 -29 -1.5 4 16 -16 -29 1.5 -16 -29 -1.5 -16 -8.25 -1.5 -16 -8.25 1.5 4 16 -13 -30 -1.5 -13 -30 1.5 -13 -36 1.5 -13 -36 -1.5 4 16 -16 -29 1.5 -13 -30 1.5 -13 -30 -1.5 -16 -29 -1.5 4 16 -16 -8.25 -1.5 -24 -.5 -1.5 -24 -.5 1.5 -16 -8.25 1.5 2 24 -16 -8.25 -1.5 -16 -8.25 1.5 2 24 -13 -30 1.5 -13 -30 -1.5 2 24 -16 -29 -1.5 -16 -29 1.5
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Santeri Piippo [arezey]
Part Reviewer
initially submitted the part.
2018-01-03 16:55:00
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2018-01-28 15:00:00
Lots of duplicated, and unnecessary, cond-lines. Probably from the inlined sphe-prims.
Some of the internal cond-lines should IMO be edge-lines.
Santeri Piippo [arezey]
Part Reviewer
made the following comment.
2018-01-29 10:35:00
Hmm, Datheader isn't noticing anything. Perhaps the duplicates differ very slightly.

As for the condlines, the outer edge of the underside is pretty smooth and thin. I could make some lines proper edges though.
Santeri Piippo [arezey]
Part Reviewer
made the following comment.
2018-01-29 11:00:00
The coordinates are the same, but the control points are swapped. So Datheader doesn't notice these.
Santeri Piippo [arezey]
Part Reviewer
submitted a new version of the part.
2018-01-29 11:25:01
Regenerated edges and reworked rib intersection with inner rim.

Existing certification-votes were deleted.
Santeri Piippo [arezey]
Part Reviewer
posted a vote of Hold.
2018-01-29 13:50:00
More rework incoming.
Santeri Piippo [arezey]
Part Reviewer
submitted a new version of the part.
2018-01-29 14:20:00
Rebuilt top, moved most geometry into subfile.

Existing certification-votes were deleted.
Philippe Hurbain [Philo]
Senior Part Reviewer
made the following comment.
2018-01-29 14:20:00
You could perhaps use a bump5000 prim (or maybe a flattened half sphere!) instead of a truncated sphere. If you keep the truncated sphere, you should tweak the mesh to remove the tiny tiangles at the base.
Santeri Piippo [arezey]
Part Reviewer
made the following comment.
2018-01-29 14:25:00
I understood that bump5000.dat is a special primitive that should not be scaled. I rebuilt the top by tracing a curve over the existing half-sphere and revolving it.
Santeri Piippo [arezey]
Part Reviewer
submitted a new version of the part.
2018-04-27 07:25:01
Recategorized into Constraction

Existing certification-votes were deleted.
Max Martin Richter [MMR1988]
Senior Part Reviewer
made the following comment.
2023-05-29 11:26:12
Instead of rotating 4 of the subparts 45 degrees the should be mirrored to avoid rounding errors.
Maybe the conds in the subfile needs to be adjusted for this.
Orion Pobursky [OrionP]
Part Library Admin
submitted a new version of the part.
2024-03-23 00:59:39
Update ring primitives via script. This will not reset the vote status of the part.
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
submitted a new version of the part.
2024-04-30 13:26:28
Using mirrored s01's instead of 45-deg rotated ones
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Hold.
2024-05-22 11:40:52
* Theses:

5 24 -17.5541 -29 -7.2713 -19 -29 0 -20 -29 0 -18 -30 0
5 24 -13.4349 -29 -13.4349 -17.5541 -29 -7.2713 -18.478 -29 -7.654 -16.6302 -30 -6.8886
5 24 -7.2713 -29 -17.5541 -13.4349 -29 -13.4349 -14.142 -29 -14.142 -12.7278 -30 -12.7278
5 24 0 -29 -19 -7.2713 -29 -17.5541 -7.654 -29 -18.478 -6.8886 -30 -16.6302
5 24 7.2713 -29 -17.5541 0 -29 -19 0 -29 -20 0 -30 -18
5 24 13.4349 -29 -13.4349 7.2713 -29 -17.5541 7.654 -29 -18.478 6.8886 -30 -16.6302
5 24 17.5541 -29 -7.2713 13.4349 -29 -13.4349 14.142 -29 -14.142 12.7278 -30 -12.7278
5 24 19 -29 0 17.5541 -29 -7.2713 18.478 -29 -7.654 16.6302 -30 -6.8886
5 24 17.5541 -29 7.2713 19 -29 0 20 -29 0 18 -30 0
5 24 13.4349 -29 13.4349 17.5541 -29 7.2713 18.478 -29 7.654 16.6302 -30 6.8886
5 24 7.2713 -29 17.5541 13.4349 -29 13.4349 14.142 -29 14.142 12.7278 -30 12.7278
5 24 0 -29 19 7.2713 -29 17.5541 7.654 -29 18.478 6.8886 -30 16.6302
5 24 -7.2713 -29 17.5541 0 -29 19 0 -29 20 0 -30 18
5 24 -13.4349 -29 13.4349 -7.2713 -29 17.5541 -7.654 -29 18.478 -6.8886 -30 16.6302
5 24 -17.5541 -29 7.2713 -13.4349 -29 13.4349 -14.142 -29 14.142 -12.7278 -30 12.7278
5 24 -19 -29 0 -17.5541 -29 7.2713 -18.478 -29 7.654 -16.6302 -30 6.8886

should actually be edges:

1 16 0 -29 0 19 0 0 0 1 0 0 0 19 4-4edge.dat

* Missing conds:

5 24 12.1873 -36.1783 12.1873 10.9369 -38.7596 10.9369 5.9191 -38.7596 14.2899 14.2899 -38.7596 5.9191
5 24 -14.8497 -5 14.8495 -16.9711 0 16.9709 -21.3235 0 10.4561 -10.4561 0 21.3235
5 24 9.5782 -40.8136 9.5782 8.0052 -42.4101 8.0052 4.3324 -42.4101 10.4593 10.4593 -42.4101 4.3324
5 24 -10.9369 -38.7596 -10.9369 -9.5782 -40.8136 -9.5782 -12.5145 -40.8136 -5.1837 -5.1837 -40.8136 -12.5145
5 24 -6.1123 -43.6186 -6.1123 -3.79364 -44.509 -3.79364 -4.9566 -44.509 -2.0531 -2.0531 -44.509 -4.9566
5 24 6.1123 -43.6186 6.1123 3.7936 -44.509 3.7936 4.9566 -44.509 2.0531 2.0531 -44.509 4.9566
5 24 10.9369 -38.7596 -10.9369 9.5782 -40.8136 -9.5782 5.1837 -40.8136 -12.5145 12.5145 -40.8136 -5.1837
5 24 -6.1123 -43.6186 6.1123 -3.79364 -44.509 3.79364 -2.0531 -44.509 4.9566 -4.9566 -44.509 2.0531
5 24 8.0052 -42.4101 8.0052 6.1123 -43.6186 6.1123 7.9861 -43.6186 3.308 3.308 -43.6186 7.9861
5 24 -9.5782 -40.8136 -9.5782 -8.0052 -42.4101 -8.0052 -10.4593 -42.4101 -4.3324 -4.3324 -42.4101 -10.4593
5 24 6.1123 -43.6186 -6.1123 3.7936 -44.509 -3.7936 2.0531 -44.509 -4.9566 4.9566 -44.509 -2.0531
5 24 -10.9369 -38.7596 10.9369 -9.5782 -40.8136 9.5782 -12.5145 -40.8136 5.1837 -5.1837 -40.8136 12.5145
5 24 -9.5782 -40.8136 9.5782 -8.0052 -42.4101 8.0052 -10.4593 -42.4101 4.3324 -4.3324 -42.4101 10.4593
5 24 10.9369 -38.7596 10.9369 9.5782 -40.8136 9.5782 5.1837 -40.8136 12.5145 12.5145 -40.8136 5.1837
5 24 8.0052 -42.4101 -8.0052 6.1123 -43.6186 -6.1123 3.308 -43.6186 -7.9861 7.9861 -43.6186 -3.308
5 24 -14.8497 -5 -14.8495 -16.9711 0 -16.9709 -10.4561 0 -21.3235 -21.3235 0 -10.4561
5 24 9.5782 -40.8136 -9.5782 8.0052 -42.4101 -8.0052 4.3324 -42.4101 -10.4593 10.4593 -42.4101 -4.3324
5 24 -12.1873 -36.1783 12.1873 -10.9369 -38.7596 10.9369 -14.2899 -38.7596 5.9191 -5.9191 -38.7596 14.2899
5 24 -8.0052 -42.4101 -8.0052 -6.1123 -43.6186 -6.1123 -7.9861 -43.6186 -3.308 -3.308 -43.6186 -7.9861
5 24 14.8491 -5 -14.8491 16.9709 0 -16.9711 21.3235 0 -10.4561 10.4561 0 -21.3235
5 24 -13.435 -33 13.435 -12.1873 -36.1783 12.1873 -15.9235 -36.1783 6.5957 -6.5957 -36.1783 15.9235
5 24 -12.1873 -36.1783 -12.1873 -10.9369 -38.7596 -10.9369 -14.2899 -38.7596 -5.9191 -5.9191 -38.7596 -14.2899
5 24 13.4349 -33 13.4349 12.1873 -36.1783 12.1873 6.5957 -36.1783 15.9235 15.9235 -36.1783 6.5957
5 24 13.4349 -33 -13.4349 12.1873 -36.1783 -12.1873 6.5957 -36.1783 -15.9235 15.9235 -36.1783 -6.5957
5 24 14.8491 -5 14.8491 16.9709 0 16.9711 10.4561 0 21.3235 21.3235 0 10.4561
5 24 12.1873 -36.1783 -12.1873 10.9369 -38.7596 -10.9369 5.9191 -38.7596 -14.2899 14.2899 -38.7596 -5.9191
5 24 -13.435 -33 -13.435 -12.1873 -36.1783 -12.1873 -15.9235 -36.1783 -6.5957 -6.5957 -36.1783 -15.9235
5 24 -8.0052 -42.4101 8.0052 -6.1123 -43.6186 6.1123 -3.308 -43.6186 7.9861 -7.9861 -43.6186 3.308
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2024-06-12 09:53:44
I just took mine apart, and there are only six ridges in the part not 8, doesn'T really matter as it is invisible when it is assemlbed, but anyway
Orion Pobursky [OrionP]
Part Library Admin
made the following comment.
2024-06-14 21:03:38
Can we get this fixed? I'm tired of having the cannon be the top of my ready for review list.
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part.
2024-06-21 10:39:10
Simplified and corrected to 6 ribs.

Intersects still with the relaxed position of the spring (although less)
Willy Tschager [Holly-Wood]
Senior Part Reviewer
made the following comment.
2024-06-21 20:58:28
* line 29 : The flat subfile is scaled in Y direction.
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part.
2024-06-29 18:13:00
flattened
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify.
2024-07-13 08:34:03
Rene Rechthaler [Blechtaler]
Part Header Editor
posted a vote of Certify.
2024-07-13 10:20:32
History says "Soimplified" (can that be corrected via Headeredit?)
Jeff Jones [notmaster]
Part Author
made the following comment.
2024-07-13 10:52:16
fixed the history's spelling in both this and 62114s01 can i post it
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2024-07-13 11:25:54
no, posting resets votes
Jeff Jones [notmaster]
Part Author
made the following comment.
2024-07-13 11:45:20
olooks like a admin has to do it instand of me
Gerald Lasser [GeraldLasser]
Part Library Admin
edited the part header.
2024-07-13 14:21:24
Header Edits

history:
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-04-30 [RainbowDolphin] Using mirrored s01's instead of 45-deg rotated ones
0 !HISTORY 2024-06-21 [GeraldLasser] Soimplified and corrected geometry
to
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-04-30 [RainbowDolphin] Using mirrored s01's instead of 45-deg rotated ones
0 !HISTORY 2024-06-21 [GeraldLasser] Simplified and corrected geometry

Comment:
spelling
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2024-07-13 14:22:03
@jeff, don' resubmit for spelling errors etc. just post a comment, through admin edit the votes are retained
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2024-07-16 20:28:08
Orion Pobursky [OrionP]
Part Library Admin
2024-07-29 02:26:27
Release 2024-06
