Unofficial File parts/6234010h.dat
Part Attributes:
File Header:

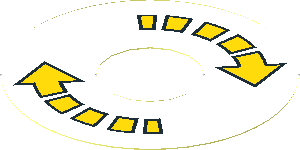

0 Sticker 2.7 x 2.7 with Hole with 2 Yellow Segmented Arrows
0 Name: 6234010h.dat
0 Author: Evert-Jan Boer [ejboer]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 10261stk01, Rebrickable 39356, Roller Coaster, set 10261
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2025-06-26 [Blechtaler] subfiled, used prims
Show contents
1 16 0 0 0 27.5 0 0 0 -0.25 0 0 0 27.5 48\4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 0 0 10 0 0 0 -0.25 0 0 0 10 4-4cyli.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6234010hs01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\6234010hs01.dat
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2022-09-17 19:30:01
2024-01-13 20:35:10
Update ring primitives via script. This will not reset the vote status of the part.
2024-09-22 23:25:00
Agree with Max, please add an ering to the top.
Else this should be fine.
Else this should be fine.
center should be standard res...
like here: https://library.ldraw.org/parts/24970
should then also use ndis/tndis/tang at the inside, outside could use 1-8chrd
pattern could get cut in half and subfiled...
to reduce triangles, maybe use standard res prims at the bottom and a aring at the outside
like here: https://library.ldraw.org/parts/24970
should then also use ndis/tndis/tang at the inside, outside could use 1-8chrd
pattern could get cut in half and subfiled...
to reduce triangles, maybe use standard res prims at the bottom and a aring at the outside
Centre Hole as normal resolutioan as Rene wrote:
0 BFC INVERTNEXT
1 1 0 0 0 10 0 0 0 -0.25 0 0 0 10 4-4cyli.dat
Instead of the hi-res ring prims use this at the back (and fill with quads/triangles:
1 1 0 0 0 10 0 0 0 -0.25 0 0 0 10 4-4ndis.dat
1 1 0 0 0 27.5 0 0 0 -1 0 0 0 27.5 48\1-4chrd.dat
1 1 0 0 0 27.5 0 0 0 -1 0 0 0 -27.5 48\1-4chrd.dat
1 1 0 0 0 -27.5 0 0 0 -1 0 0 0 27.5 48\1-4chrd.dat
1 1 0 0 0 -27.5 0 0 0 -1 0 0 0 -27.5 48\1-4chrd.dat
at the top, sue this as padding
1 1 0 -.25 0 27.5 0 0 0 -1 0 0 0 27.5 48\1-8chrd.dat
1 1 0 -.25 0 0 0 27.5 0 -1 0 27.5 0 0 48\1-8chrd.dat
1 1 0 -.25 0 10 0 0 0 -0.25 0 0 0 10 4-4ndis.dat
this will make prim subst smooth
The large diameter should remain a 48 prim, it is large enough
0 BFC INVERTNEXT
1 1 0 0 0 10 0 0 0 -0.25 0 0 0 10 4-4cyli.dat
Instead of the hi-res ring prims use this at the back (and fill with quads/triangles:
1 1 0 0 0 10 0 0 0 -0.25 0 0 0 10 4-4ndis.dat
1 1 0 0 0 27.5 0 0 0 -1 0 0 0 27.5 48\1-4chrd.dat
1 1 0 0 0 27.5 0 0 0 -1 0 0 0 -27.5 48\1-4chrd.dat
1 1 0 0 0 -27.5 0 0 0 -1 0 0 0 27.5 48\1-4chrd.dat
1 1 0 0 0 -27.5 0 0 0 -1 0 0 0 -27.5 48\1-4chrd.dat
at the top, sue this as padding
1 1 0 -.25 0 27.5 0 0 0 -1 0 0 0 27.5 48\1-8chrd.dat
1 1 0 -.25 0 0 0 27.5 0 -1 0 27.5 0 0 48\1-8chrd.dat
1 1 0 -.25 0 10 0 0 0 -0.25 0 0 0 10 4-4ndis.dat
this will make prim subst smooth
The large diameter should remain a 48 prim, it is large enough
subfiled, used prims
2025-09-23 21:21:00
stickerback as separate file? or keep it in the half subfile?
Creative Commons Attribution License information
This part is copyright © Evert-Jan Boer
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
Rene Rechthaler,
Nonetheless I would like to see an ering for the outside.
