File Detail parts/62359.dat

Official File parts/62359.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

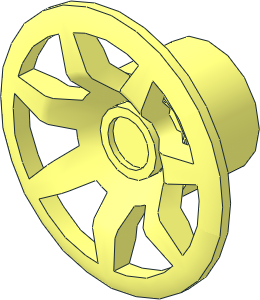

0 Wheel Cover  7 Spoke for Wheel 14 x 18
0 Name: 62359.dat
0 Author: Ulrich Röder [UR]
0 !LDRAW_ORG Part UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP For Wheel 55982

0 BFC CERTIFY CCW

0 !HISTORY 2014-10-16 {LEGO Digital Designer} Original part shape
0 !HISTORY 2014-10-16 [UR] File preparation for LDraw Parts Tracker
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02

Show contents

0 // Main
1 16 0 0 0 1 0 0 0 0 1 0 -10 0 axlehole.dat
1 16 0 0 0 1 0 0 0 0 1 0 -1 0 axlehol2.dat
1 16 0 0 -10 1 0 0 0 0 1 0 -1 0 axlehol2.dat
1 16 0 0 0 10 0 0 0 0 10 0 -1 0 4-4edge.dat
1 16 0 0 -13.75 10 0 0 0 0 10 0 -1 0 4-4edge.dat
1 16 0 0 -13.75 10 0 0 0 0 10 0 1 0 4-4disc.dat
1 16 0 0 -10 6 0 0 0 0 6 0 -1 0 4-4disc.dat
1 16 0 0 0 10 0 0 0 0 10 0 -13.75 0 4-4cyli.dat
1 16 0 0 0 2 0 0 0 0 2 0 -1 0 4-4ring3.dat
1 16 0 0 0 2 0 0 0 0 2 0 -1 0 4-4ring4.dat
0 // Hub
1 16 0 0 -15.75 1 0 0 0 0 1 0 1 0 4-4ring4.dat
1 16 0 0 -15.75 .5 0 0 0 0 .5 0 1 0 4-4ring10.dat
1 16 0 0 -14.75 4 0 0 0 0 4 0 1 0 4-4disc.dat
0 BFC INVERTNEXT
1 16 0 0 -14.75 4 0 0 0 0 4 0 -1 0 4-4cylo.dat
1 16 0 0 -13.75 5.5 0 0 0 0 5.5 0 -2 0 4-4cylo.dat
0 // Spokes
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\62359s01.dat
1 16 0 0 0 -.62349 -.781831 0 -.781831 .62349 0 0 0 1 s\62359s01.dat
1 16 0 0 0 .222521 -.974928 0 -.974928 -.222521 0 0 0 1 s\62359s01.dat
1 16 0 0 0 .900969 -.433884 0 -.433884 -.900969 0 0 0 1 s\62359s01.dat
1 16 0 0 0 .900969 .433884 0 .433884 -.900969 0 0 0 1 s\62359s01.dat
1 16 0 0 0 .222521 .974928 0 .974928 -.222521 0 0 0 1 s\62359s01.dat
1 16 0 0 0 -.62349 .781831 0 .781831 .62349 0 0 0 1 s\62359s01.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Ulrich Röder [UR]

initially submitted the part.

2019-03-01 10:15:01

Ulrich Röder [UR]

submitted a new version of the part.

2019-03-01 10:30:01

corrected position axlehole2

Philippe Hurbain [Philo]

posted a vote of Hold.

2019-03-01 12:25:02

Here's one mercyless reviewer ;)
- Missing condlines between the spoke subparts
- Missing edge lines where the spoke subparts meet the axlehole hub.
I like the way you increased resolution of outer rim!

Philippe Hurbain [Philo]

posted a vote of Hold.

2019-03-01 12:30:01

Wondering also for condlines at the base of the spokes. Facets angle make me think that an edge line would be better there...

Ulrich Röder [UR]

submitted a new version of the part.

2019-03-01 15:00:02

Thank you Phillip..
.found also an bfc error....and changed the Subpart into 2 Halfs.
I guess that is better...leads to zero tjunctions

Existing certification-votes were deleted.

Philippe Hurbain [Philo]

made the following comment.

2019-03-03 16:50:01

"..and changed the Subpart into 2 Halfs. I guess that is better"
I don't see the benefit of this ??? This parts yields cleanly to a 7x symmetry.

Ulrich Röder [UR]

made the following comment.

2019-03-07 12:05:01

these tiny overlapping vertexes where the single Spokes meet disturbing me...Phillip

this way they are history

Philippe Hurbain [Philo]

made the following comment.

2019-03-07 14:05:01

Yes, but I really prefer to maximize reuse of subparts. Can be important to minimize rendering time.
