Official File parts/6237277e.dat
Part Attributes:
File Header:

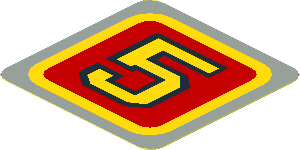

0 Sticker 1.8 x 1.8 with Yellow "5" on Red Panel on Yellow Background
0 Name: 6237277e.dat
0 Author: Alex Herrera [alanbrito98]
0 !LDRAW_ORG Part UPDATE 2023-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS set 21311, Voltron
0 !HISTORY 2021-11-02 [Holly-Wood] Fixed comment and vertex
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
Show contents
0 // Box
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6237277as01.dat
0 // Primitives
1 7 -15 -0.25 15 -3 0 0 0 1 0 0 0 3 1-4chrd.dat
1 7 15 -0.25 15 3 0 0 0 1 0 0 0 3 1-4chrd.dat
1 7 -15 -0.25 -15 -3 0 0 0 1 0 0 0 -3 1-4chrd.dat
1 7 15 -0.25 -15 3 0 0 0 1 0 0 0 -3 1-4chrd.dat
0 // Pattern
0 // Primitives
1 4 10.5 -0.25 -10.5 2.5 0 0 0 1 0 0 0 -2.5 1-4chrd.dat
1 4 10.5 -0.25 10.5 2.5 0 0 0 1 0 0 0 2.5 1-4chrd.dat
1 4 -10.5 -0.25 10.5 -2.5 0 0 0 1 0 0 0 2.5 1-4chrd.dat
1 4 -10.5 -0.25 -10.5 -2.5 0 0 0 1 0 0 0 -2.5 1-4chrd.dat
1 14 -10.5 -0.25 -10.5 -2.5 0 0 0 1 0 0 0 -2.5 1-4ring1.dat
1 14 10.5 -0.25 -10.5 2.5 0 0 0 1 0 0 0 -2.5 1-4ring1.dat
1 14 10.5 -0.25 10.5 2.5 0 0 0 1 0 0 0 2.5 1-4ring1.dat
1 14 -10.5 -0.25 10.5 -2.5 0 0 0 1 0 0 0 2.5 1-4ring1.dat
1 7 10.5 -0.25 10.5 5 0 0 0 1 0 0 0 5 1-4ndis.dat
1 7 10.5 -0.25 -10.5 5 0 0 0 1 0 0 0 -5 1-4ndis.dat
1 7 -10.5 -0.25 -10.5 -5 0 0 0 1 0 0 0 -5 1-4ndis.dat
1 7 -10.5 -0.25 10.5 -5 0 0 0 1 0 0 0 5 1-4ndis.dat
0 // Pattern
0 // Black
4 0 -3.98 -0.25 2.89 3.9 -0.25 2.89 4.53 -0.25 4.09 -2.54 -0.25 4.09
4 0 -3.98 -0.25 6.93 -3.98 -0.25 2.89 -2.54 -0.25 4.09 -2.54 -0.25 5.91
4 0 6.56 -0.25 6.93 -3.98 -0.25 6.93 -2.54 -0.25 5.91 7.63 -0.25 5.91
4 0 3.9 -0.25 2.89 6.49 -0.25 0.49 7.79 -0.25 1.51 4.53 -0.25 4.09
4 0 3.9 -0.25 -8.99 -4.68 -0.25 -8.99 -5.3 -0.25 -10.3 4.44 -0.25 -10.29
4 0 6.48 -0.25 -7.34 3.9 -0.25 -8.99 4.44 -0.25 -10.29 7.79 -0.25 -7.82
4 0 6.49 -0.25 0.49 6.48 -0.25 -7.34 7.79 -0.25 -7.82 7.79 -0.25 1.51
4 0 -3.98 -0.25 0.5 -3.98 -0.25 -0.4 -2.52 -0.25 -1.61 -2.52 -0.25 -0.6
4 0 3.19 -0.25 0.49 -3.98 -0.25 0.5 -2.52 -0.25 -0.6 1.99 -0.25 -0.6
4 0 3.19 -0.25 0.49 1.99 -0.25 -0.6 1.99 -0.25 -5.6 3.19 -0.25 -6.62
4 0 -7.24 -0.25 -0.4 -8.65 -0.25 -1.61 -2.52 -0.25 -1.61 -3.98 -0.25 -0.4
4 0 6.56 -0.25 6.93 7.63 -0.25 5.91 7.63 -0.25 10.38 6.56 -0.25 9.25
4 0 6.56 -0.25 9.25 7.63 -0.25 10.38 -8.65 -0.25 10.38 -7.24 -0.25 9.25
4 0 -7.24 -0.25 9.25 -8.65 -0.25 10.38 -8.65 -0.25 -1.61 -7.24 -0.25 -0.4
4 0 1.99 -0.25 -5.6 -2.52 -0.25 -5.58 -3.82 -0.25 -6.61 3.19 -0.25 -6.62
4 0 -8.65 -0.25 -7.72 -7.06 -0.25 -7.37 -7.06 -0.25 -4.55 -8.65 -0.25 -3.35
4 0 -7.06 -0.25 -7.37 -8.65 -0.25 -7.72 -5.3 -0.25 -10.3 -4.68 -0.25 -8.99
4 0 -2.52 -0.25 -5.58 -2.51 -0.25 -3.35 -3.82 -0.25 -4.55 -3.82 -0.25 -6.61
4 0 -2.51 -0.25 -3.35 -8.65 -0.25 -3.35 -7.06 -0.25 -4.55 -3.82 -0.25 -4.55
0 // Red
3 4 -13 -0.25 10.5 -8.65 -0.25 -1.61 -8.65 -0.25 10.38
4 4 -13 -0.25 -10.5 -8.65 -0.25 -3.35 -8.65 -0.25 -1.61 -13 -0.25 10.5
3 4 -8.65 -0.25 -3.35 -13 -0.25 -10.5 -8.65 -0.25 -7.72
4 4 1.99 -0.25 -0.6 -2.52 -0.25 -1.61 -2.51 -0.25 -3.35 1.99 -0.25 -5.6
3 4 -2.51 -0.25 -3.35 -2.52 -0.25 -5.58 1.99 -0.25 -5.6
4 4 -10.5 -0.25 13 -13 -0.25 10.5 -8.65 -0.25 10.38 10.5 -0.25 13
4 4 -10.5 -0.25 -13 -5.3 -0.25 -10.3 -8.65 -0.25 -7.72 -13 -0.25 -10.5
3 4 7.63 -0.25 5.91 7.79 -0.25 1.51 13 -0.25 -10.5
4 4 13 -0.25 10.5 7.63 -0.25 10.38 7.63 -0.25 5.91 13 -0.25 -10.5
4 4 10.5 -0.25 13 -8.65 -0.25 10.38 7.63 -0.25 10.38 13 -0.25 10.5
4 4 10.5 -0.25 -13 4.44 -0.25 -10.29 -5.3 -0.25 -10.3 -10.5 -0.25 -13
4 4 13 -0.25 -10.5 7.79 -0.25 -7.82 4.44 -0.25 -10.29 10.5 -0.25 -13
3 4 7.79 -0.25 1.51 7.79 -0.25 -7.82 13 -0.25 -10.5
3 4 -2.52 -0.25 -0.6 -2.52 -0.25 -1.61 1.99 -0.25 -0.6
4 4 -2.54 -0.25 5.91 -2.54 -0.25 4.09 4.53 -0.25 4.09 7.63 -0.25 5.91
3 4 7.63 -0.25 5.91 4.53 -0.25 4.09 7.79 -0.25 1.51
4 4 -8.65 -0.25 -1.61 -8.65 -0.25 -3.35 -2.51 -0.25 -3.35 -2.52 -0.25 -1.61
0 // Light grey
3 7 -18 -0.25 -15 -15 -0.25 -18 -15.5 -0.25 -15.5
3 7 -10.5 -0.25 -15.5 -15.5 -0.25 -15.5 -15 -0.25 -18
4 7 -15.5 -0.25 -10.5 -15.5 -0.25 10.5 -18 -0.25 15 -18 -0.25 -15
3 7 -15.5 -0.25 -10.5 -18 -0.25 -15 -15.5 -0.25 -15.5
4 7 10.5 -0.25 -15.5 -10.5 -0.25 -15.5 -15 -0.25 -18 15 -0.25 -18
3 7 -15 -0.25 18 -18 -0.25 15 -15.5 -0.25 15.5
3 7 18 -0.25 -15 15.5 -0.25 -15.5 15 -0.25 -18
3 7 15.5 -0.25 -15.5 10.5 -0.25 -15.5 15 -0.25 -18
3 7 15 -0.25 18 10.5 -0.25 15.5 15.5 -0.25 15.5
3 7 -15.5 -0.25 15.5 -18 -0.25 15 -15.5 -0.25 10.5
3 7 15 -0.25 18 15.5 -0.25 15.5 18 -0.25 15
4 7 10.5 -0.25 15.5 15 -0.25 18 -15 -0.25 18 -10.5 -0.25 15.5
3 7 -15 -0.25 18 -15.5 -0.25 15.5 -10.5 -0.25 15.5
0 // Yellow
3 14 3.9 -0.25 2.89 -3.98 -0.25 0.5 3.19 -0.25 0.49
4 14 6.48 -0.25 -7.34 6.49 -0.25 0.49 3.19 -0.25 -6.62 3.9 -0.25 -8.99
4 14 6.49 -0.25 0.49 3.9 -0.25 2.89 3.19 -0.25 0.49 3.19 -0.25 -6.62
4 14 -3.98 -0.25 2.89 -7.24 -0.25 -0.4 -3.98 -0.25 0.5 3.9 -0.25 2.89
4 14 6.56 -0.25 6.93 6.56 -0.25 9.25 -7.24 -0.25 9.25 -3.98 -0.25 6.93
4 14 -3.98 -0.25 6.93 -7.24 -0.25 9.25 -7.24 -0.25 -0.4 -3.98 -0.25 2.89
3 14 -3.98 -0.25 0.5 -7.24 -0.25 -0.4 -3.98 -0.25 -0.4
4 14 -13 -0.25 10.5 -15.5 -0.25 10.5 -15.5 -0.25 -10.5 -13 -0.25 -10.5
4 14 13 -0.25 -10.5 15.5 -0.25 -10.5 15.5 -0.25 10.5 13 -0.25 10.5
4 14 10.5 -0.25 -15.5 10.5 -0.25 -13 -10.5 -0.25 -13 -10.5 -0.25 -15.5
4 14 10.5 -0.25 13 10.5 -0.25 15.5 -10.5 -0.25 15.5 -10.5 -0.25 13
4 14 3.9 -0.25 -8.99 3.19 -0.25 -6.62 -3.82 -0.25 -6.61 -4.68 -0.25 -8.99
4 14 -7.06 -0.25 -7.37 -4.68 -0.25 -8.99 -3.82 -0.25 -6.61 -7.06 -0.25 -4.55
3 14 -3.82 -0.25 -4.55 -7.06 -0.25 -4.55 -3.82 -0.25 -6.61
3 7 18 -.25 15 15.5 -.25 15.5 15.5 -.25 10.5
4 7 15.5 -.25 10.5 15.5 -.25 -10.5 18 -.25 -15 18 -.25 15
3 7 18 -.25 -15 15.5 -.25 -10.5 15.5 -.25 -15.5
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Voltron's number 5 sticker
Lots of unmatched edges, due to different numbers of decimals used to resize primitives.
Like here:
1 4 11 -0.25 11 3.33 0 0 0 0.25 0 0 0 3.33 48\1-4chrd.dat
1 14 11 -0.25 11 1.667833 0 0 0 0.25 0 0 0 1.66783 48\1-4ring2.dat
And then all the triangles and quads use 3 decimals.
First make sure the primitives use the same amount of decimals.
Then reduce the decimals on the tri/quads. 1 or 2 is enough on a "simple" pattern, like this.
Then use Unificator and snap vertices to subfiles.
Like here:
1 4 11 -0.25 11 3.33 0 0 0 0.25 0 0 0 3.33 48\1-4chrd.dat
1 14 11 -0.25 11 1.667833 0 0 0 0.25 0 0 0 1.66783 48\1-4ring2.dat
And then all the triangles and quads use 3 decimals.
First make sure the primitives use the same amount of decimals.
Then reduce the decimals on the tri/quads. 1 or 2 is enough on a "simple" pattern, like this.
Then use Unificator and snap vertices to subfiles.
Reduced the amount of decimal
Reduced the number of unmatched edges
Existing certification-votes were deleted.
Reduced the number of unmatched edges
Existing certification-votes were deleted.
Fixed a back face problem
Much better usage of decimals.
BFC error on all 4 corners.
A hidden quad inside all 4 corners.
Extreme amount of empty lines at file end.
BFC error on all 4 corners.
A hidden quad inside all 4 corners.
Extreme amount of empty lines at file end.
Fixed decimals and unmatched edges
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2021-01-14 21:40:01
I see no reason to use hi-res primitives on the corners.
Back to low res corners.
Existing certification-votes were deleted.
Existing certification-votes were deleted.
Remove hidden quad on all four corners.
Cant see BFC problem. I turned BFC on in ldview and LD Part Editor, and I see everthing green.
No more lines at the end of the file.
Cant see BFC problem. I turned BFC on in ldview and LD Part Editor, and I see everthing green.
No more lines at the end of the file.
2021-01-24 19:55:01
Fixed last line
Removed hiddden surfaces
Existing certification-votes were deleted.
Removed hiddden surfaces
Existing certification-votes were deleted.
2021-01-26 17:50:01
2021-02-15 22:30:02
Changed four stickers to use the same box.
Existing certification-votes were deleted.
Existing certification-votes were deleted.
[PTadmin]
edited the part header.
2021-02-23 06:10:01
* Line 93: file contains non-DOS line endings (1 total) - HOLD
4 14 -8.52 -0.25 -8.84 -5.57 -0.25 -10.85 -4.5 -0.25 -7.9 -8.52 -0.25 -5.35
* Missing grey area:
https://img.bricklink.com/ItemImage/PN/0/21311stk01.png
4 14 -8.52 -0.25 -8.84 -5.57 -0.25 -10.85 -4.5 -0.25 -7.9 -8.52 -0.25 -5.35
* Missing grey area:
https://img.bricklink.com/ItemImage/PN/0/21311stk01.png
* Fixed line end.
Existing certification-votes were deleted.
Existing certification-votes were deleted.
* Added grey part.
* Added gray area
Line 18: unknown or deprecated metacommand: // Pattern - HOLD
0 // Pattern
There are two blanks after the 0 instead of just one
This 18 -0.25 -10.8 looks rather odd
0 // Pattern
There are two blanks after the 0 instead of just one
This 18 -0.25 -10.8 looks rather odd
2021-11-02 20:15:01
2021-11-12 14:05:01
2021-11-30 22:45:02
[PTadmin]
edited the part header.
2022-03-05 14:15:01
2022-03-05 14:15:02
Added HISTORY line
2023-08-16 19:53:51
2023-08-25 01:30:53
Release 2023-04
