Official File parts/62791.dat
Part Attributes:
File Header:

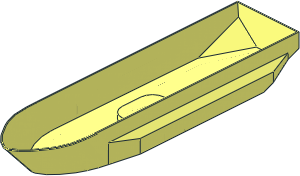

0 Boat Hull Floating 51 x 12 with Side Bulges
0 Name: 62791.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2019-11-18 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
Show contents
0 // Needs Work: usually invisible inside not modeled
0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\62791s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\62791s01.dat
1 16 0 91.1 -56.5 1 0 0 0 1 0 0 0 1 s\62791s02.dat
0 // Inner faces
4 16 -115.75 -.25 416 -112.375 -.25 412.625 112.375 -.25 412.625 115.75 -.25 416
4 16 -112.375 -.25 412.625 -40.125 108.5 412.625 40.125 108.5 412.625 112.375 -.25 412.625
4 16 -40.125 108.5 412.625 -109 108.5 259.125 109 108.5 259.125 40.125 108.5 412.625
3 16 -109 108.5 259.125 0 108.5 22.5 109 108.5 259.125
3 16 0 108.5 -135.5 -112.243 108.5 -280.424 112.243 108.5 -280.424
4 16 -112.243 108.5 -280.424 -111.705 108.5 -294.541 111.705 108.5 -294.541 112.243 108.5 -280.424
4 16 -111.705 108.5 -294.541 -107.402 108.5 -332.034 107.402 108.5 -332.034 111.705 108.5 -294.541
4 16 -107.402 108.5 -332.034 -93.841 108.5 -373.268 93.841 108.5 -373.268 107.402 108.5 -332.034
4 16 -93.841 108.5 -373.268 -77.72 108.5 -402.863 77.72 108.5 -402.863 93.841 108.5 -373.268
4 16 -77.72 108.5 -402.863 -54.982 108.5 -435.76 54.982 108.5 -435.76 77.72 108.5 -402.863
4 16 -54.982 108.5 -435.76 -30.032 108.5 -460.955 30.032 108.5 -460.955 54.982 108.5 -435.76
3 16 -30.032 108.5 -460.955 0 108.5 -473.859 30.032 108.5 -460.955
0 // Edges
2 24 -112.375 -.25 412.625 112.375 -.25 412.625
2 24 -42.098 108.5 411.275 42.098 108.5 411.275
2 24 0 108.5 -473.859 0 9.15 -565.193
2 24 0 9.15 -565.193 0 9.15 -570.33
0 // Outer faces
4 16 -115.75 -.25 416 115.75 -.25 416 43.5 115.1 416 -43.5 115.1 416
4 16 -43.5 115.1 416 43.5 115.1 416 31.032 115.1 381.737 -31.032 115.1 381.737
4 16 -31.032 115.1 381.737 31.032 115.1 381.737 31.032 112.5 381.737 -31.032 112.5 381.737
4 16 -31.032 112.5 381.737 31.032 112.5 381.737 81.451 112.5 239.499 -81.451 112.5 239.499
4 16 -81.451 112.5 239.499 81.451 112.5 239.499 82.68 112.5 113.553 -82.68 112.5 113.553
3 16 -82.68 112.5 113.553 82.68 112.5 113.553 0 112.5 18.5
3 16 0 112.5 -131.5 82.68 112.5 -282.191 -82.68 112.5 -282.191
4 16 -82.68 112.5 -282.191 82.68 112.5 -282.191 77.573 112.5 -310.788 -77.573 112.5 -310.788
4 16 -77.573 112.5 -310.788 77.573 112.5 -310.788 70.033 112.5 -340 -70.033 112.5 -340
4 16 -70.033 112.5 -340 70.033 112.5 -340 60.577 112.5 -366.774 -60.577 112.5 -366.774
4 16 -60.577 112.5 -366.774 60.577 112.5 -366.774 43.532 112.5 -399.987 -43.532 112.5 -399.987
4 16 -43.532 112.5 -399.987 43.532 112.5 -399.987 25.813 112.5 -424.598 -25.813 112.5 -424.598
4 16 -25.813 112.5 -424.598 25.813 112.5 -424.598 6.533 112.5 -439.126 -6.533 112.5 -439.126
3 16 -6.533 112.5 -439.126 6.533 112.5 -439.126 0 112.5 -439.929
0 // Edges
2 24 -115.75 -.25 416 115.75 -.25 416
2 24 -43.5 115.1 416 43.5 115.1 416
2 24 -31.032 115.1 381.737 31.032 115.1 381.737
2 24 -31.032 112.5 381.737 31.032 112.5 381.737
2 24 0 112.5 -439.929 0 115.1 -439.929
2 24 0 115.1 -474.842 0 9.15 -570.33
0 // End of clip
0 // Faces
4 16 7.875 91.1 -115.5 2.375 99.1 -115.5 2.5 102.65 -115.5 6.875 102.65 -115.5
4 16 7.875 91.1 -115.5 -7.875 91.1 -115.5 -2.375 99.1 -115.5 2.375 99.1 -115.5
4 16 -7.875 91.1 -115.5 -6.875 102.65 -115.5 -2.5 102.65 -115.5 -2.375 99.1 -115.5
0 // Edges
2 24 -7.875 91.1 -115.5 7.875 91.1 -115.5
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Hidden part not modeled.
Updated for changing in 62791s01 and 62791s02.
2023-09-03 15:37:22
2024-09-06 15:01:23
Header Edits
description:
Boat Hull Floating 51 x 12 with Side Bulges (Needs Work)
to
Boat Hull Floating 51 x 12 with Side Bulges
removed (Needs Work) notice
2024-09-19 22:07:34
2024-09-30 03:57:09
Release 2024-08
