File Detail parts/6436.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/6436.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

File Header:

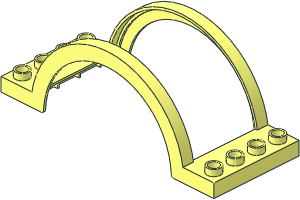

0 Duplo Arch  4 x 10 x  3 with  7 x  3 Cutout
0 Name: 6436.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Arch

0 !HISTORY 2022-10-15 [Holly-Wood] Added conds
0 !HISTORY 2024-05-29 [Holly-Wood] Added conds, closed gap
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6436s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\6436s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\6436s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\6436s01.dat

1 16 -180 0 20 1 0 0 0 2.75 0 0 0 1 stud7.dat
1 16 -180 0 60 1 0 0 0 2.75 0 0 0 1 stud7.dat
1 16 -180 0 -20 1 0 0 0 2.75 0 0 0 1 stud7.dat
1 16 -180 0 -60 1 0 0 0 2.75 0 0 0 1 stud7.dat
1 16 180 0 20 1 0 0 0 2.75 0 0 0 1 stud7.dat
1 16 180 0 60 1 0 0 0 2.75 0 0 0 1 stud7.dat
1 16 180 0 -20 1 0 0 0 2.75 0 0 0 1 stud7.dat
1 16 180 0 -60 1 0 0 0 2.75 0 0 0 1 stud7.dat

2 24 -137.6571 0 -60 -137.6571 0 60
4 16 -164 24 -2 -196 24 -2 -196 24 2 -164 24 2
4 16 -200 24 80 -196 24 2 -196 24 -2 -200 24 -80
4 16 -160 4 -76 -160 24 -76 -160 24 76 -160 4 76
4 16 -160 24 -76 -164 24 -2 -164 24 2 -160 24 76
1 16 -200 12 0 0 1 0 -12 0 0 0 0 80 rect2p.dat
2 24 -138.4522 4 -72 -138.4522 4 72
1 16 -170.86325 0 0 0 0 -29.13675 0 1 0 80 0 0 recte3.dat
4 16 -141.7265 0 60 -141.7265 0 -60 -137.6571 0 -60 -137.6571 0 60
1 16 -162 24 0 0 0 -38 0 -1 0 -80 0 0 recte3.dat
1 16 -142 24 0 0 0 -18 0 -1 0 -76 0 0 recte3.dat
1 16 -160 14 0 0 -1 0 0 0 -10 -76 0 0 recte3.dat
4 16 -138.4522 4 72 -137.6571 0 60 -137.6571 0 -60 -138.4522 4 -72
4 16 -141.726495 0 -60 -141.726495 0 60 -200 0 80 -200 0 -80
4 16 -138.4522 4 72 -138.4522 4 -72 -160 4 -76 -160 4 76
2 24 -141.726495 0 -60 -137.6571 0 -60
2 24 -141.726495 0 60 -137.6571 0 60

2 24 137.6571 0 -60 137.6571 0 60
4 16 196 24 2 196 24 -2 164 24 -2 164 24 2
4 16 196 24 -2 196 24 2 200 24 80 200 24 -80
4 16 160 24 76 160 24 -76 160 4 -76 160 4 76
4 16 164 24 2 164 24 -2 160 24 -76 160 24 76
1 16 200 12 0 0 -1 0 -12 0 0 0 0 80 rect2p.dat
2 24 138.4522 4 -72 138.5 4 72
1 16 170.86325 0 0 0 0 29.13675 0 1 0 80 0 0 recte3.dat
4 16 137.6571 0 -60 141.726495 0 -60 141.726495 0 60 137.6571 0 60
4 16 138.4522 4 -72 137.6571 0 -60 137.6571 0 60 138.4522 4 72

1 16 162 24 0 0 0 38 0 -1 0 -80 0 0 recte3.dat
1 16 142 24 0 0 0 18 0 -1 0 -76 0 0 recte3.dat
1 16 160 14 0 0 -1 0 0 0 -10 -76 0 0 recte3.dat
4 16 200 0 80 141.726495 0 60 141.726495 0 -60 200 0 -80
4 16 160 4 -76 138.4522 4 -72 138.4522 4 72 160 4 76
2 24 141.726495 0 -60 137.6571 0 -60
2 24 141.726495 0 60 137.6571 0 60

5 24 0 -110 -71 0 -110 -76 12 -109.2092 -76 -12 -109.2092 -76
5 24 0 -114 76 0 -114 68 -9 -113.4069 68 9 -113.4069 68
5 24 0 -114 -76 0 -114 -68 -9 -113.4069 -68 9 -113.4069 -68
5 24 0 -110 68 0 -110 71 12 -109.2092 71 -12 -109.2092 71
5 24 0 -110 -68 0 -110 -71 12 -109.2092 -71 -12 -109.2092 -71
5 24 0 -110 71 0 -110 76 -12 -109.2092 76 12 -109.2092 76

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2020-10-16 09:45:02

This still needs a bit of work to add the dimples where the transparent plastic will be fixed.

The more I look at the picture, the more I think that the small lip at the top of the arch is not like I modeled it. It would not be possible IMHO to mould it, so I guess the transparent part may also have a cutout there... difficult to judge from pics only, but it should do for now.

Here's the picture from below
https://s3.us-west-1.wasabisys.com/ebayassets/items_images/253559812497/$_1.JPG_5aded6d9bd1975.22699830.jpg

Magnus Forsberg [MagFors]

posted a vote of Hold.

2020-11-05 18:00:03

Missing some edge lines inside the cavity for the glass part.
Some here, and some in the subpart.

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2021-08-08 22:05:02

added missing edge lines

Existing certification-votes were deleted.

Magnus Forsberg [MagFors]

posted a vote of Hold.

2021-08-31 21:40:01

Missing some condlines
2 4 0 -110 -76 0 -110 -71
2 4 0 -110 -71 0 -110 -68
2 4 0 -110 68 0 -110 71
2 4 0 -110 71 0 -110 76

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2021-12-12 20:45:01

* Missing also this cond:

5 24 0 -114 -68 0 -114 -72 -12 -113.2092 -72 12 -113.2092 -72

Willy Tschager [Holly-Wood]

submitted a new version of the part.

2022-10-15 08:40:01

Added conds

Existing certification-votes were deleted.

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2023-09-05 13:30:29

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2024-05-29 16:07:23

* Missing conds:

5 24 0 -110 -71 0 -110 -76 12 -109.2092 -76 -12 -109.2092 -76
5 24 0 -114 76 0 -114 68 -9 -113.4069 68 9 -113.4069 68
5 24 0 -114 -76 0 -114 -68 -9 -113.4069 -68 9 -113.4069 -68
5 24 0 -110 68 0 -110 71 12 -109.2092 71 -12 -109.2092 71
5 24 0 -110 -68 0 -110 -71 12 -109.2092 -71 -12 -109.2092 -71
5 24 0 -110 71 0 -110 76 -12 -109.2092 76 12 -109.2092 76

* Gap:

2 4 138.4522 4 72 137.6571 0 60
2 4 137.6571 0 60 138.5 4 72

Willy Tschager [Holly-Wood]

submitted a new version of the part.

2024-05-29 16:18:24

* Added conds, closed gap, added history

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2024-08-28 14:34:28

Philippe Hurbain [Philo]

posted a vote of Certify.

2024-08-29 19:08:09

Orion Pobursky [OrionP]

posted a vote of Admin Review.
